Taste The Fine Art Mini PC by Partaker

Partaker B6 Mini PC 2955U i3 4020Y Pentium 3755U 3215U ProcessorLow power New Barebone Win 10 Cheap x86 Linux Intel Core i3 4020Y Processor 12V Ultra Fanless Mini Pc

Type: Mini PC
Processor Graphics: Intel HD Graphics
USB: 4*USB 3.0 port; 2* USB 2.0 port
Feature: Fanless System 0.00 dB
Wireless: 300MB Wifi with 2 Antennas
Operating System: Windows 7, 8 & XP Pro, Linux

  • $row.goods_name
  • $row.goods_name
  • $row.goods_name
  • $row.goods_name
Send Email Buying Links








This mini pc motherboard can install 4 types of processors:



1. Intel Celeron Processor  2955U (2M Cache, 1.40GHz) TDP 15W Intel HD Graphics
2. Intel Celeron Processor 3755U (2M Cache, 1.70GHz) TDP 15W Intel HD Graphics
3. Intel Celeron Processor 3215U (2M Cache, 1.70GHz) TDP 15W Intel HD Graphics
4. Intel Core Processor i3 4020Y (3M Cache, 1.50Ghz) TPD 11.5W Intel HD Graphics 4200




  • Compact, fully functional,all the power and functionality of a desktop computer in a compact, stylish chassis,powered by intel core i3 4020y processor, ideal for industrial and commercial applications,work with any brand monitors. suit for multiple application,touch devices, industries, car repair shops, security, education, home as htpc, business, fanancial and projects



  • Windows 10 pro (64 bit)installed, set up is effortless and it's ready to run straight out of the box.allows you to install software, games, apps and enjoy video, music, photo,support most online games and pc games, like warcraft, counter-strike (cs), support some 3d games but this is integrated graphic not independent cards



  • Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: 0 noise,low consumption,very slim

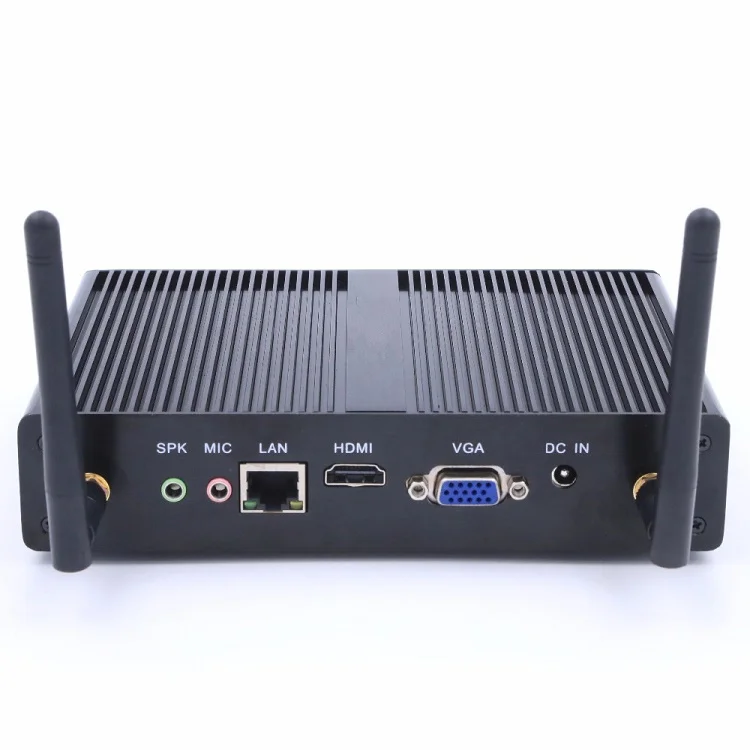

  • Designed with 1*VGA+ 1*HDMI+ 4*USB 3.0+2* USB2.0+ 1*LAN+ Spk+ Mic,industrial aesthetic design and reasonable interface layout. Support automatically power on after power failure



  • Size at 170*120*36mm, 1.5kgs,123a power supply, with power cord,all use big brand memory and ssd/hdd with quality assurance



Low power New Barebone Win 10 Cheap x86 Linux Intel Core i3 4020Y Processor 12V Ultra Fanless Mini Pc

Model Number: Partaker B6
Color: Black
Material: Aluminum
CPU: Intel Core i3-4020Y Processor (3M Cache, 1.50 GHz)
Graphics: Intel HD Graphics 4200
Memory: 1* SO-DIMM DDR3L 1333/1600, LPDDR3 1333/1600, max. 8GB RAM
Storage: 1* Msata SSD+1* 2.5 Inch HDD
Expansion: 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s+ 1 * MSATA SSD, 1 * WiFi module
Audio Cards: 6-channel sound with ALC892 chip
Network Card: RTL8168/8111/8112 PCI-E 10/100/1000 Gigabit Ethernet NIC
WiFi: With dual antennas, 802.11.b/g/n, Built-in module with external antennas for boosting signal
Bluetooth: Optional (Default without this function, please do need to leave us message on the order, thank you)
I/0 Port: 1*VGA+ 1*HDMI+ 4*USB 3.0+2* USB2.0+ 1*LAN+ Spk+ Mic
Power: DC100-240V AC/50-60Hz, DC 12V/3A
Operating Temperature: 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature: -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Mini PC Stand: Yes
Vesa Mount: Optional
Weight: 1.5kgs
Measurement: 170*120*36mm
Consumption: 15W
Motherboard Design: Fanless
Function: 1. Support diskless boot
2. Support power-on (Restore AC Power Loss)
3. Support RAID0
Warranty: 3 years
System Support: Windows 7/8/8.1/10,WES7/8,Linux Ubuntu,Vxworks etc;
System Default Option: Windows 10 pro as the default option;
ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system.
Linux ubuntu or other OS, Do need to leave us message on the order, thank you.



Onboard CPU

Broadwell 14nm CPU Intel core i3 4020Y 2 cores 4 threads 1.5GHz 3MB cache TDP 11.5W Intel HD Graphics

Motherboard

Intel SKYBAY (Intel Kaby Lake-ULT )

Memory Types

DDR3L 1333/1600MHz 1.35V Non-ECC laptop Memory
Support Max 8GB

Hard Disk

Support Intstall 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD

Integrated Graphics

Intel HD Graphics(depends on CPU)

BIOS

American Megatrends

Feature

MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST

Network Card

Realtek RTL 8168/8111/8112 1000 BaseT LAN (Gigabit Ethernet Controller)

Audio Card

ALC892
Intel Panther Point HDA

I/O Ports

? Power ON/OFF

? HDD LED+PW LED

? 4 x USB 3.0

? 2 x USB 2.0

? 1 × DC IN 12V/3-5A

? 1 × HDMI

? 1 × VGA

? 1 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive)

? 1 × MIC 3.5mm

? 1 × SPK 3.5mm

? 2 x WIFI antennas ports

Operating System

Support Windows 7/8/10, Linux, etc

RAM Capacity

2GB / 4GB / 8GB

SDD/HHD Capacity

32G/64G/128G/256G/512G mSATA SSD
500G/1TB 2.5" HDD/SSD

WiFi

With dual antenna,300M,802.11.b/g/n





Power Consumption

TDP 15W

Case Color

Black

Power

Input: AC100-240V AC/50-60Hz
Output: DC 12V/3-5A

Operating Temperature

-20-80℃

Storage Temperature

0℃-80℃

Relative Humidity

10%~90% (non-condensing)

Dimension

170X130X35 mm

Weight

0.6kg

Package Content

1x Mini PC
1x Power Adapter (Correct plug shipped based on buyer's country
1x WiFi Module
1x Desk bracket

1x SATA cables
