Overview
The F11 Firewall Appliance is a robust 1U chassis designed with high-quality galvanized steel, featuring a compact size and weighing 9kgs. Compatible with various Intel processors, it boasts 6 Intel I211AT Gigabit LAN ports and a rich expansion interface with PCIe and M.2 slots. This firewall appliance supports a broad system range, with robust cooling, making it suitable for diverse operating environments, from -10℃ to 50℃, offering reliable performance in demanding conditions.
Specifications
| Chassis | 1U standard chassis, high-quality galvanized steel |
| Colour | Iron gray |
| Size | 430MM*320MM*44.5MM |
| Weight | 9Kgs |
| Insallation Method | Desktop type/rack mounting |

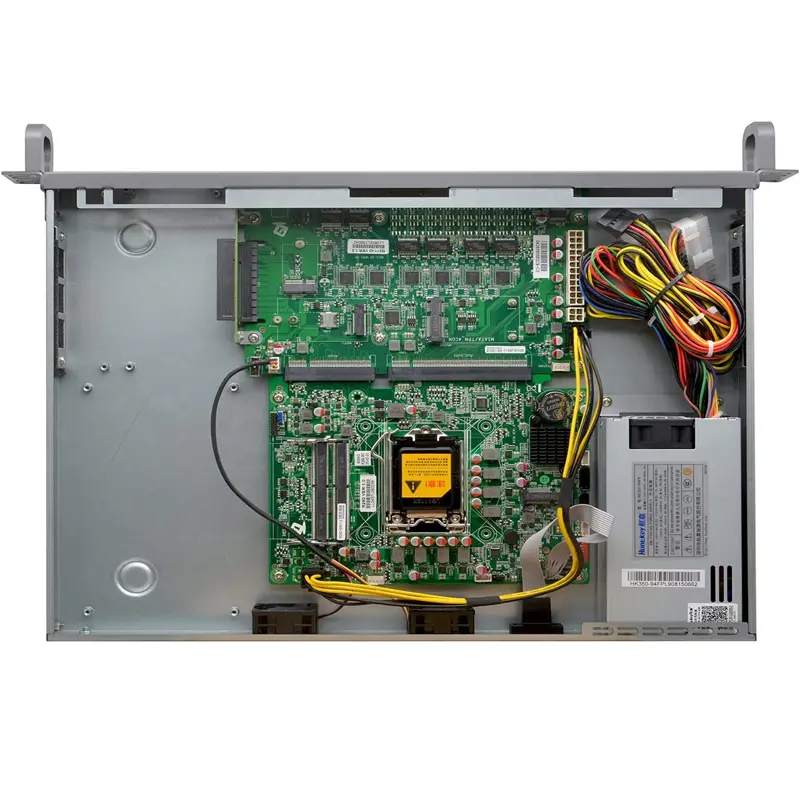

| CPU | Supports Intel® LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processors |
| Support Intel® Core i5 7300HQ Processor, 6M Cache, up to 3.50 GHz | |
| Support Intel® Core i7 6920HQ Processor, 8M Cache, up to 3.80 GHz | |
| Support Intel® LGA1155 I3 I5 I7 Processor | |
| Network Card | 6*Intel I211AT Gigabit electrical port, support Wake-on-LAN/PXE function, LAN1-4 BYPASS |
| Graphic | Integrated Intel HD Graphics core graphics card |
| Memory | 2 x DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 64GB |
| Storage | 1 x MSATA, transmission speed up to 6Gbps |
| 1 x 3.5 inch hard disk or 1*2.5 inch hard disk | |
| Display | 1 x VGA |
| Expand | 1*PCIE X8 slot, expandable Gigabit/10 Gigabit fiber card |
| 1*M.2 Key-E slot, support WiFi module | |
| 1*M.2/5G, Key-B, 2242/2252, support 5G (choose one with built-in USB2.0) | |
| 1*MINIPCIE slot, supports MSATA (TPM-4COM is optional, supports 4 strings, needs to flash | |
| 1*USB2.0, can be connected to dongle (choose one with M.2 5G) | |

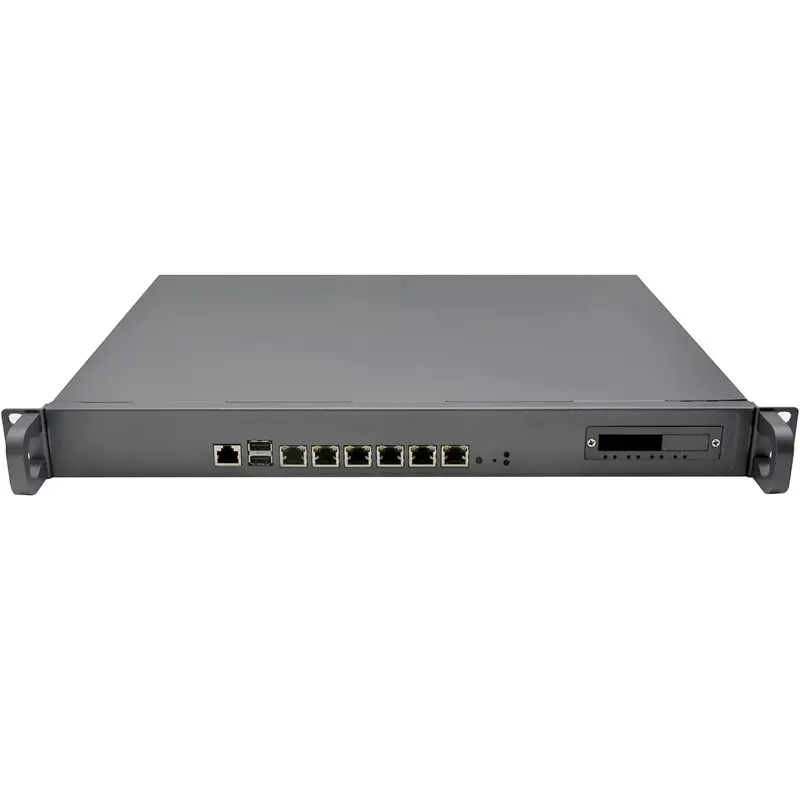

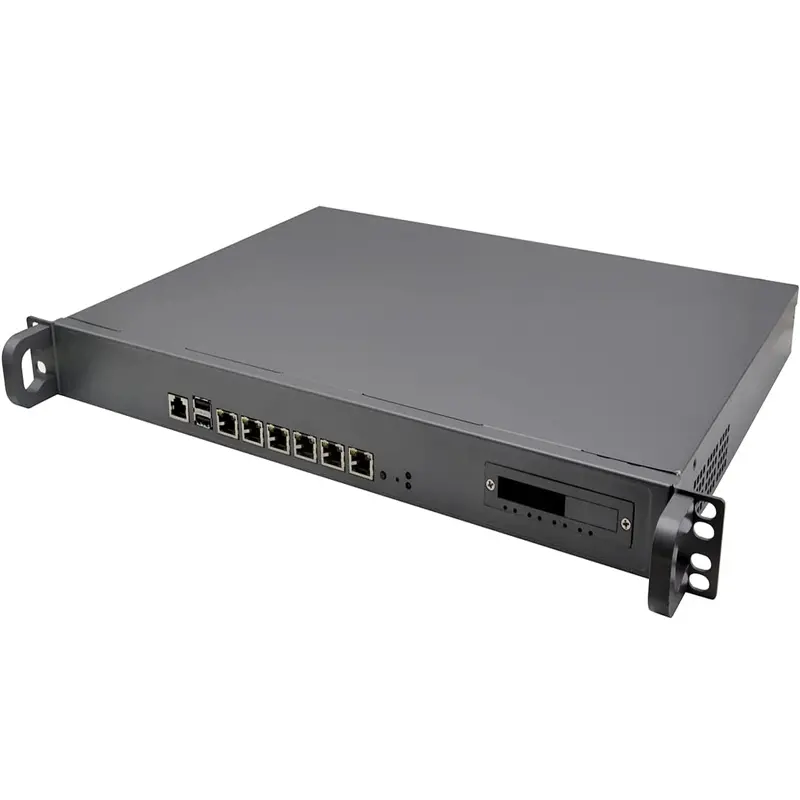

| Front Panel | 1 x Power switch, 1 x Restart switch |
| 6 x Intel I211AT Gigabit LAN | |
| 2/4 x Optical fiber | |
| 1 x RJ45 COM | |
| 1 x hard disk indicator light, 1 x power indicator light | |

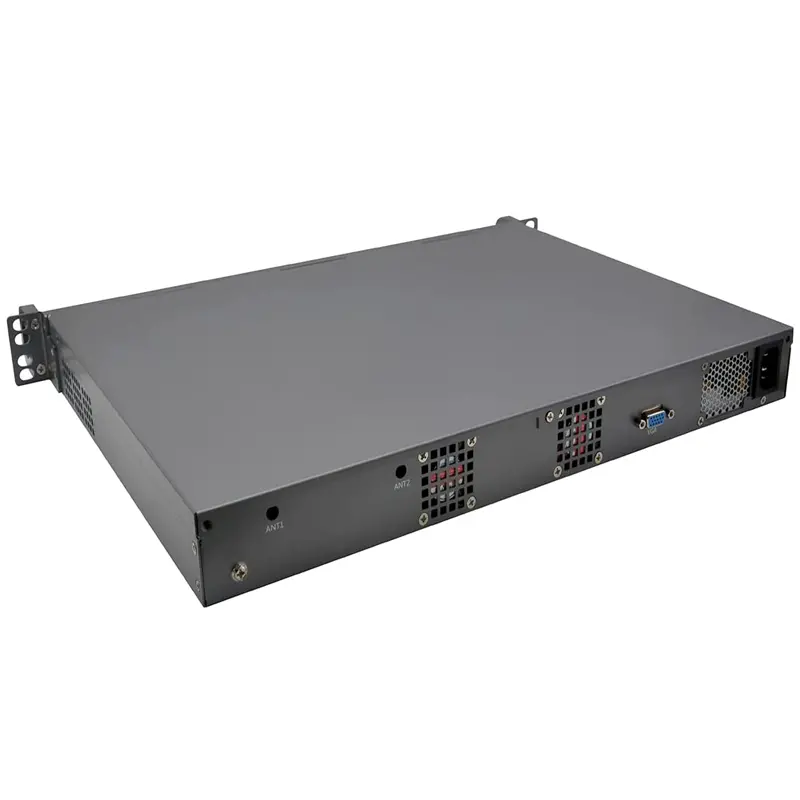

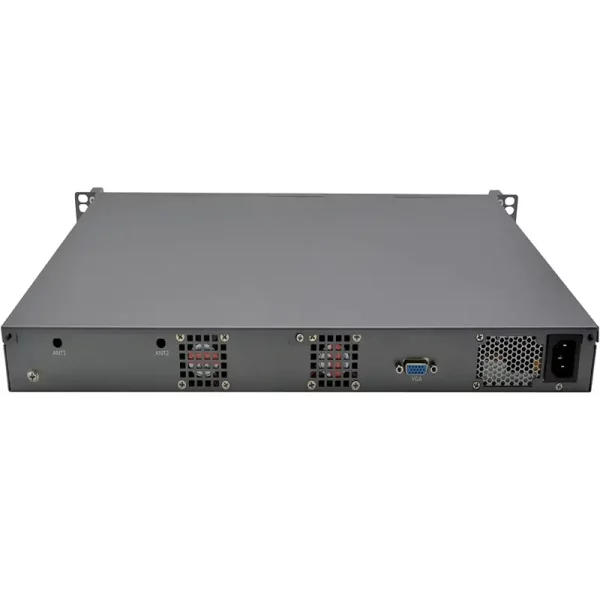

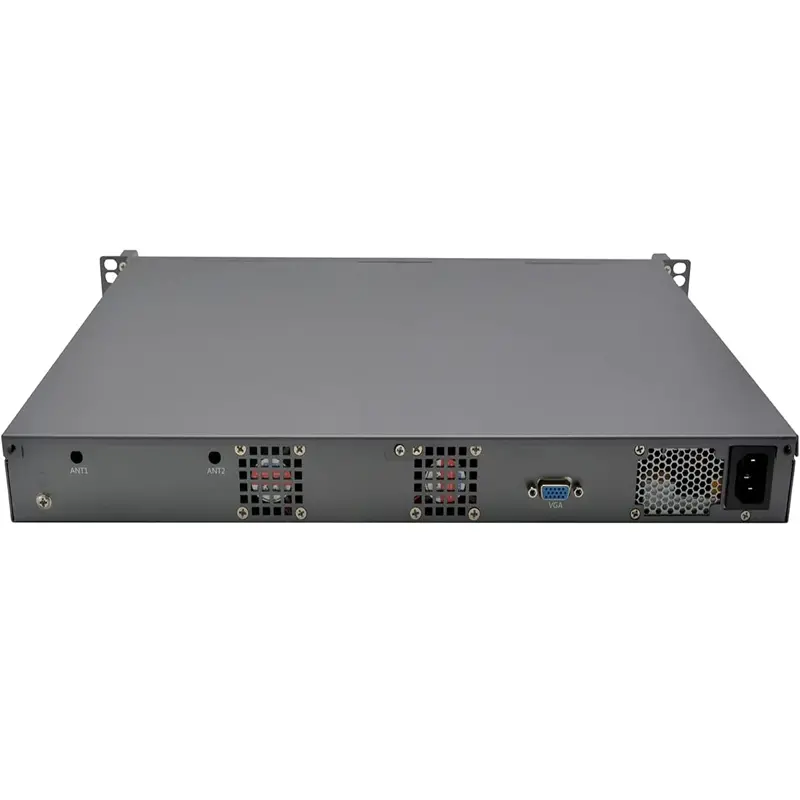

| Rear Panel | 1 x VGA |
| 1 x Power cord interface | |
| System Support | Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx |
| Cooling Mode | With Fan |
| Power Supply | Built-in ATX/1U power supply, AC 110-220V Standard 250W |
| Packing List | F11 Firewall Appliance, Power adapter, Power cord, Warranty card |
| Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5%-95% relative humidity, non-condensing |
| Work vibration | 0.5g rms/5-500HZ/random/operating |
