Overview

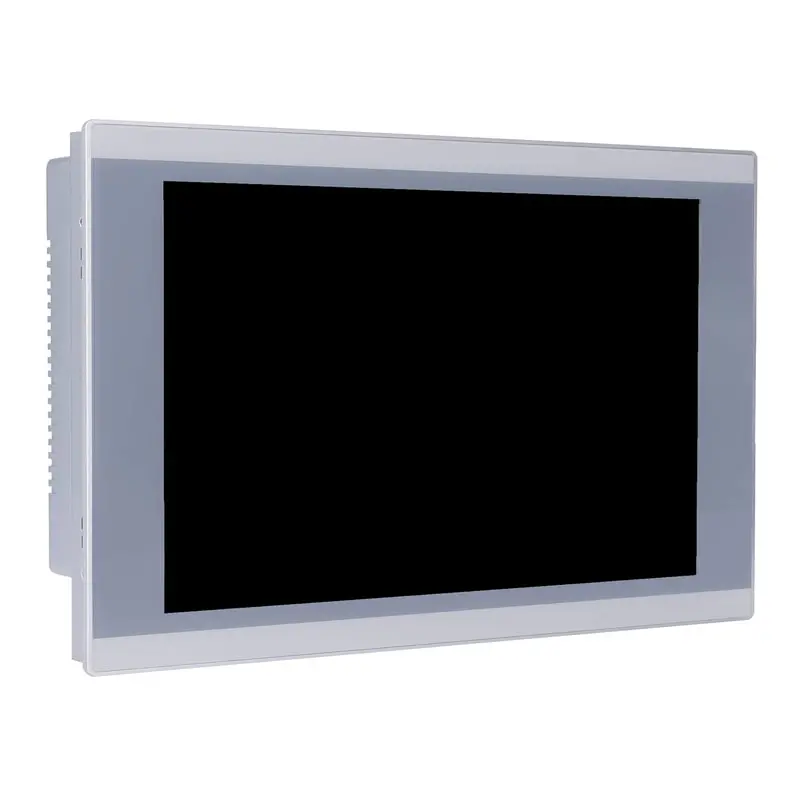

The A1 Panel PC stands out with its versatile CPU choices, including Intel Celeron J1900, Core i3/i5/i7, and more. Its rugged build, IP65 front panel protection, and fanless operation ensure reliable performance. With support for Windows and Linux, this PC suits various applications.
Specifications
| Material | Aluminum alloy |
| Model | A1 PA-121TPC-CE6B |
| Opening Hole | 301 x 229mm |
| Size | 306.8 x 235.12 x 54.5mm |
| Weight | 4Kgs |
| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
| Intel Core I5 Gen. 3th CPU, ship one of them | |
| Intel Core I3 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 11th CPU, ship one of them | |
| Intel Core I7 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 11th CPU, ship one of them | |
| Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz) | |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x 10/100/1000 Mbps Ethernet |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM |
| 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412) | |
| Storage | 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD |
| 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412) | |
| Expand | 1 x Mini PCIE slot for WiFi/4G, with sim slot |
| Touch Type | 10-point projected capacitive touch screen |
| Durability (Number of Touches) | 200 million times |
| Transmittance | 86±5% at 550 nm wavelength |
| Controller | USB interface |

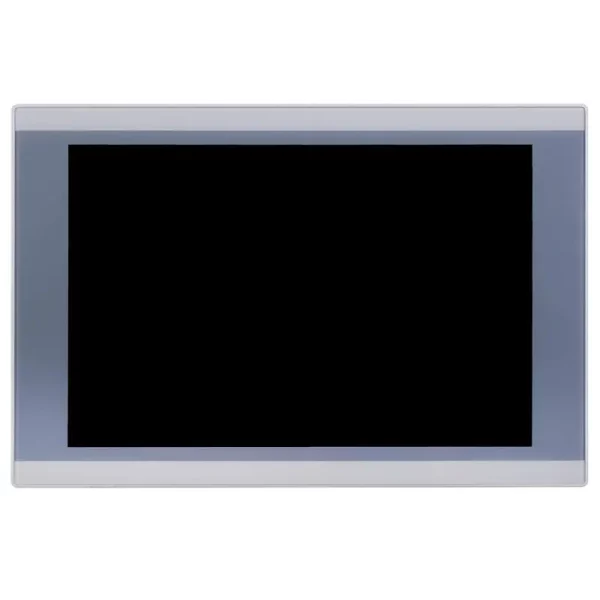

| Display Type | 12.1″ TFT LED panel |
| Resolution | 1024 x 768 |
| Perspective | 80(L), 80(R), 80(T), 80(B) |
| Brightness | 350cd/m2 |
| Contrast | 1000 |
| Backlight Life | 30,000 hours (min.) |

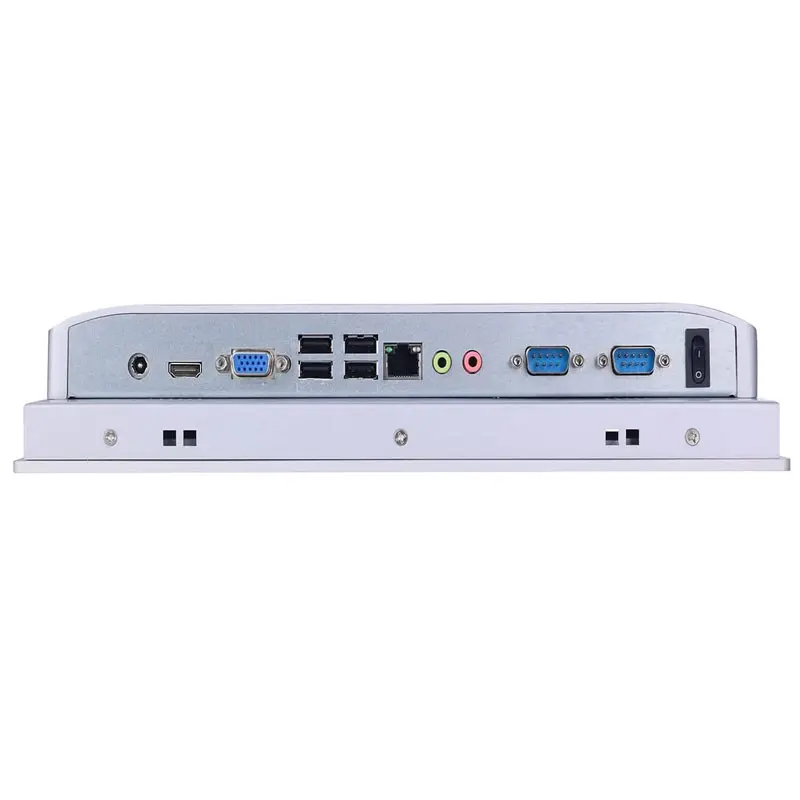

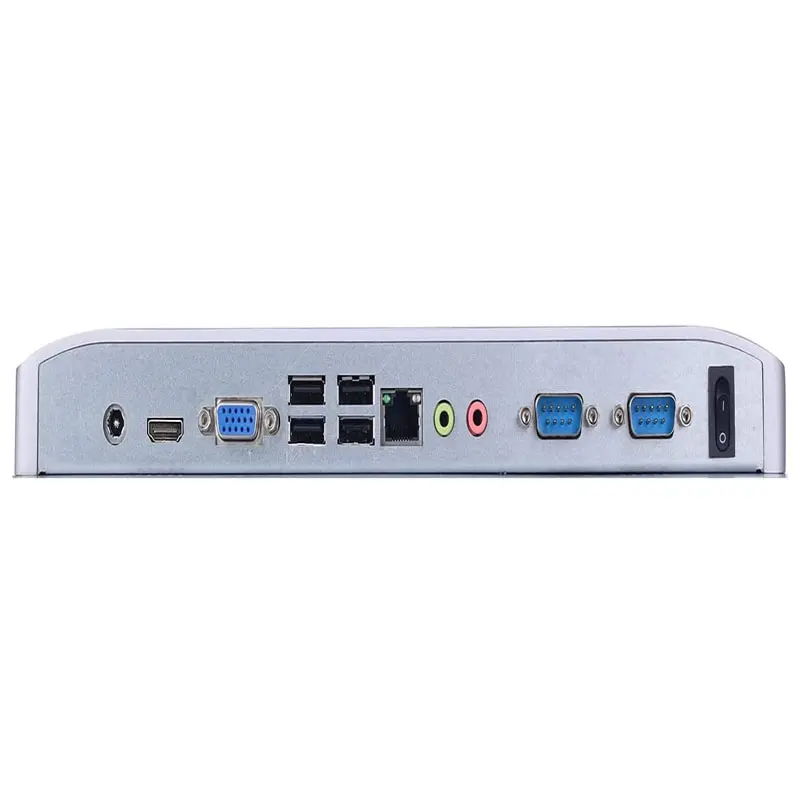

| J1900/3th I5/4th I3/4th I5/6th I5 | 1 x 12V DC |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x LAN | |
| 1 x AUDIO-IN&OUT | |
| 2 x COM | |
| 1 x POWER_SW | |

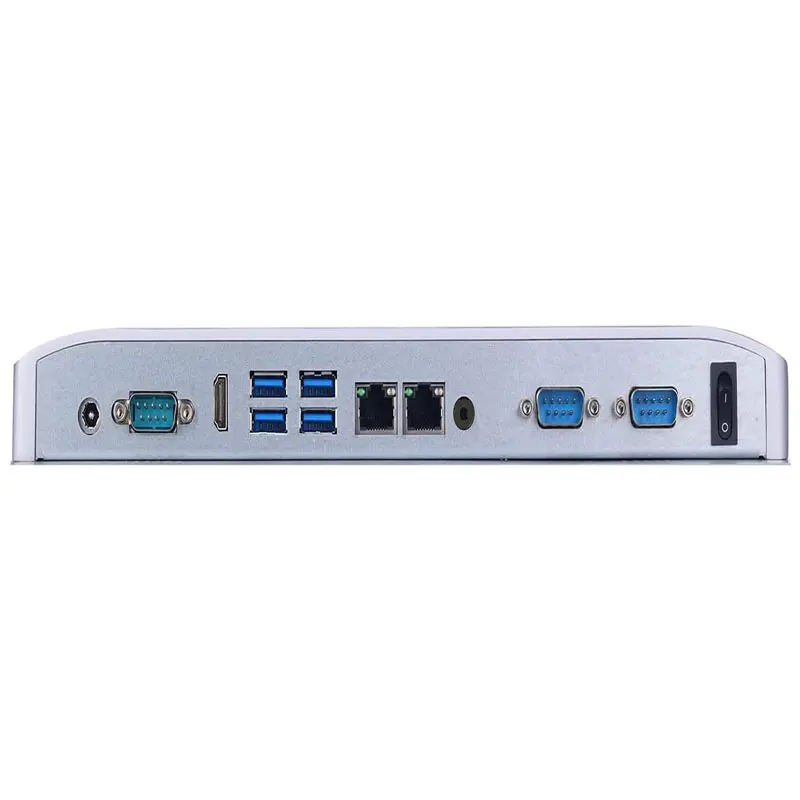

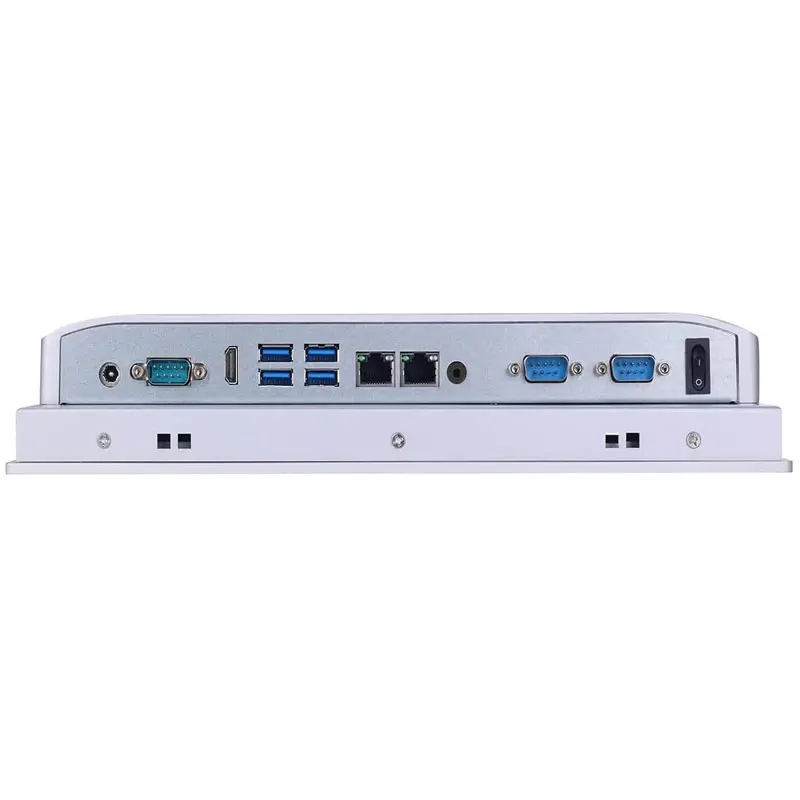

| J6412 | 1 x 12V DC |
| 3 x COM | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 2 x LAN | |
| 1 x AUDIO | |
| 1 x POWER_SW | |
| Bios | AMI BIOS |
| System Support | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit |
| Windows 10 32bit&64bit/WES7/Linux | |
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, 12V |
| Packing List | A1 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Operating Temperature | 0 ~ 50°C with SSD, 0 ~ 40°C with HDD |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 95% @ 40 ℃ without condensation |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
