Overview
The A10 PA-190TPC-CE6A, constructed with durable aluminum alloy, offers a versatile range of CPUs, from Intel Celeron to Core i7 Gen. 11th CPUs, providing outstanding CPU options. Its 19″ TFT LED panel, supported by a robust 10-point projected capacitive touch screen, exhibits 1280×1024 resolution, delivering sharp, high-contrast visuals. This model ensures comprehensive connectivity and storage flexibility, equipped with various ports and expandable storage options. The system supports Windows 7, 8.1, and 10, along with WES7 and Linux. Compliant with CE, FCC, and ROHS standards, it guarantees optimal performance in demanding environments, characterized by its IP65 front panel protection. This model is designed for embedded, wall-mounted, desktop, or cantilevered installations, complementing a wide array of applications. Operating temperature ranges from 0 to 50°C, accommodating SSD and HDD storage. Its durable, certified design, versatile CPU options, and comprehensive connectivity make it a robust and flexible solution for diverse industrial requirements.
Specifications
| Material | Aluminum alloy |
| Model | A10 PA-190TPC-CE6A |
| Opening Hole | 422 x 346mm |
| Size | 428 x 351.65 x 54.5mm |
| Weight | 8Kgs |
| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
| Intel Core I5 Gen. 3th CPU, ship one of them | |
| Intel Core I3 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 11th CPU, ship one of them | |
| Intel Core I7 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 11th CPU, ship one of them | |
| Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz) | |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x 10/100/1000 Mbps Ethernet |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM |
| 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412) | |
| Storage | 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD |
| 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412) | |
| Expand | 1 x Mini PCIE slot for WiFi/4G, with sim slot |
| Touch Type | 10-point projected capacitive touch screen |
| Durability (Number of Touches) | 200 million times |
| Transmittance | 86±5% at 550 nm wavelength |
| Controller | USB interface |

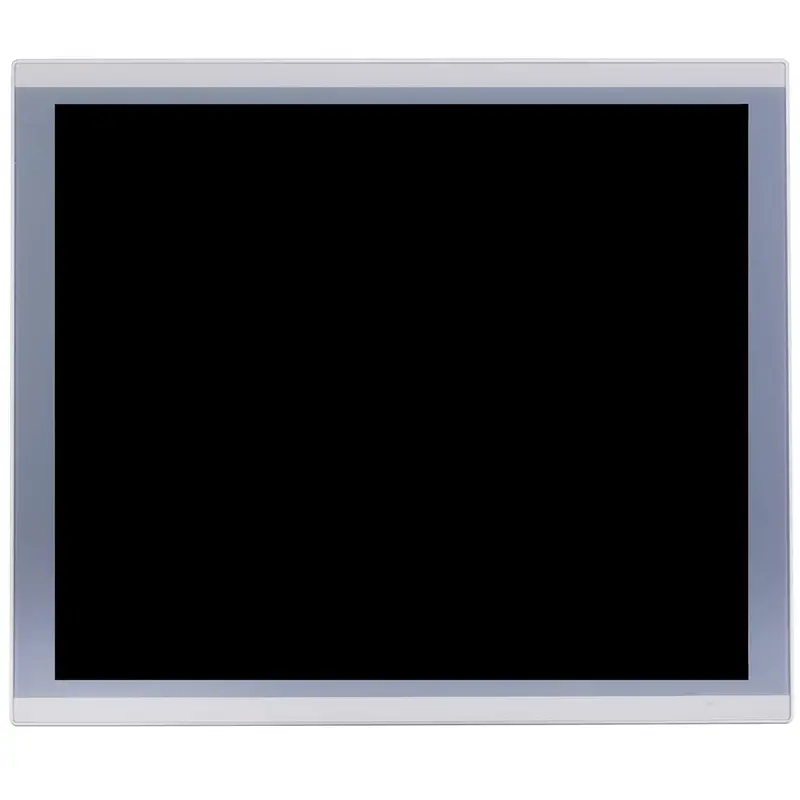

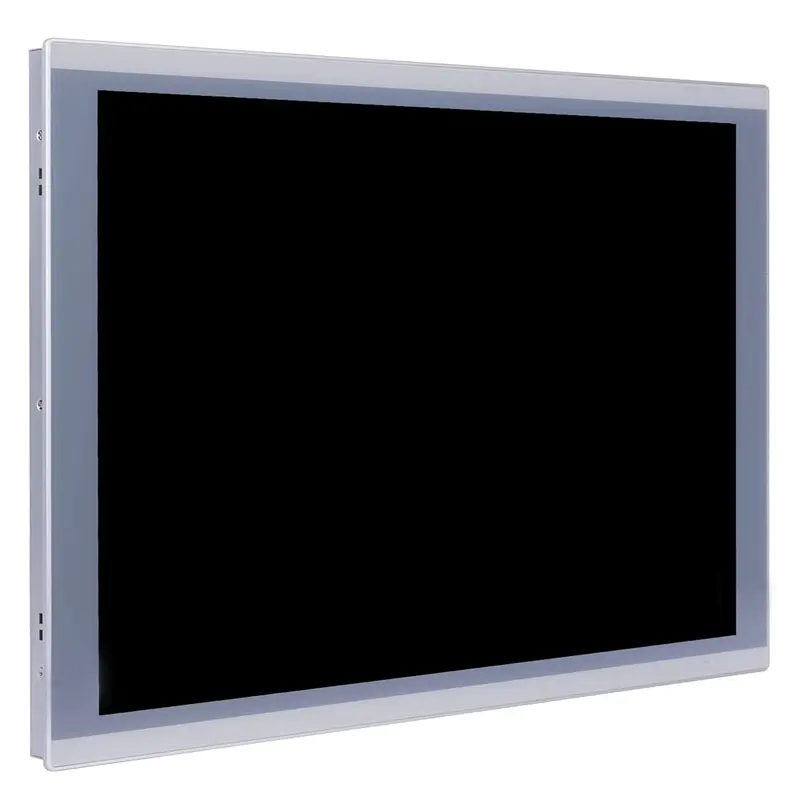

| Display Type | 19″ TFT LED panel |
| Resolution | 1280 x 1024 |
| Perspective | 80(L), 80(R), 60(T), 60(B) |
| Brightness | 250cd/m2 |
| Contrast | 1000 |
| Backlight Life | 30,000 hours (min.) |

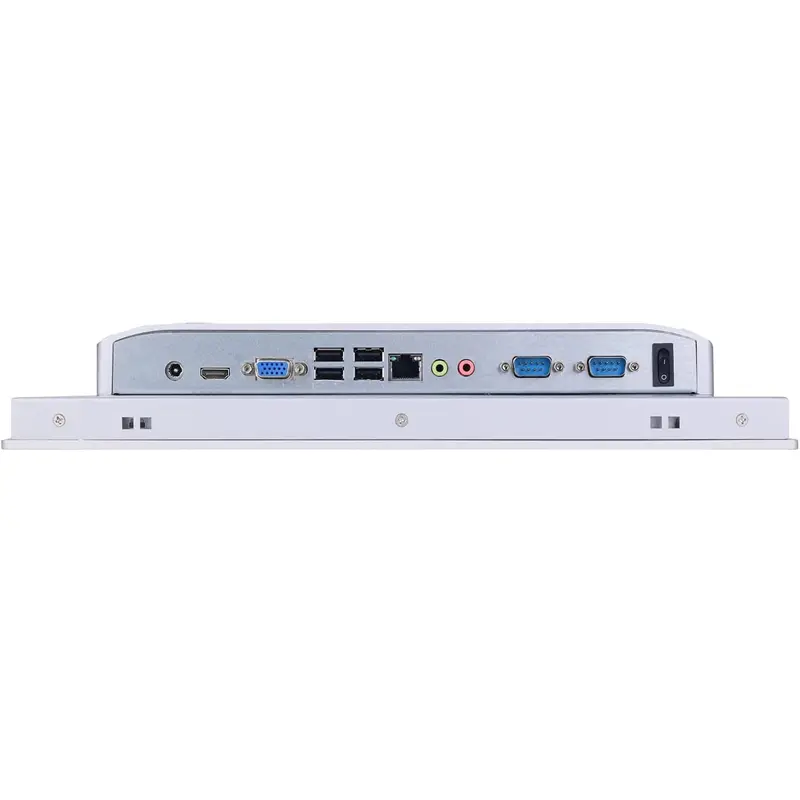

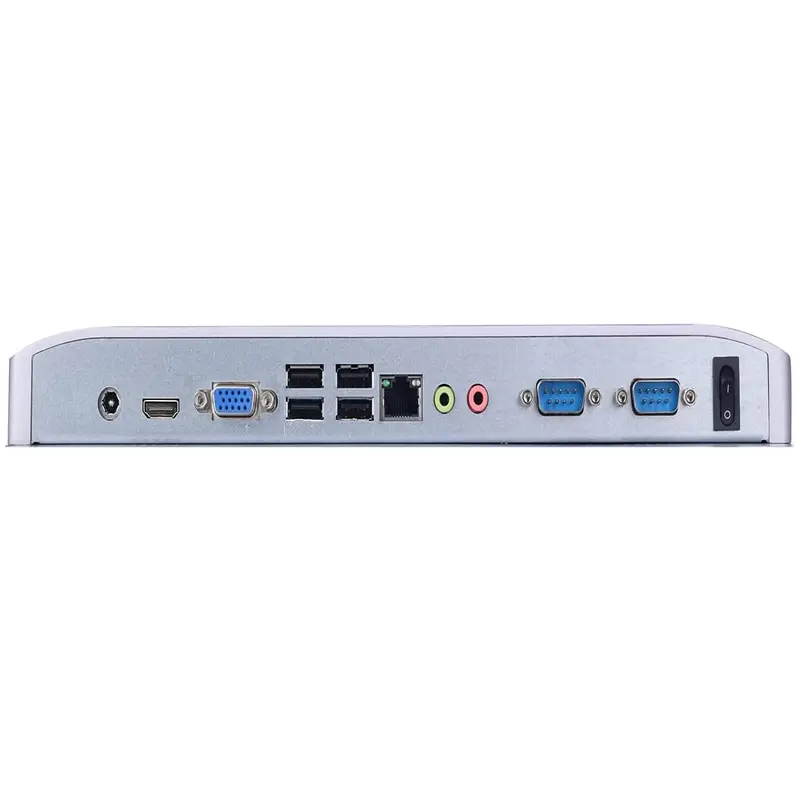

| J1900/3th I5/4th I3/4th I5/6th I5 | 1 x 12V DC |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x LAN | |
| 1 x AUDIO-IN&OUT | |
| 2 x COM | |
| 1 x POWER_SW | |

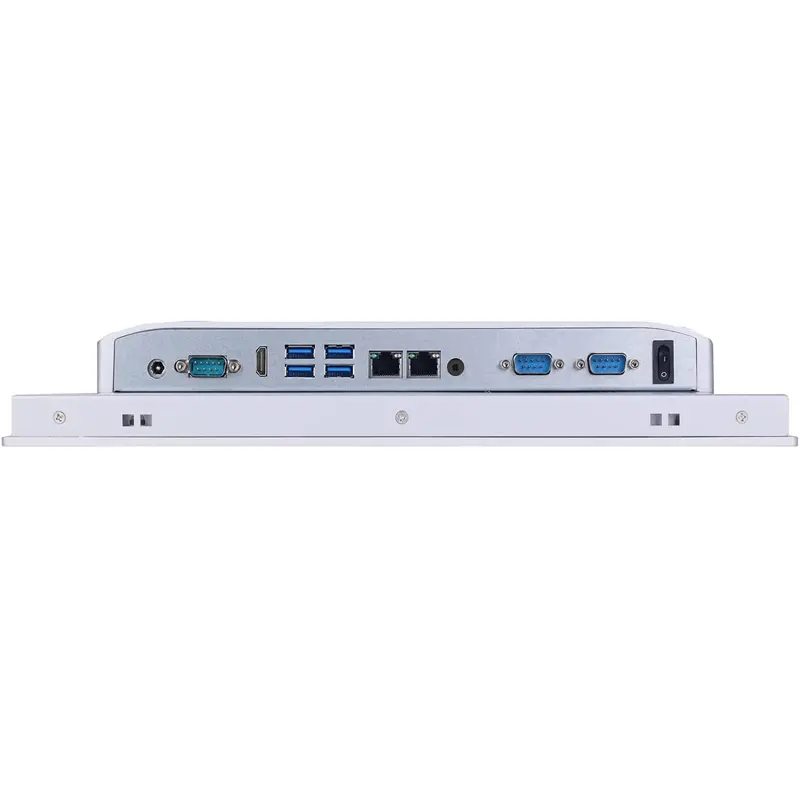

| J6412 | 1 x 12V DC |
| 3 x COM | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 2 x LAN | |
| 1 x AUDIO | |
| 1 x POWER_SW | |
| Bios | AMI BIOS |
| System Support | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit |
| Windows 10 32bit&64bit/WES7/Linux | |
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, 12V |
| Packing List | A10 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Operating Temperature | 0 ~ 50°C with SSD, 0 ~ 40°C with HDD |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 95% @ 40 ℃ without condensation |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
