Overview

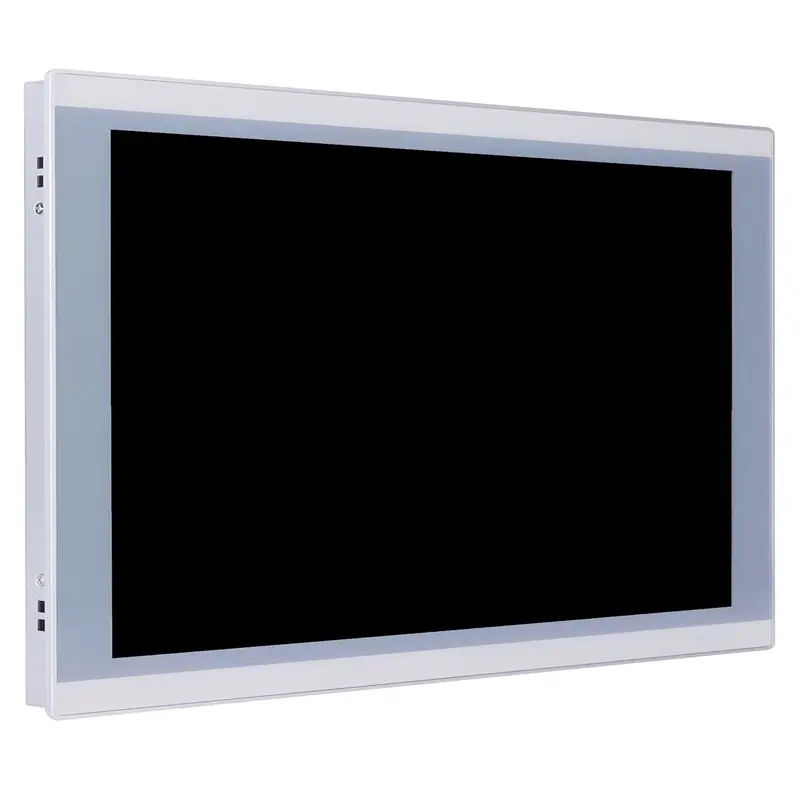

The A5 PA-150TPC-CE5A is a versatile industrial panel computer featuring a range of CPU options, durable aluminum alloy construction, and multiple installation methods. Equipped with a high temperature five-wire resistive touch screen, it is designed for demanding industrial applications. With reliable performance and various interfaces, it is suitable for a wide range of industrial needs. This panel PC provides IP65 protection and meets rigorous durability standards, making it an ideal choice for industrial environments. It offers flexible configuration options and compatibility with different Windows and Linux operating systems. The fanless cooling design ensures efficient heat dissipation. With a high-resolution display, the A5 panel PC is a reliable and robust solution for industrial computing requirements.
Specifications
| Material | Aluminum alloy |
| Model | A5 PA-150TPC-CE5A |
| Opening Hole | 348 x 272mm |
| Size | 354.3 x 278.3 x 54mm |
| Weight | 6Kgs |

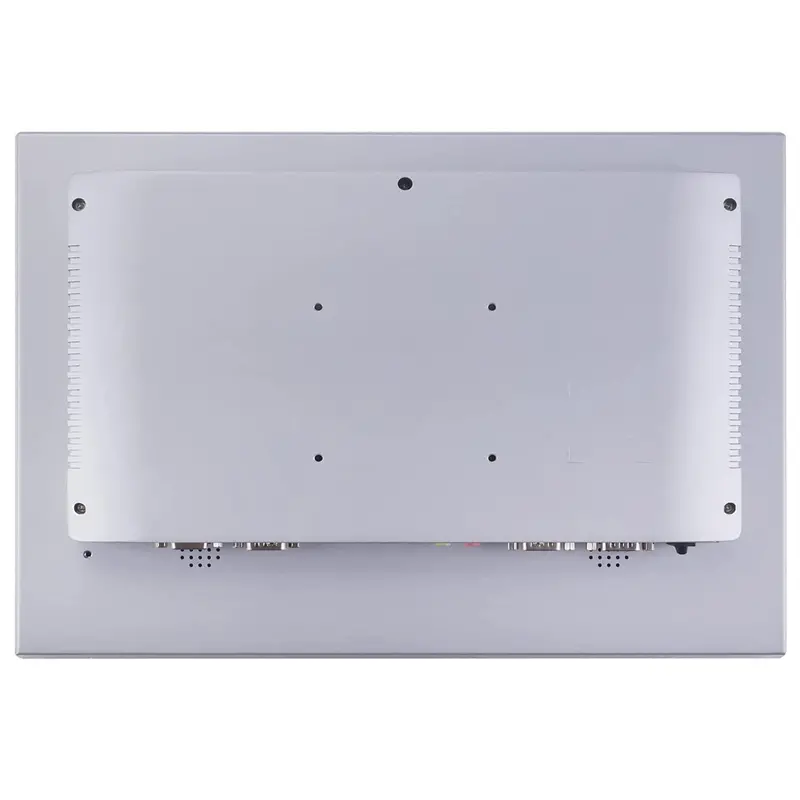

| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
| Intel Core I5 Gen. 3th CPU, ship one of them | |
| Intel Core I3 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 11th CPU, ship one of them | |
| Intel Core I7 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 11th CPU, ship one of them | |
| Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz) | |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x 10/100/1000 Mbps Ethernet |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM |
| 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412) | |
| Storage | 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD |
| 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412) | |
| Expand | 1 x Mini PCIE slot for WiFi/4G, with sim slot |
| Touch Type | High temperature five-wire resistive touch screen |
| Durability (Number of Touches) | ≧35 million times |
| Transmittance | 80±5% at 550 nm wavelength |
| Controller | USB interface |

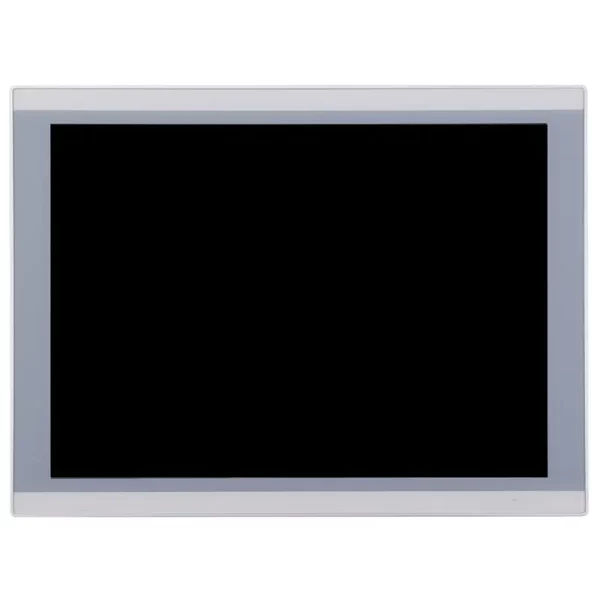

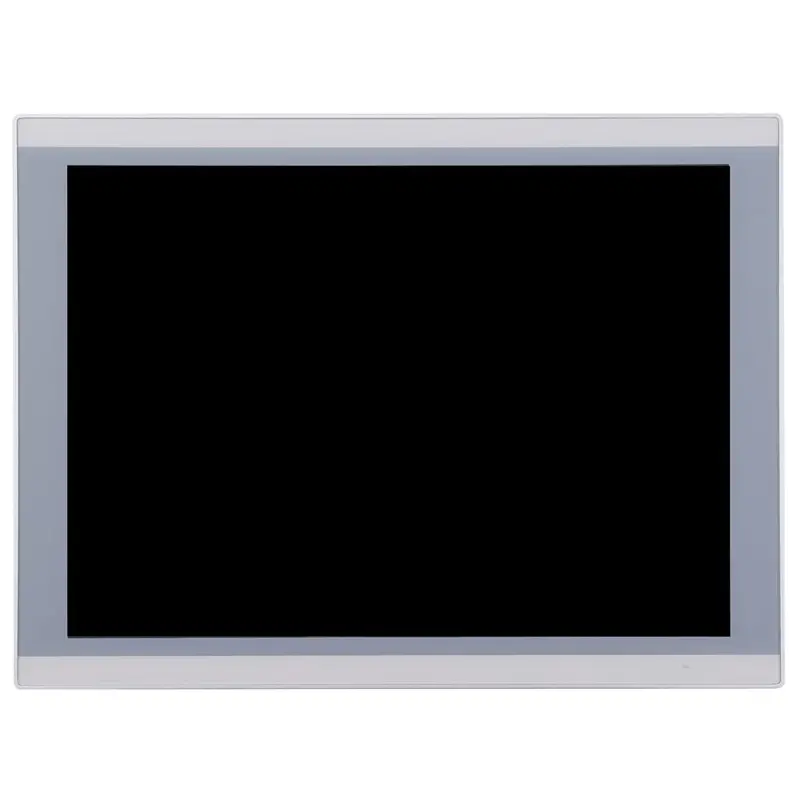

| Display Type | 15″ TFT LED panel |
| Resolution | 1024 x 768 |
| Perspective | 80(L), 80(R), 60(T), 60(B) |
| Brightness | 350cd/m2 |
| Contrast | 1000 |
| Backlight Life | 30,000 hours (min.) |

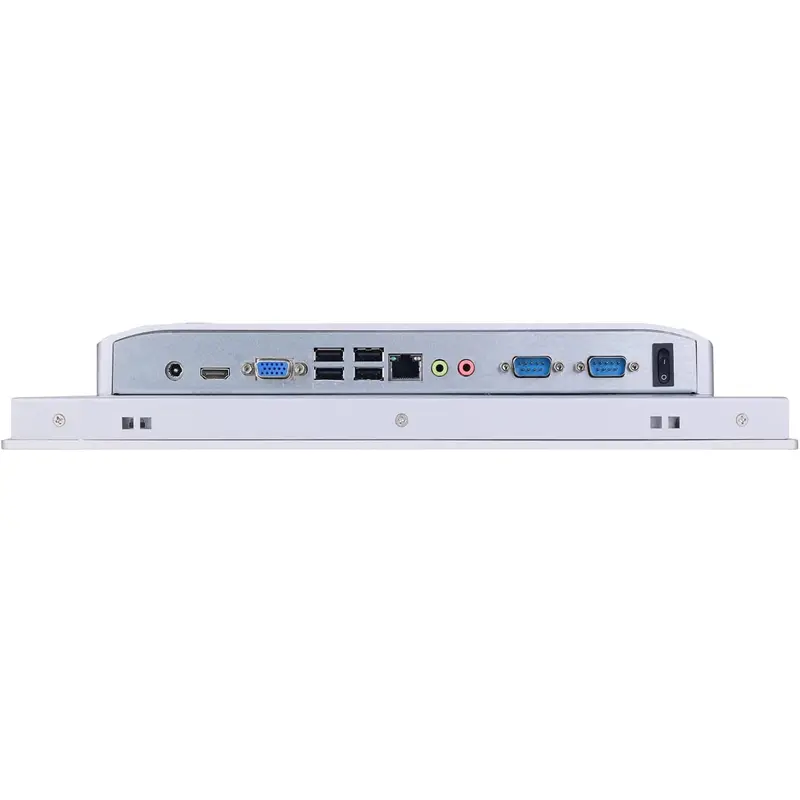

| J1900/3th I5/4th I3/4th I5/6th I5 | 1 x 12V DC |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x LAN | |
| 1 x AUDIO-IN&OUT | |
| 2 x COM | |
| 1 x POWER_SW | |

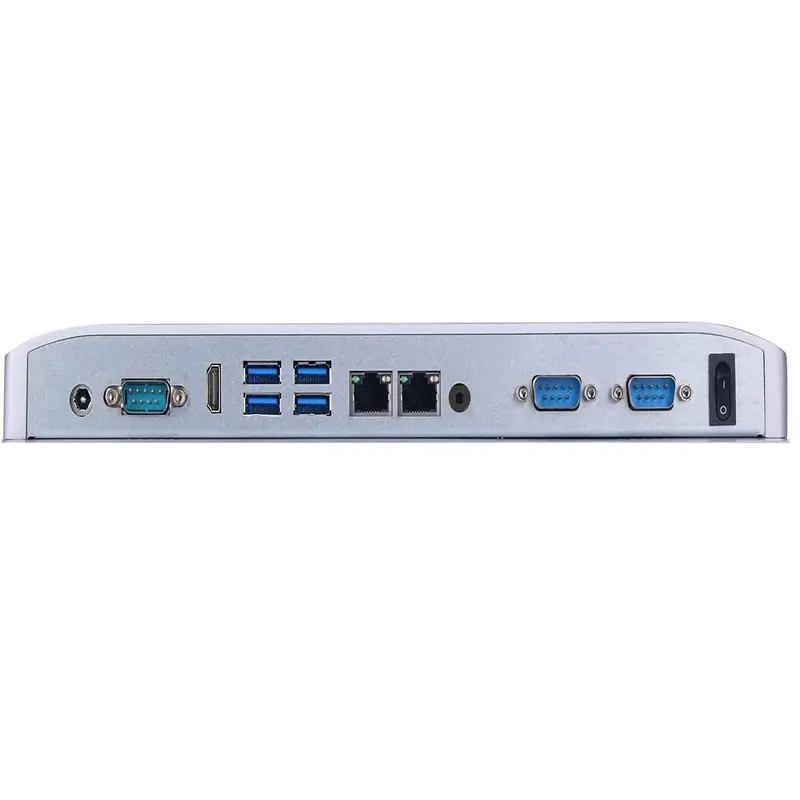

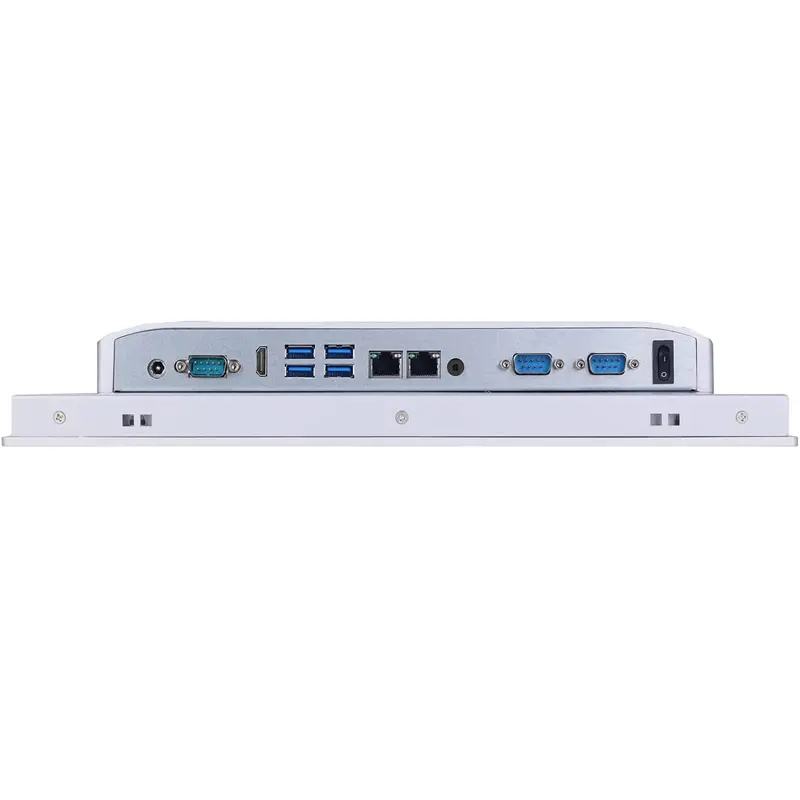

| J6412 | 1 x 12V DC |
| 3 x COM | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 2 x LAN | |
| 1 x AUDIO | |
| 1 x POWER_SW | |
| Bios | AMI BIOS |
| System Support | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit |
| Windows 10 32bit&64bit/WES7/Linux | |
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, 12V |
| Packing List | A5 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Operating Temperature | 0 ~ 50°C with SSD, 0 ~ 40°C with HDD |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 95% @ 40 ℃ without condensation |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
