Overview
The B3 mini PC is a fanless, zero-noise, compact computer that offers high performance and versatility. It features an Intel Core i3 or i5 processor, up to 8GB of DDR3L RAM, and dual HDMI ports for 4K display. It also supports WiFi, Bluetooth, and gigabit LAN for fast and stable connectivity. The B3 mini PC can run Windows 10, Linux Ubuntu, and other operating systems, making it suitable for various applications such as office, home theater, education, digital signage, and more. The B3 mini PC has a sleek aluminum alloy case, a desktop type or vesa mounting installation method, and a low power consumption of 12V3A/5A. It comes with a power supply, a power cord, a vertical stand, WiFi antennas, and a warranty card. The B3 mini PC is a reliable and durable device that can operate in temperatures from 0°C to 70°C and has CE FCC ROHS certification
Specifications
| Material | Aluminum alloy |
| Colour | Silver |
| Size | 170 x 120 x 36mm |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| CPU | Intel® Core™ i3-4020Y Processor (3M Cache, 1.50 GHz) |
| Intel® Core™ i5-4200Y Processor (3M Cache, up to 1.90 GHz) | |
| Chipset | SOC |
| Network Card | 1 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM |
| Storage | 1 x mSata SSD, 1 x 2.5 inch SSD/HDD |
| Expand | 1 x Mini PCIE (half size) WiFi slot |

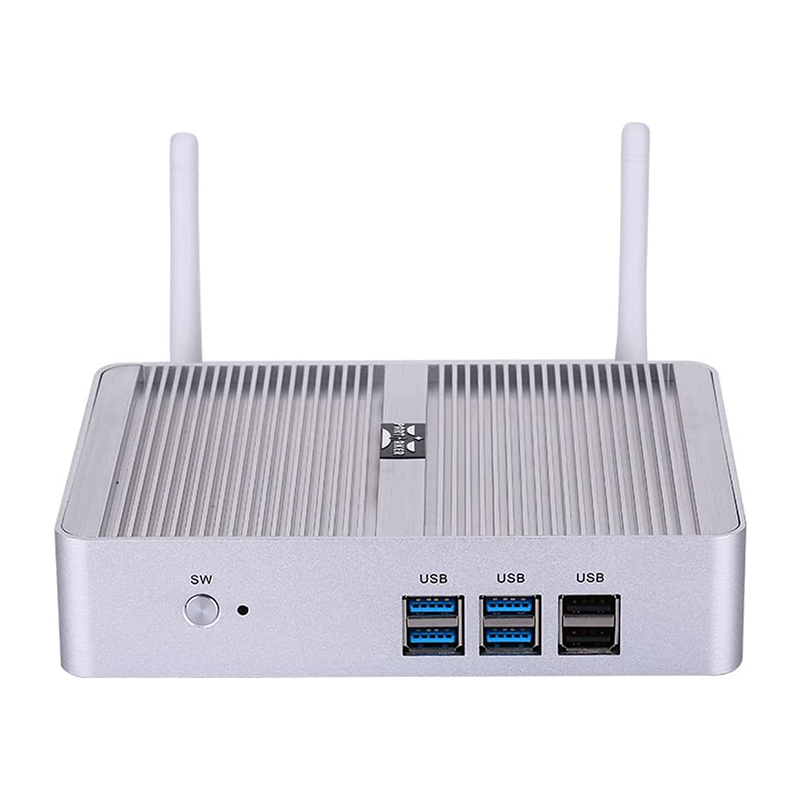

| Front Panel | 1 x Power button |
| 4 x USB3.0 | |
| 2 x USB2.0 | |

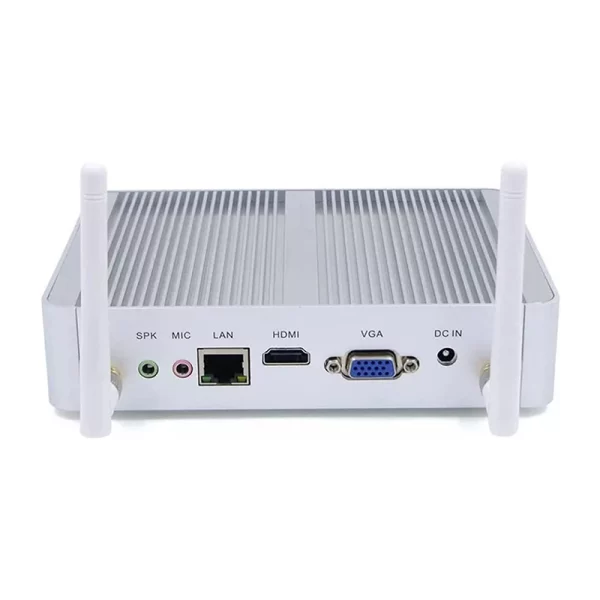

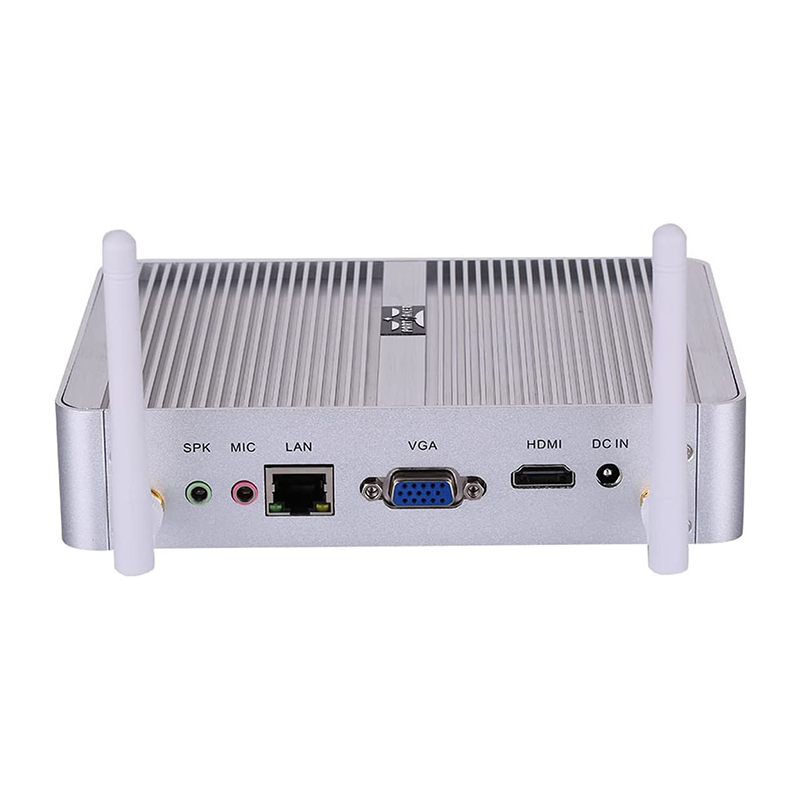

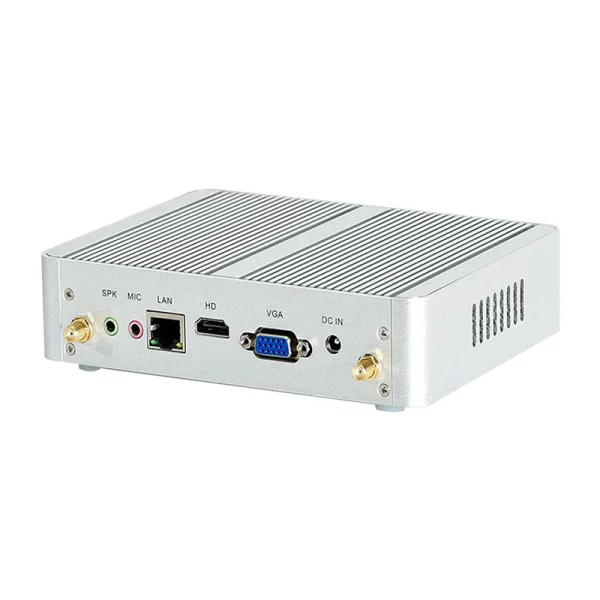

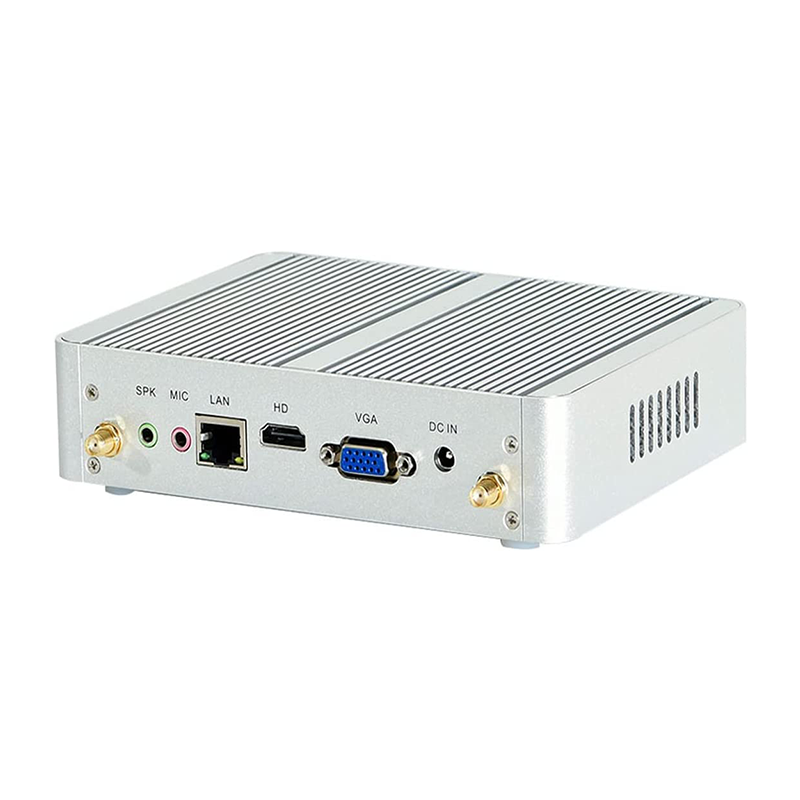

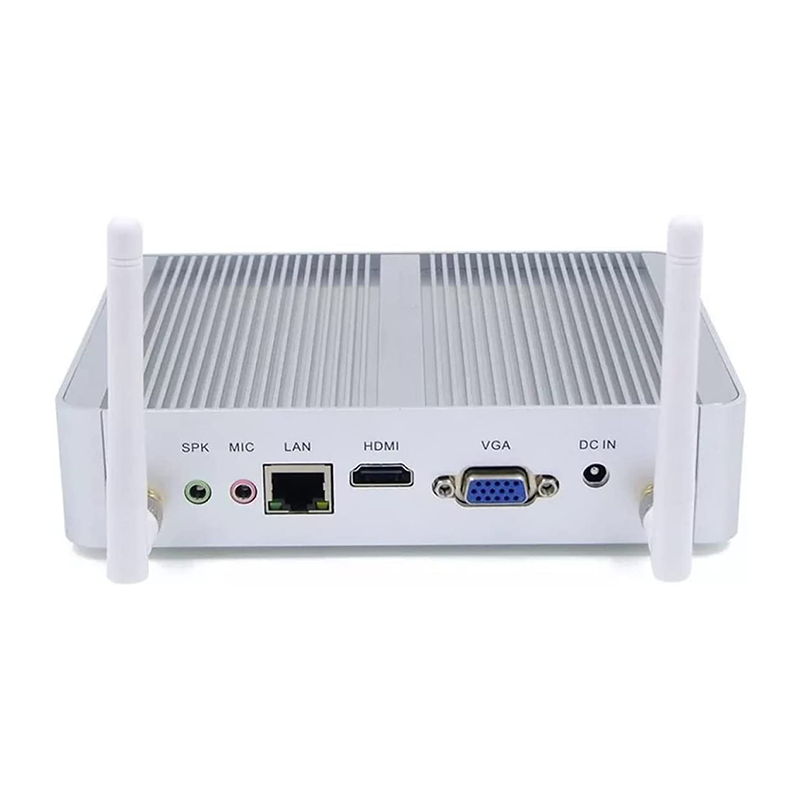

| Rear Panel | 1 x DC_in |
| 1 x HDMI | |
| 1 x HDMI | |
| 1 x Lan | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V3A/5A |
| Packing List | B3 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
