Overview
The J3060 Firewall PC supports pfsense systems, which are open source and customizable firewall software that provide various features, such as NAT, VPN, QoS, IDS, and more. The J3060 Firewall PC is easy to install and manage, and can be used for home, office, or industrial applications.
Specifications
| Material | Aluminum alloy |
| Colour | Black(color can be customized) |
| Size | 115 x 107.5 x 39 mm (W*D*H) |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Intel Celeron Procesor J3160(2M Cache, up to 2.24 GHz) |
| Mainboard | 100 x 100mm NUC mainboard |
| Network Card | 4 x Intel i210AT 1000M lan, support wake on lan |
| Chipset | Intel Integrated Chipset |
| Memory | 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G |
| Storage | 1 x mSATA SSD |
| CPU | Intel Celeron,Procesor J3060(2M Cache, up to 2.48 GHz) |
| Mainboard | 100 x 100mm NUC mainboard |
| Network Card | 2 x Intel i211AT 1000M lan, support wake on lan |
| Chipset | Intel Integrated Chipset |
| Memory | 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G |
| Storage | 1 x mSATA SSD |
| Expand | 1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional) |

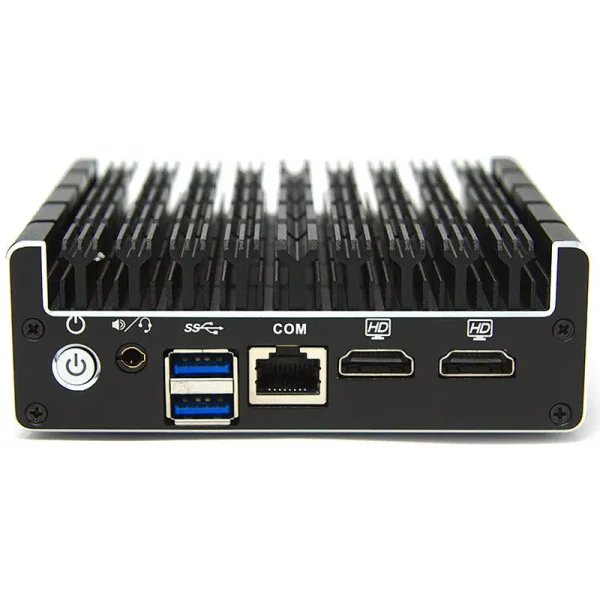

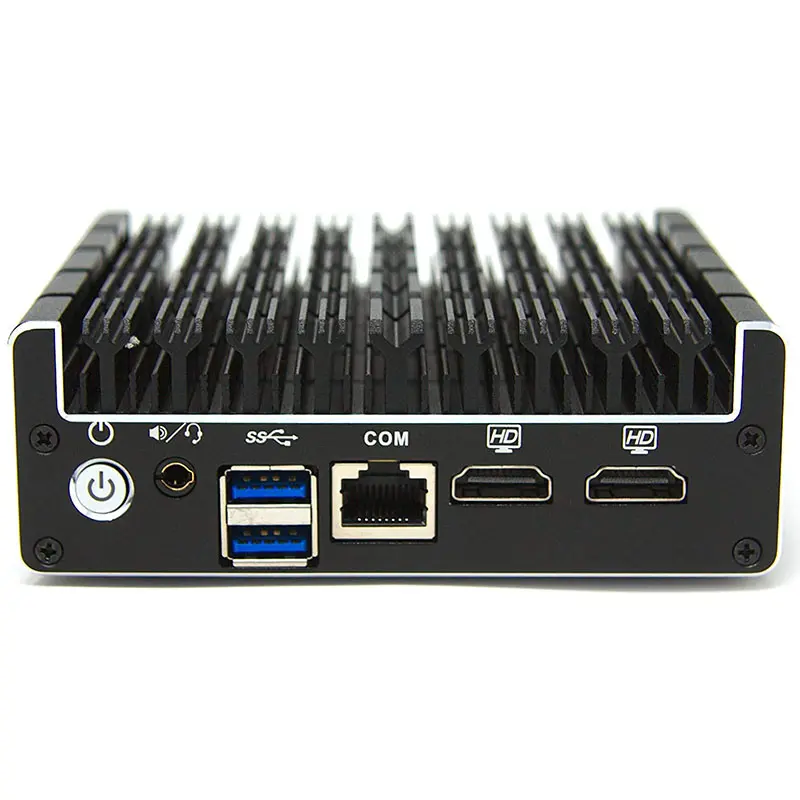

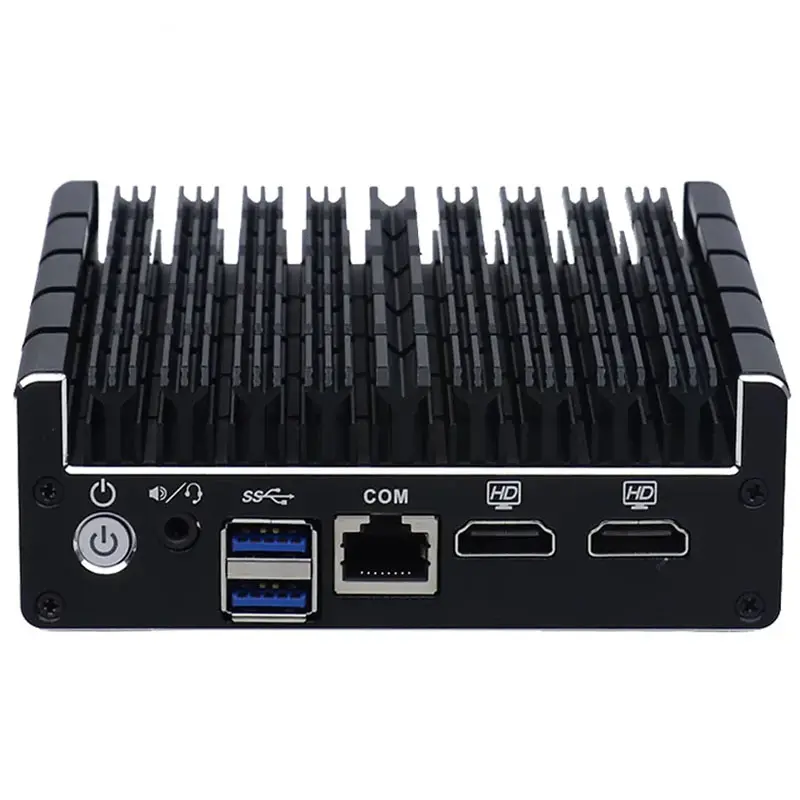

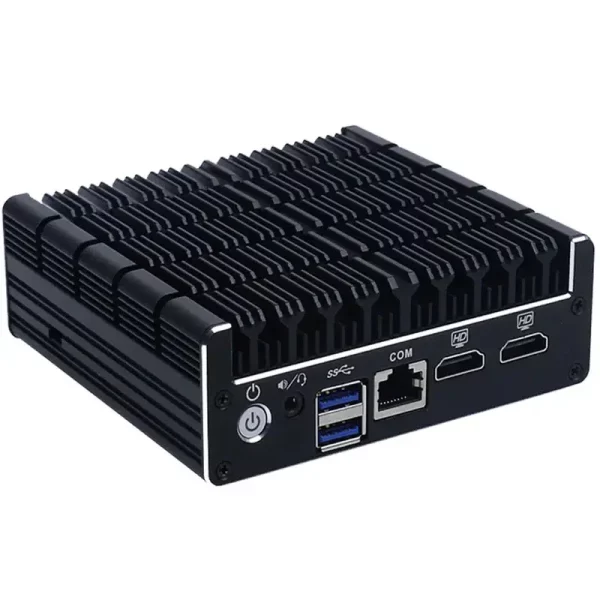

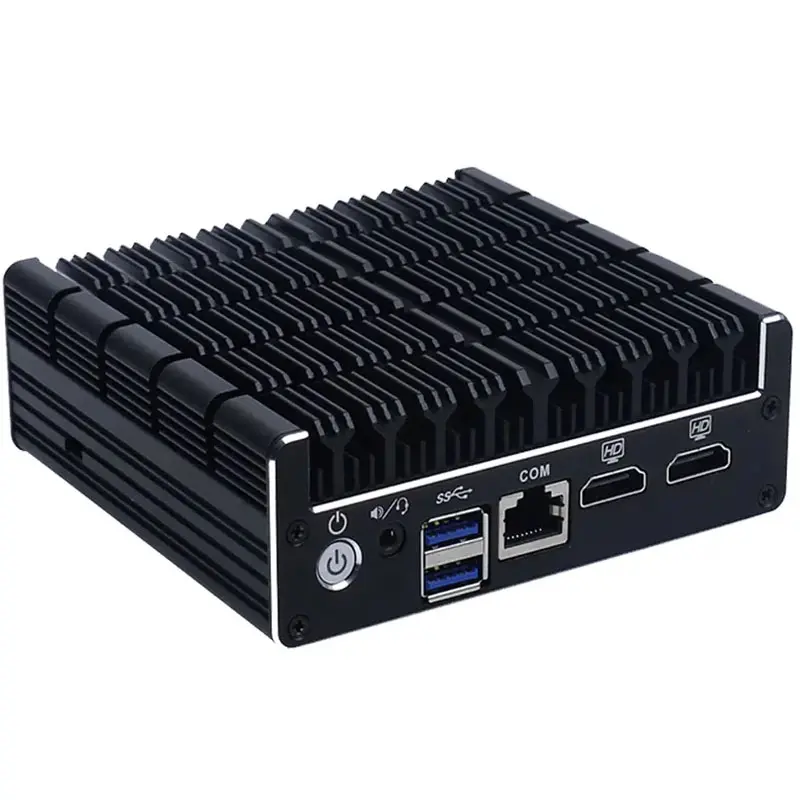

| Front Panel | 1 x Power button |
| 1 x Audio/MIC | |
| 2 x USB3.0 | |
| 1 x RJ45 COM(support Console) | |
| 2 x HDMI | |

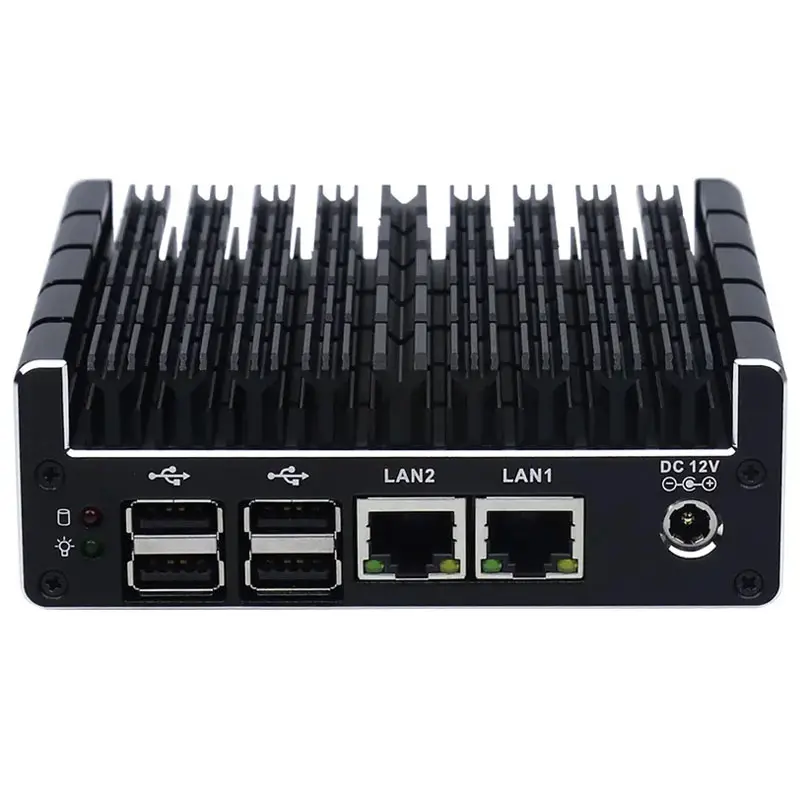

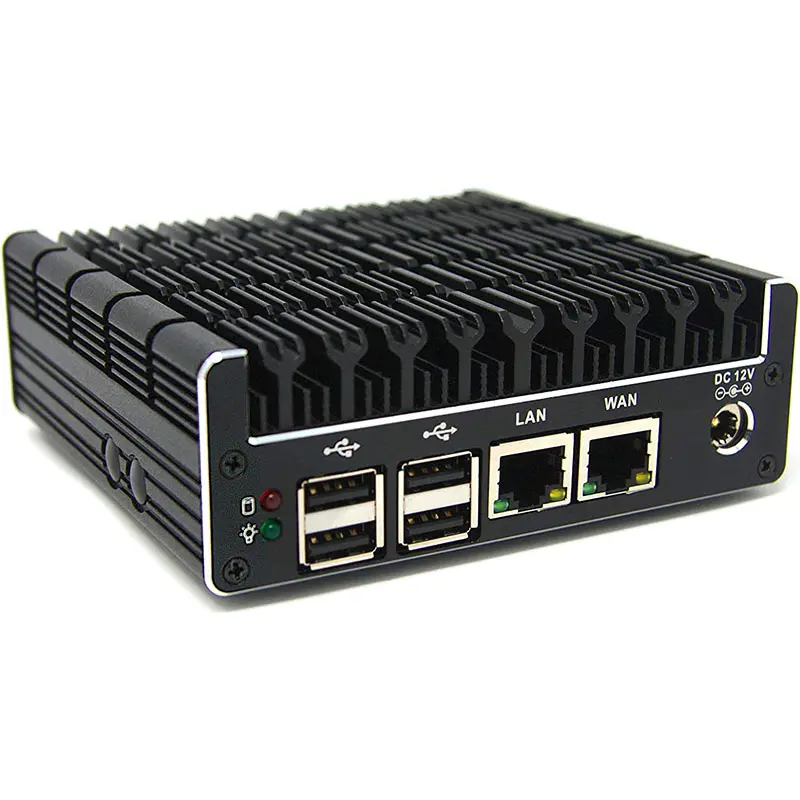

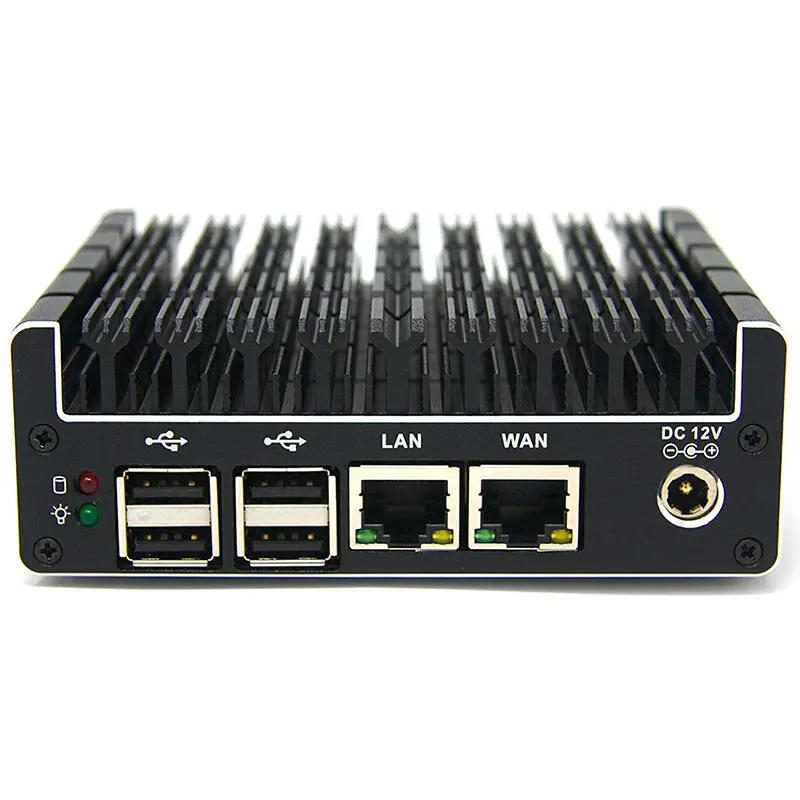

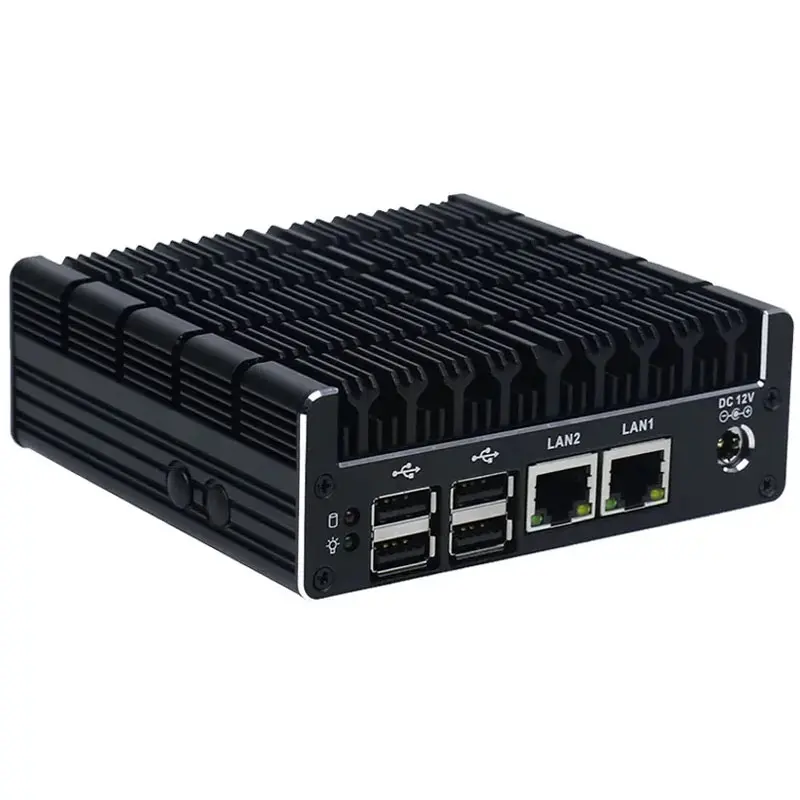

| Rear Panel | 4 x USB2.0 |
| 2 x LAN | |
| 1 x DC-IN 12V | |
| Expand | 1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional) |
| Front Panel | 1 x Power button |
| 1 x Audio/MIC | |
| 2 x USB3.0 | |
| 1 x RJ45 COM(support Console) | |
| 2 x HDMI | |
| Rear Panel | 4 x LAN |
| 1 x DC-IN 12V | |
| Bios | AMI 64Mbit Flash ROM |
| System Support | Windows 7/8/10, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |

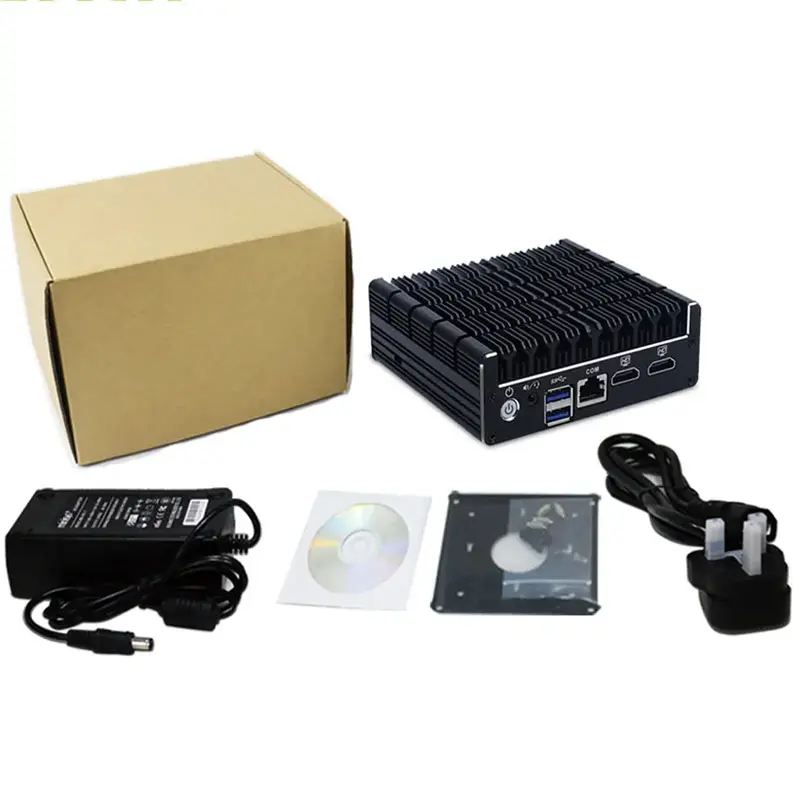

| Packing List | C4-L4 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | -10°C – 50°C |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Watch Dog Timer | Support |
| Certification | CE FCC ROHS |
