Overview
The J4125 Mini PC is a compact and robust device that can handle various industrial applications. It runs on an Intel Celeron J4125 Quad Core processor and supports up to 8GB of RAM. It has multiple storage options, including an M.2 slot and a 2.5″ HDD. It also has 6 USB ports and 3 M.2 slots for connecting different devices. It can be mounted on desktop, DIN rail, VESA, or wall. The J4125 Mini PC is ideal for office, home, KIOSK, advertising machine, self-service terminal, electronic whiteboard, networking, and more.
Specifications
| Material | High-quality all aluminum, surface anodic oxidation |
| Colour | Black(color can be customized) |
| Size | 144 x 126.5 x 42 mm (W x D x H) |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Adopt Intel Celeron J4125 quad core 2.0GHz |
| CPU Architecture | Gemini Lake Refresh |
| Network Card | 2 x 10/100/1000M RTL8111H Ethernet Lan |
| Display Port | 1*HD Port,2*DP Port (Support synchronous and asynchronous three display,Max Resolution support 4096×2160 @ 60Hz) |
| Audio | Support audio and mic input |
| Memory | 1 x DDR4 3200MHz SODIMM, Max 8 GB |
| Storage | 1 x M.2 2280 Slot, Onboard 1 x 2.5”HDD |
| Expand | 1 x M.2 2280 M-key slot( support SATA protocol) |
| 1 x M.2 2242 B-key Slot(Support4G),Embedded SIM slot | |
| 1 x M.2 2230 E-key Slot(Support WIFI,BT) | |
| Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module),1*COM | |

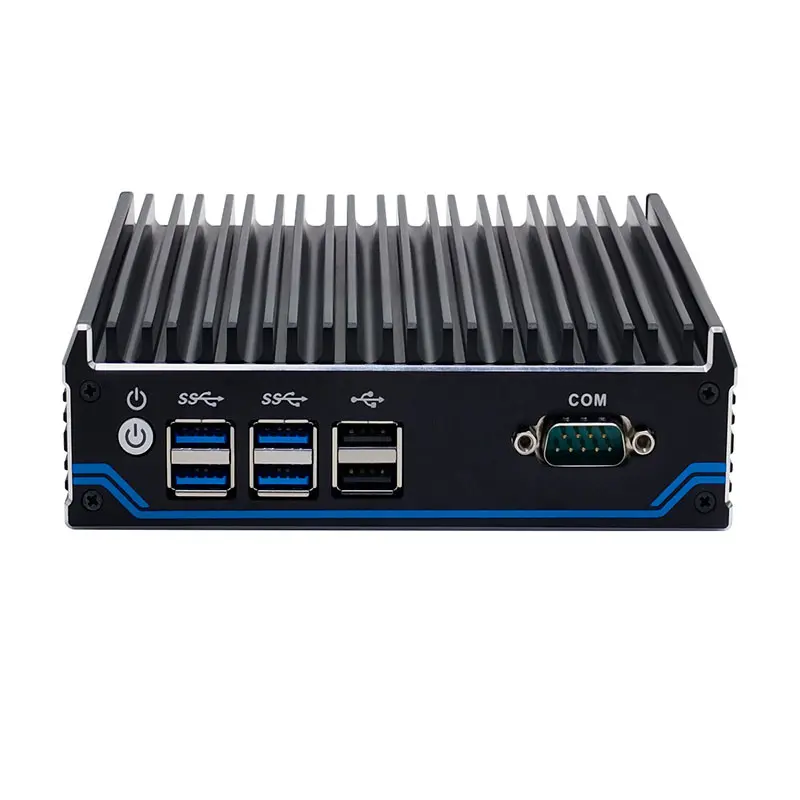

| Front Panel | 1 x Power button |
| 4 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x COM | |

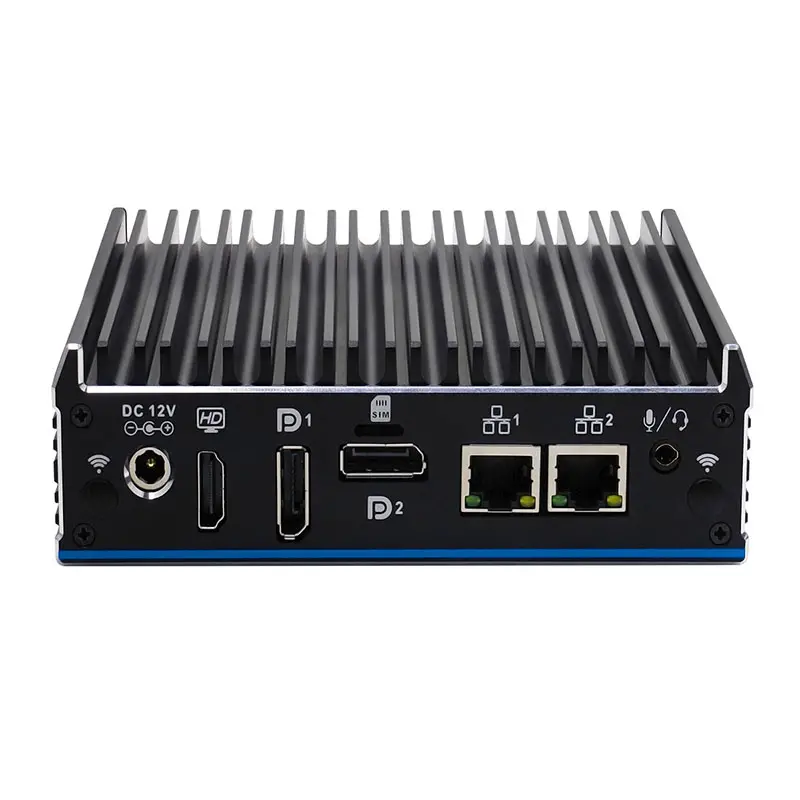

| Rear Panel | 2 x WiFi Antennas Holes |
| 1 x DC-IN 12V | |
| 2 x DP | |
| 2 x LAN | |
| 1 x Audio(Mic and Speaker) | |
| Bios | AMI UEFI BIOS |
| System Support | Windows, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |

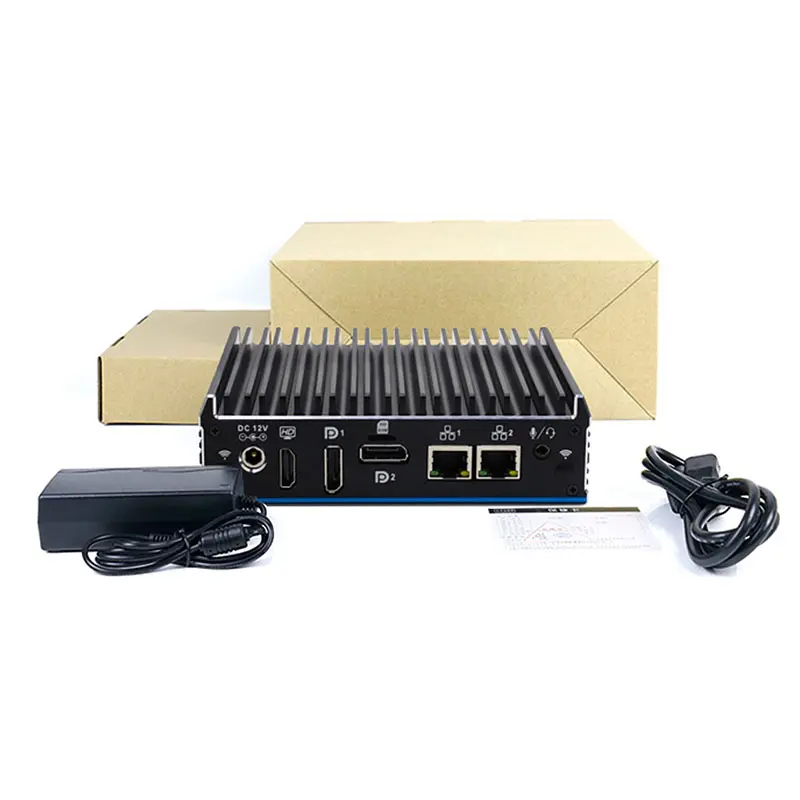

| Packing List | C7 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | 0℃ ~ +50℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot |
| Certification | CE FCC ROHS |
