Overview

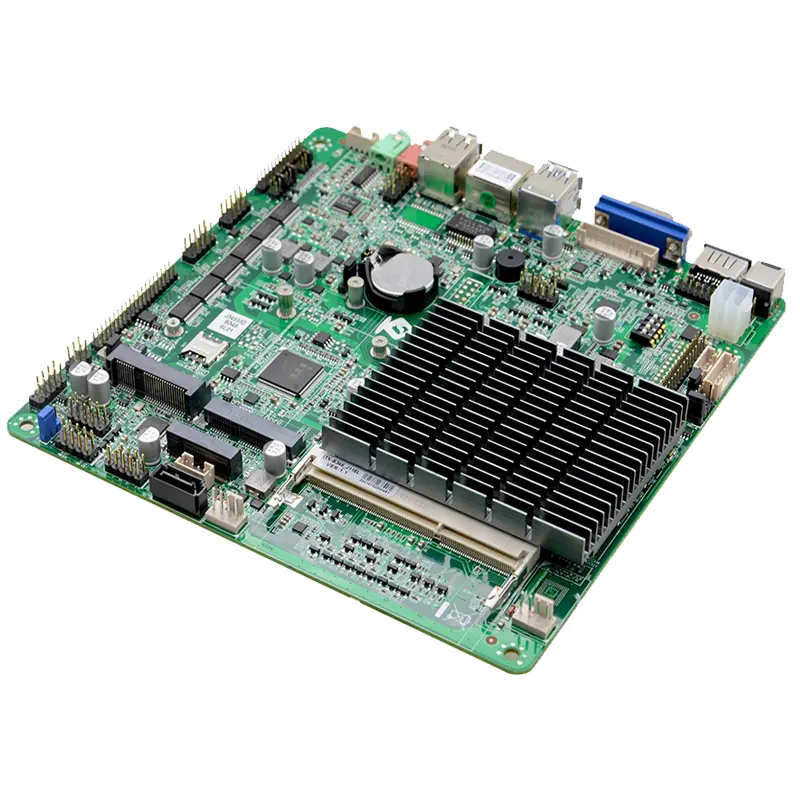

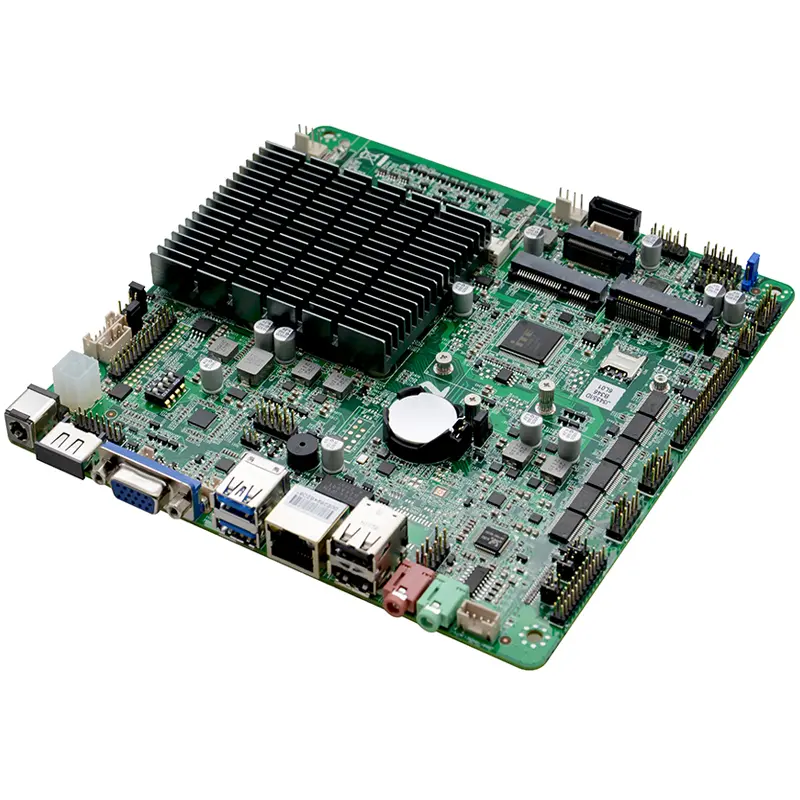

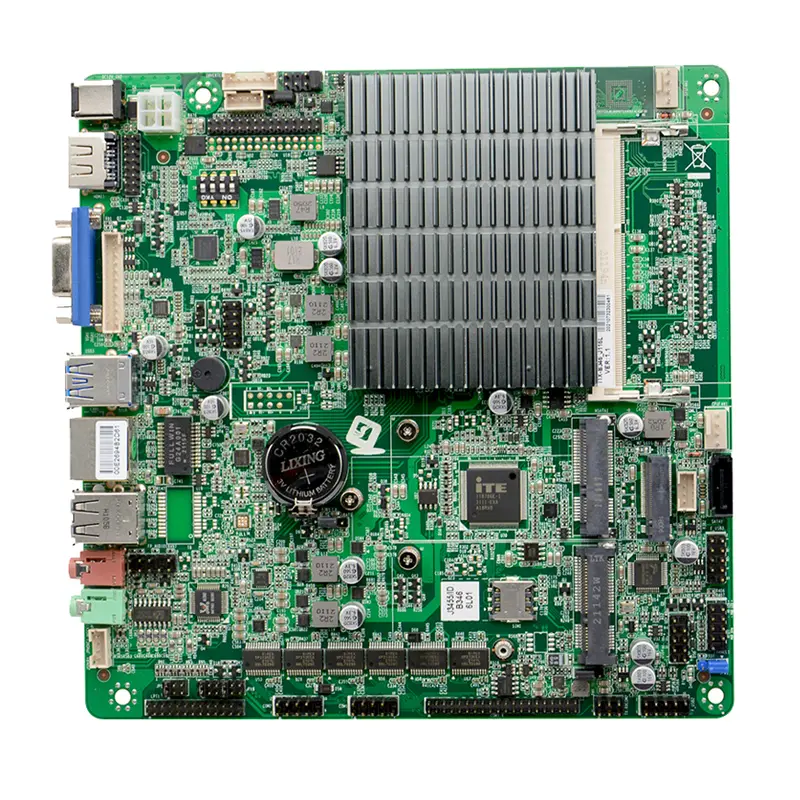

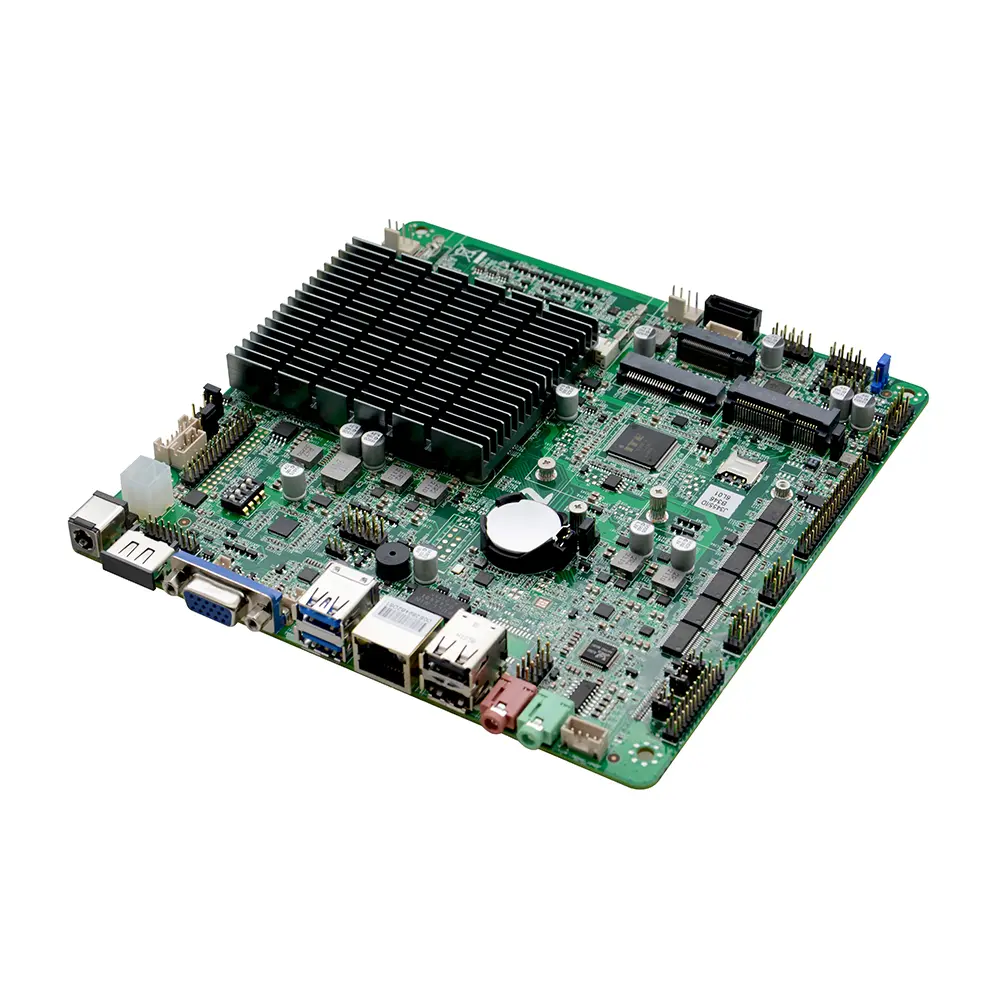

The ITX-B346_J116L VER:1.2E(J3455) presents an advanced Mini-ITX solution featuring Intel Celeron J3455 processor support, HDMI, VGA, and LVDS display output. With versatile connectivity options, including USB3.0 and SATA3.0 interfaces, this motherboard is tailored for industrial applications. Its compact form factor of 170mm x 170mm ensures seamless integration and robust performance in space-limited environments.
Specifications
| Product number | ITX-B346_J116L VER:1.2E(J3455) |
| processor | Integrated Intel Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W |
| Compatible with Intel® Apollo Lake Celeron/Pentium low-power processor | |
| chipset | SOC |
| RAM | 1*DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB |
| show | Integrated Intel®HD Graphics 500 core graphics card |
| 1*VGA, 1*HD OUTPUT, 1*LVDS interface (support dual channel 24Bit) or 1*EDP interface | |
| Support VGA, HD OUTPUT, LVDS synchronous/asynchronous display | |
| The internet | 1* RTL8111HS gigabit network card chip, support Wake-on-LAN/PXE function |
| Store | 1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps |
| 1* MSATA slot, support SSD transfer speed up to 6Gbps, | |
| 1* M.2 slot, support M.2 2280 NVME PCIE standard SSD | |
| Audio | Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. |
| It is recommended to use 2Ω5W speakers for the power amplifier | |
| Expand | 1* Mini-PCIE slot supports WIFI/3G module |

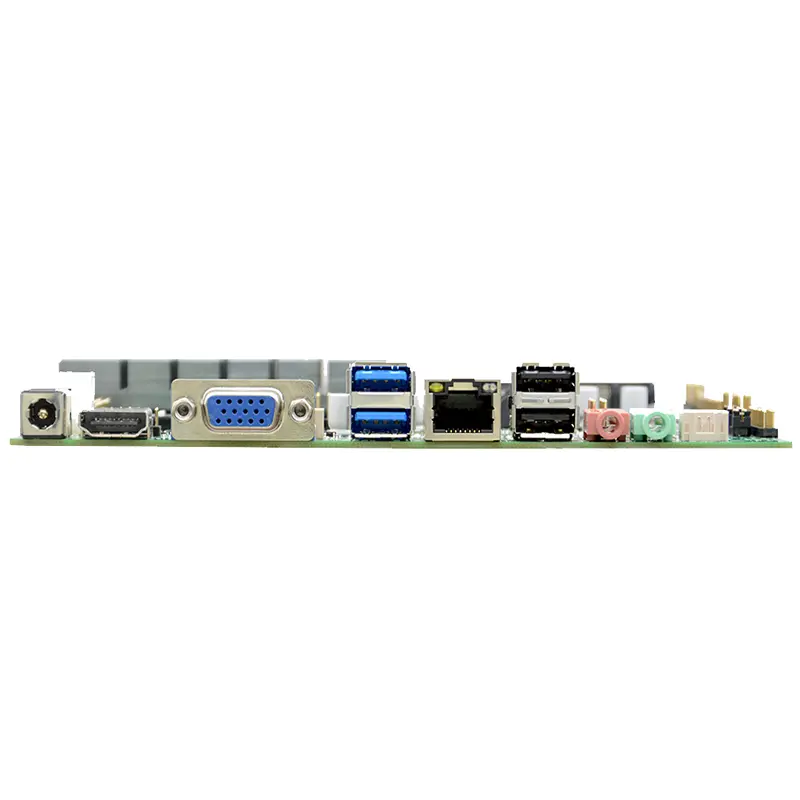

| Backplane I/O interface | 2* USB3.0 interface, 2*USB2.0 interface |
| 1* HD OUTPUT1.4 interface | |
| 1* VGA DB15 interface | |
| 1* RJ-45 Gigabit network interface | |
| 1* Line out (green) | |
| 1* Mic (red) | |
| 1* 12V DC power input interface | |
| Built-in I/O interface | 1* LVDS interface 2*15pin, support dual channel 24Bit LCD display |
| 1* screen backlight power supply interface (1*6pin) | |
| 1* Screen brightness adjustment interface 1*4pin | |
| 1* HD OUTPUT interface 2*8Pin, the same signal as the HD OUTPUT interface on the back panel | |
| 1* JVGA interface 1*12pin, the same signal as DB15 | |
| 6* RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function | |
| 1* LPT interface 2*13pin | |
| 6* USB2.0 interface, 2*5pin | |
| 1* Front panel audio interface 2*5pin | |
| 1* SIM card holder | |
| 1* Hard disk power supply interface, 1*4pin | |
| 1* Front panel function button and indicator port 2*5pin | |
| 2* 2pin ATX power interface, can be used as +12V input and output | |
| 1* power amplifier interface 1*4pin | |
| Fan interface | Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface |
| GPIO | Support 4 input and output GPIO |
| BIOS | 64Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Power supply type | DC 12V single power input |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| size | 170mm x 170mm |
