Overview
The robust Mini PC, crafted from premium aluminum, features versatile installations for industrial use. Equipped with Intel Celeron 3865U or Core i5 7200U processors, dual LAN, diverse connectivity options, expandable memory, and storage support for SATA and MSATA drives. Its fanless design ensures reliability in various environments. Ideal for industrial automation, medical, logistics, and educational settings. Supports Windows/Linux systems and boasts wide voltage power supply and reverse protection. Compact and efficient for diverse applications in challenging environments.
Specifications
Material | High-quality all aluminum |
Colour | Blue(Color can be customized) |
Size | 215 x 185 x 115 mm(not include wall bracket) |
Weight | 3.6kg(not include wall bracket) |
Insallation Method | Wall-mounted, embedded, desktop |
CPU | Onboard Intel Celeron 3865U (dual core, 1.8 GHz, 2M cache) |
Onboard Intel Core i5 7200U(dual core, 2.5GHz, Turbo 3.1GHz,power 15W) | |
Display Ports | 1 x VGA port |
Graphic | Integrated Intel HD Graphics 510/520 |
Network Card | 2 x Intel i211-AT 1000M LAN |
Memory | Support 1 x DDR4 1866/2133 SODIMM, Max 16GB |
Storage | Support 1 x 2.5 Inch SATA3.0, 1 x MSATA |
Expansion | Support 1 x MINI PCIE channel(WIFI/3G/4G optional), embedded SIM slot |
Support 1 x MINI PCIE(support MSATA) | |
GPIO is optional(Default without GPIO) | |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |

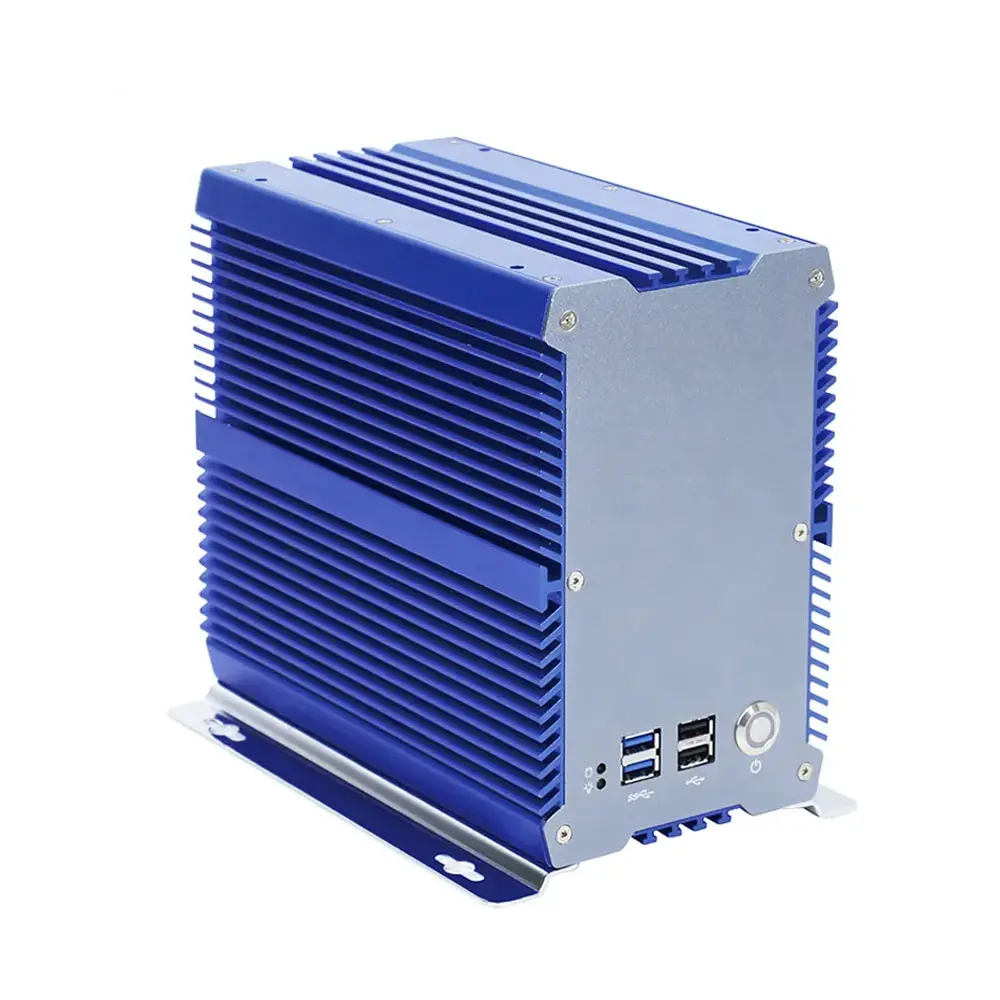

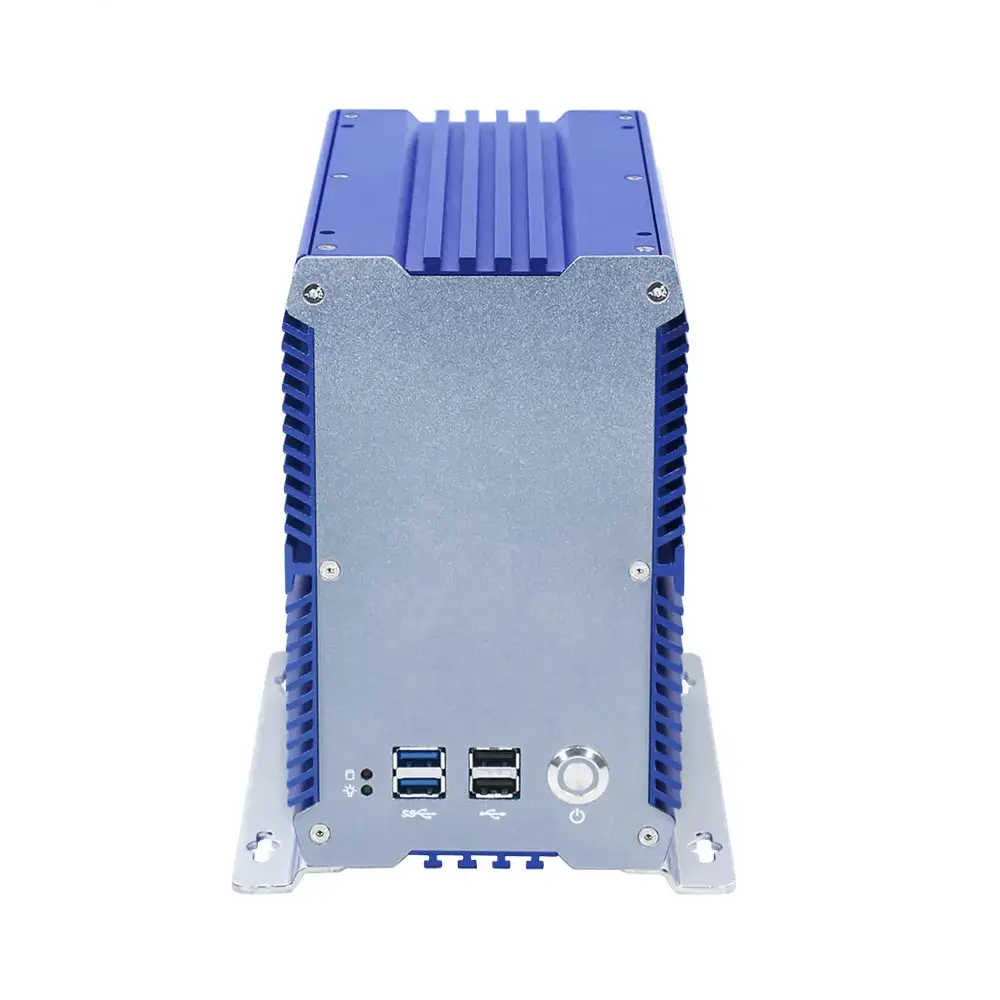

Front Panel | 2 x USB3.0 |
2 x USB2.0 | |
1 x Power Switch | |
2 x LED light | |

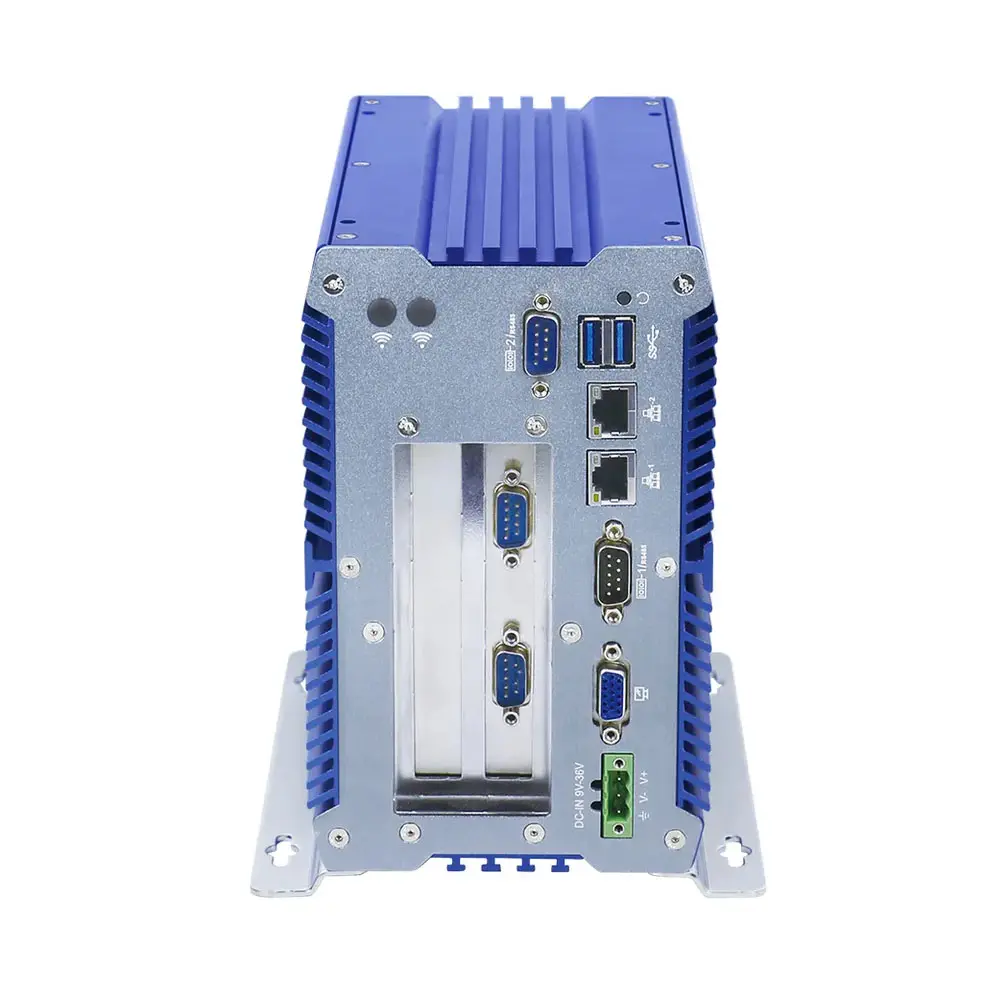

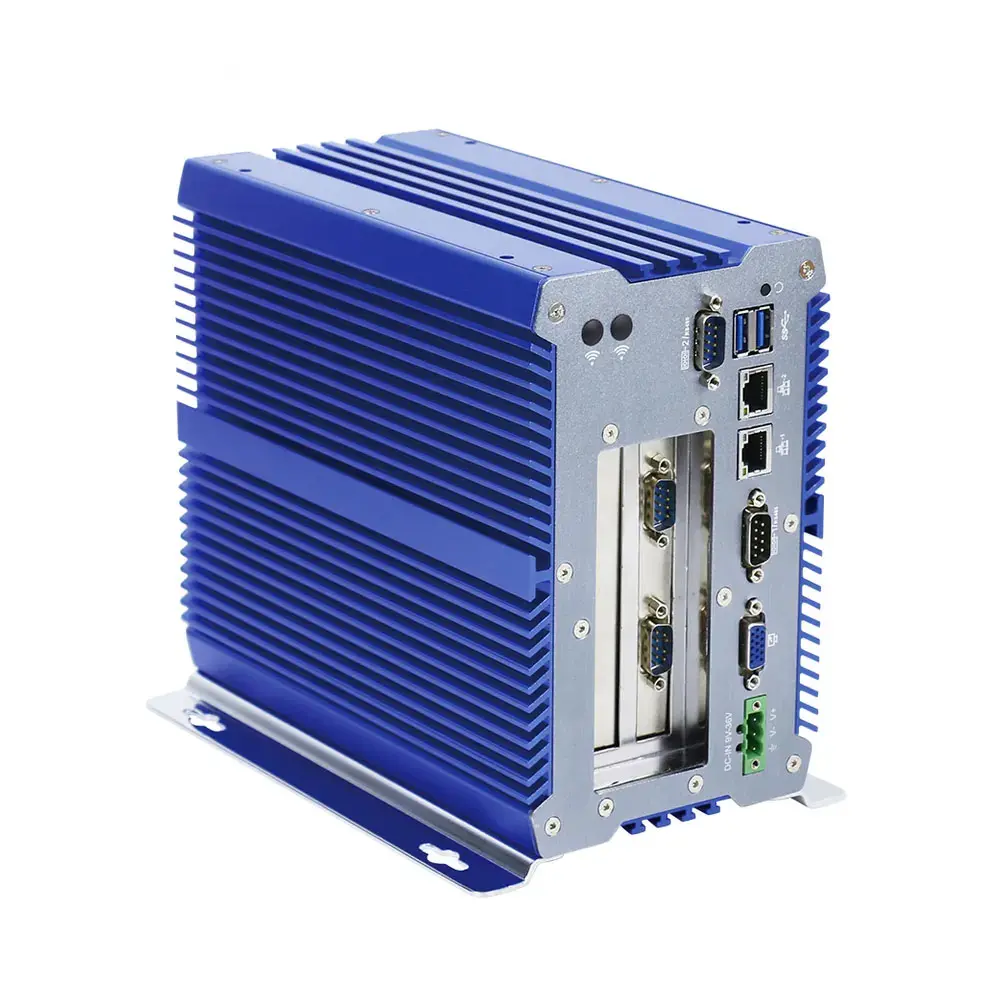

Rear Panel | 2 x USB3.0 |
4 x COM(Support 6*COM optional)(COM1, COM2 Support RS232/442/485 optional) | |
2 x Intel Lan | |
1 x VGA | |
1 x Phoenix Terminal | |
1 x RST | |
1 x PCIE 4X + 1 x PCI(2 x PCI/2 x PCIE optional) | |
Bios | 64Mb SPI FLASH |
System Support | Windows/Linux |
Cooling Mode | Fanless design |
Power Supply | DC 9~36V wide voltage, power positive and negative reverse protectio |
Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable |
Work Temperature | 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow |
Relative Humidity | 5 % ~ 95% non-condensing |
Certification | CE FCC ROHS |
