F11A PFSense 1U Firewall LGA1151/LGA1155 SFP 10G

  • Ersatile Connectivity Options for Varied Applications、
  • Robust Intel® Processor Support for High Performance
  • 6 I226 2.5G LAN Ports Enable Fast Networking
  • Expandable Storage with MSATA and HDD Support
  • Adaptable for Rack or Desktop Installation
  • Multiple PCIe Slots for Flexible Expansion Needs
  • Effective Cooling with Integrated Fan Mechanism

Share to:

Overview



The F11A firewall, featuring a 1U chassis and support for Intel® processors, combines efficient networking with versatile storage options. Its diverse connectivity and expandable slots ensure high-performance functionality across varied system requirements. With a range of compatible operating systems, advanced cooling mechanisms, and robust construction, it’s a reliable and adaptable solution, suitable for diverse setups.



Specifications



Chassis 1U standard chassis, high-quality galvanized steel
Colour Iron gray
Size 430MM*320MM*44.5MM
Weight 9Kgs
Insallation Method Desktop type/rack mounting
CPU Supports Intel® LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processors
Support Intel® Core i5 7300HQ Processor, 6M Cache, up to 3.50 GHz
Support Intel® Core i7 6920HQ Processor, 8M Cache, up to 3.80 GHz
Support Intel® LGA1155 I3 I5 I7 Processor
Network Card 6 x Intel I226 2.5G Gigabit electrical port, support Wake-on-LAN/PXE function
Graphic Integrated Intel HD Graphics core graphics card
Memory 2 x DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 64GB
Storage 1 x MSATA, transmission speed up to 6Gbps
1 x 3.5 inch hard disk or 1*2.5 inch hard disk
Display 1 x VGA
Expand 1*PCIE X8 slot, expandable Gigabit/10 Gigabit fiber card
1*M.2 Key-E slot, support WiFi module
1*M.2/5G, Key-B, 2242/2252, support 5G (choose one with built-in USB2.0)
1*MINIPCIE slot, supports MSATA (TPM-4COM is optional, supports 4 strings, needs to flash
1*USB2.0, can be connected to dongle (choose one with M.2 5G)

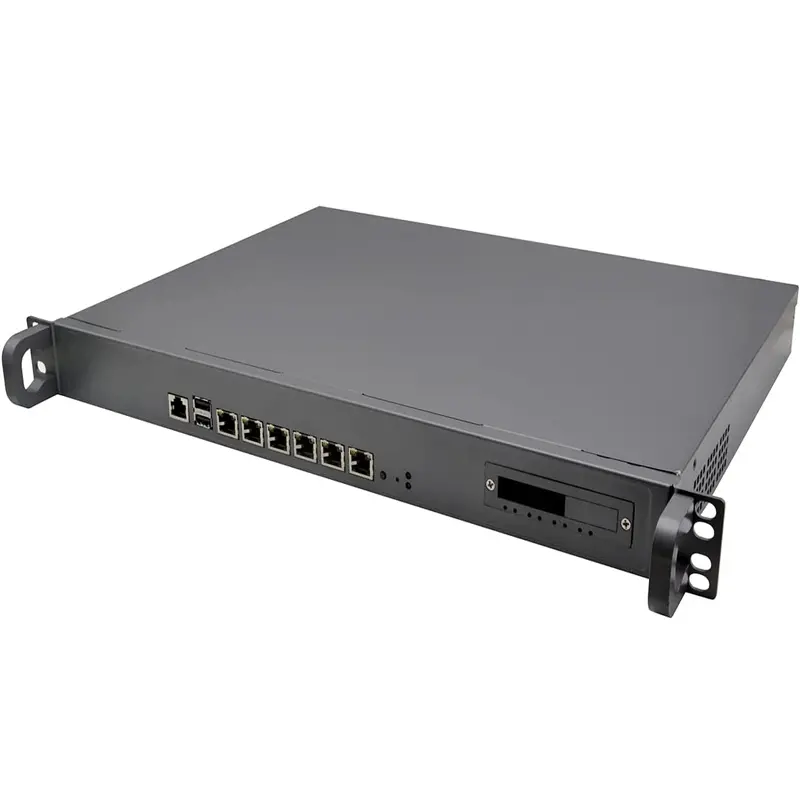

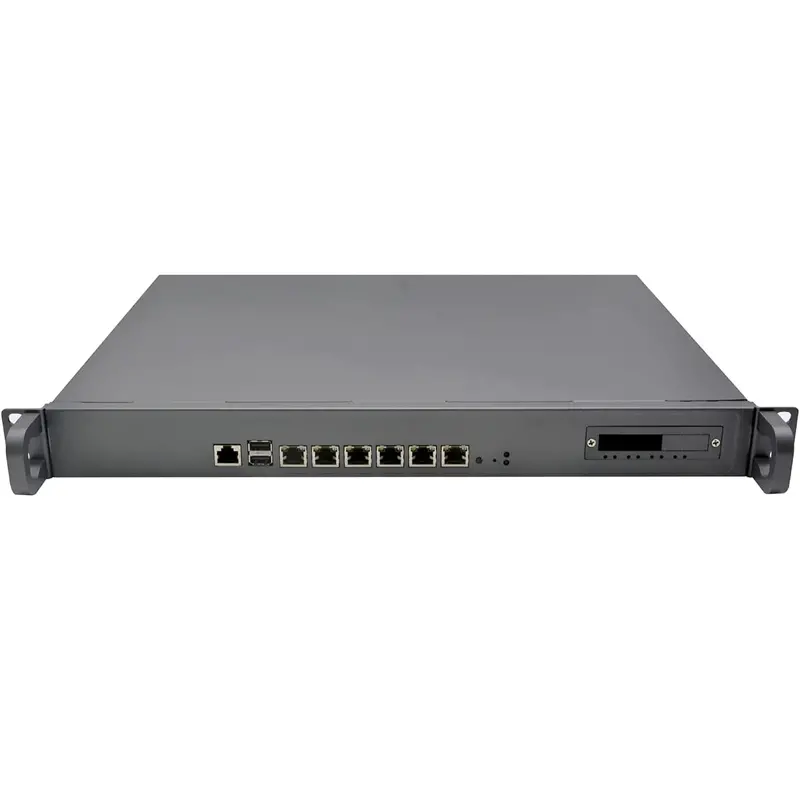

Front Panel 1 x Power switch, 1 x Restart switch
6 x Intel I226 2.5G Gigabit LAN
2/4 x Optical fiber
1 x RJ45 COM
1 x hard disk indicator light, 1 x power indicator light

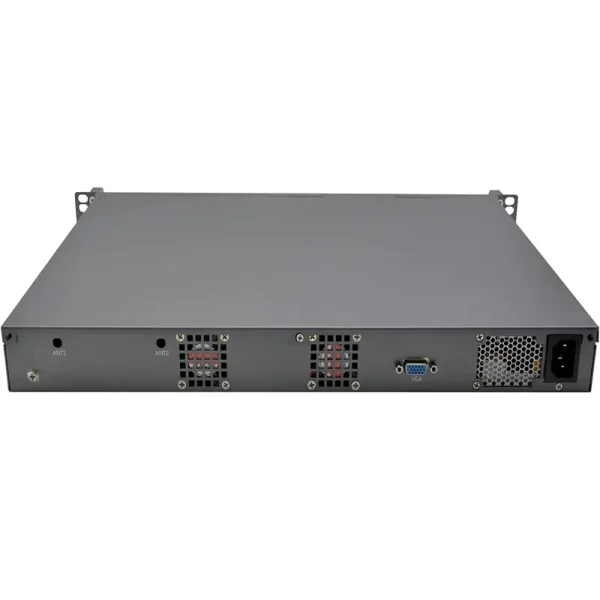

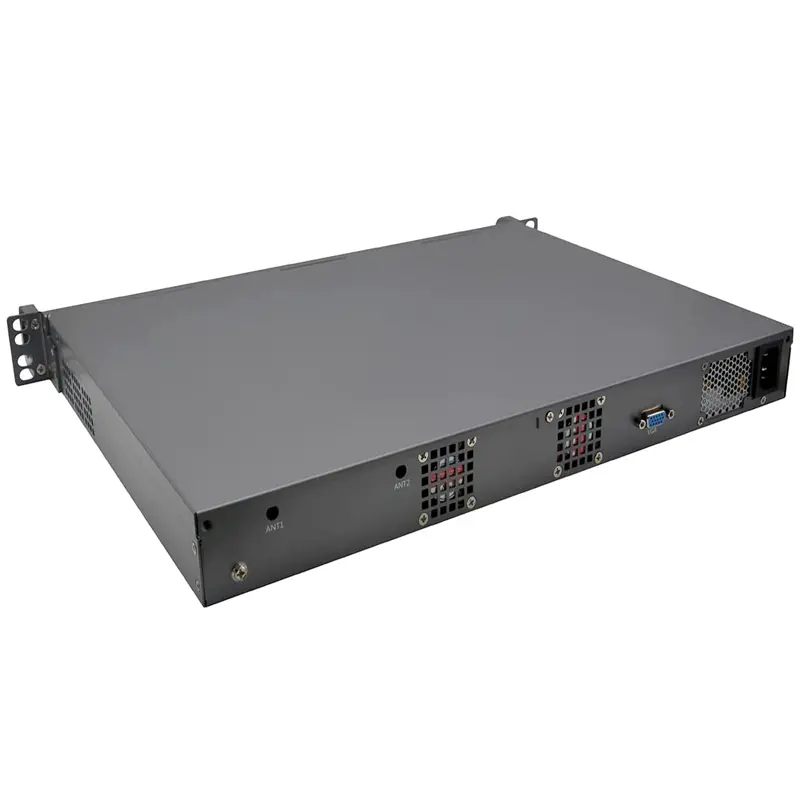

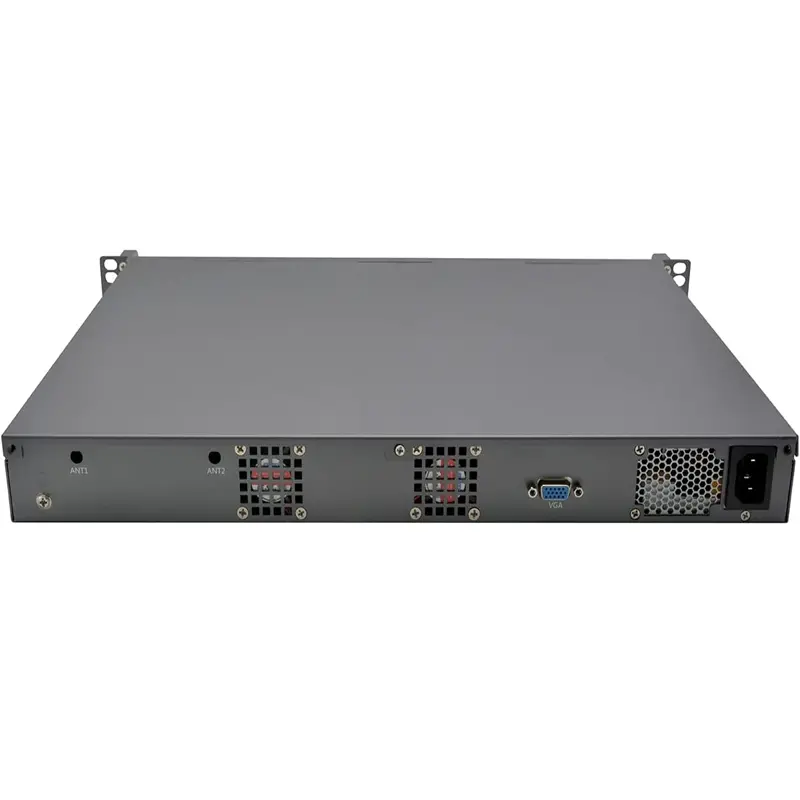

Rear Panel 1 x VGA
1 x Power cord interface
System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Cooling Mode With Fan
Power Supply Built-in ATX/1U power supply, AC 110-220V Standard 250W
Packing List F11A Firewall Appliance, Power adapter, Power cord, Warranty card
Operating temperature -10℃~50℃
Storage temperature -20℃~70℃
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating



Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Memory MB IO Board BYPASS LAN COM VGA SFP USB Power
F11A(B75) LGA1155 2*SODDR3 R67 M211-IO 2(Optional) 6 1 1 4/2(Optional) 2 AC 220V
F11A(R270) LGA1151 2*SODDR4 R270 M211I-O 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F11A(7300HQ) i5-7300HQ/2.5GHz 2*SODDR4 R730 M211-IO 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F11A(6920HQ) i7-6920HQ/2.9GHz 2*SODDR4 R730 M211-IO 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V



F11 with 6 x I211 LAN

F11A with 6 x I226 LAN



LGA1151/CPU/6th Gen G3900/G3930/G4400/I3 6100/I5 6500/I5 6500T/I7 6700
LGA1151/CPU/7th Gen G4900/G4930/G4560/I3 7100/I5 7500/I7 7700
LGA1151/CPU/8th Gen G5400/I3 8100/I5 8400/I5 8500/I7 8700
LGA1151/CPU/9th Gen I3 9100/I5 9400/I5 9500/I7 9700/I7 9700K
LGA1155/CPU/2th Gen I3 2100/I5 2300/I5 2400/I7 2600/I7 2700K
LGA1155/CPU/3th Gen I3 3210/I3 3250/I5 3470/I5 3550/I7 3770/I7 3770K
