Overview
Introducing our versatile Firewall Appliance series: compact, powerful, and adaptable. Crafted with an aluminum alloy structure, it offers Intel processors, customizable color options, and various installation methods. With multiple connectivity ports, DDR4/DDR5 memory support, and compatibility with diverse operating systems, this series ensures robust performance in networking, security, and server applications. Certified with CE, FCC, and ROHS, it operates within a wide temperature range, providing reliability and high-quality computing solutions.
Specifications
| Material | Aluminum alloy structure |
| Colour | Blue+Gray (color can be customized) |

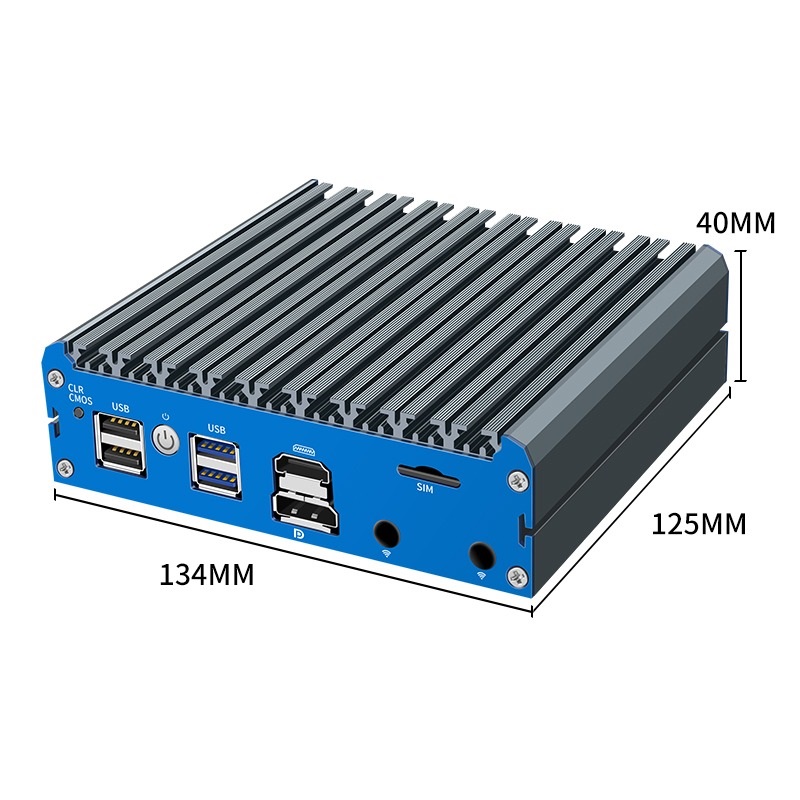

| Size | 134 x 125 x 40 mm |
| Weight | 1.0 kg |
| Insallation Method | Desktop |
| Wall Mount | |
| Vesa | |
| CPU | Intel Celeron J4125 4 Cores 4 Threads |
| Intel Pentium Silver J5040 4 Cores 4 Threads | |
| Intel Pentium Silver N5000 4 Cores 4 Threads | |
| Intel Celeron J6412 4 Cores 4 Threads | |
| Intel Processor N100 4 Cores 4 Threads | |
| Display Ports | 1 x DP; 1 x HDMI |
| Network Card | 4 x I226V (Default) |
| Memory | 2 x DDR4 2133/2400MHz SO-DIMM (Single up to 8GB), N100 with DDR5 RAM |
| Storage | 1 x M.2 2280 SSD; 1 x 2.5-inch HDD/SSD |
| Chipset | Depend on CPU |
| Other function | Power on, scheduled boot, wake on LAN, PXE boot, watchdog |
| Expansion Slot | 1 x Mini PCIE Channel for WIFI/Bluetooth/4G |
| Application | Firewall, VPN, network server, network security, router and other fields. |

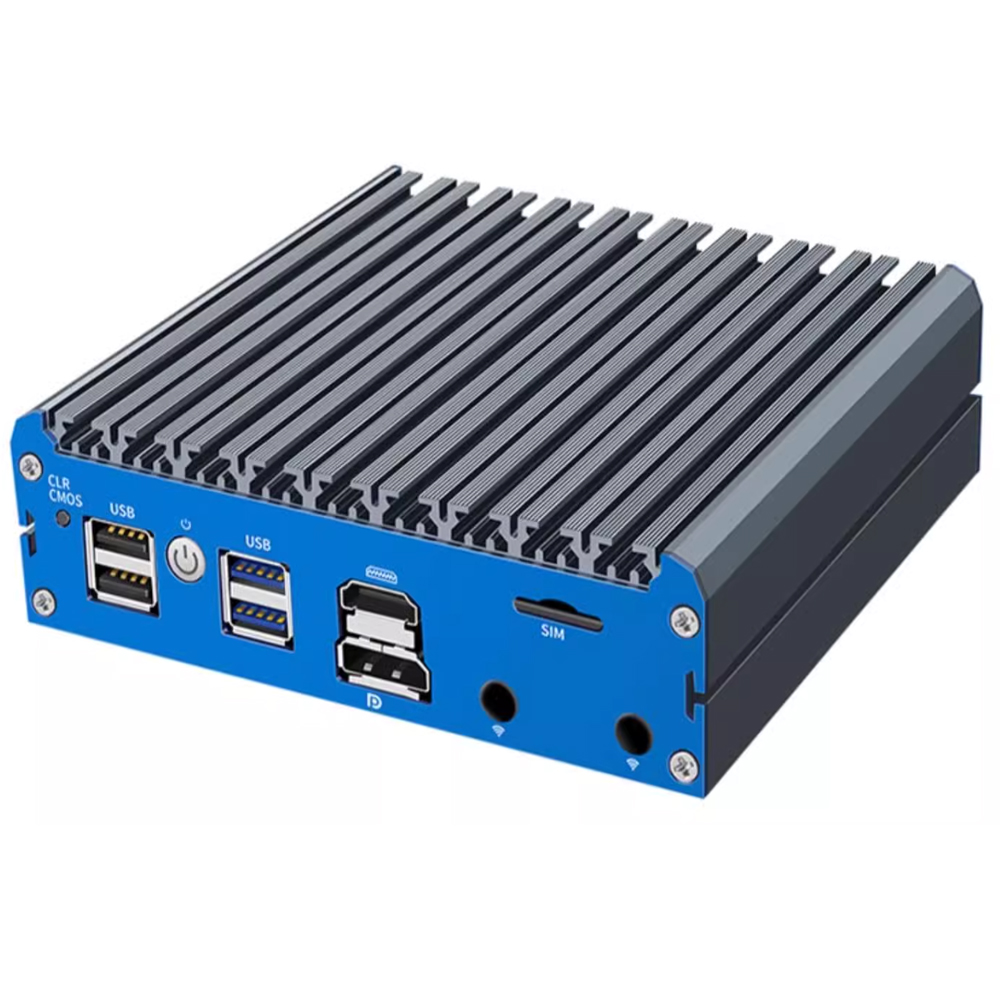

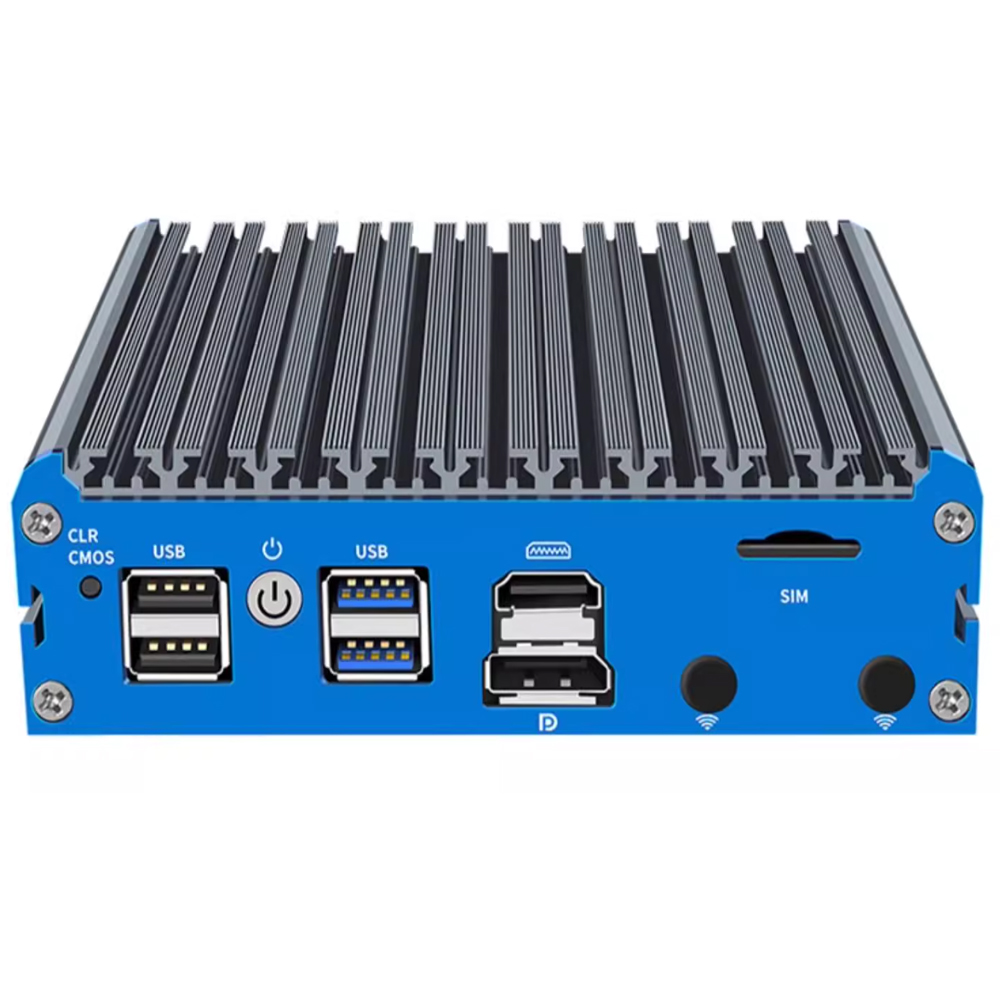

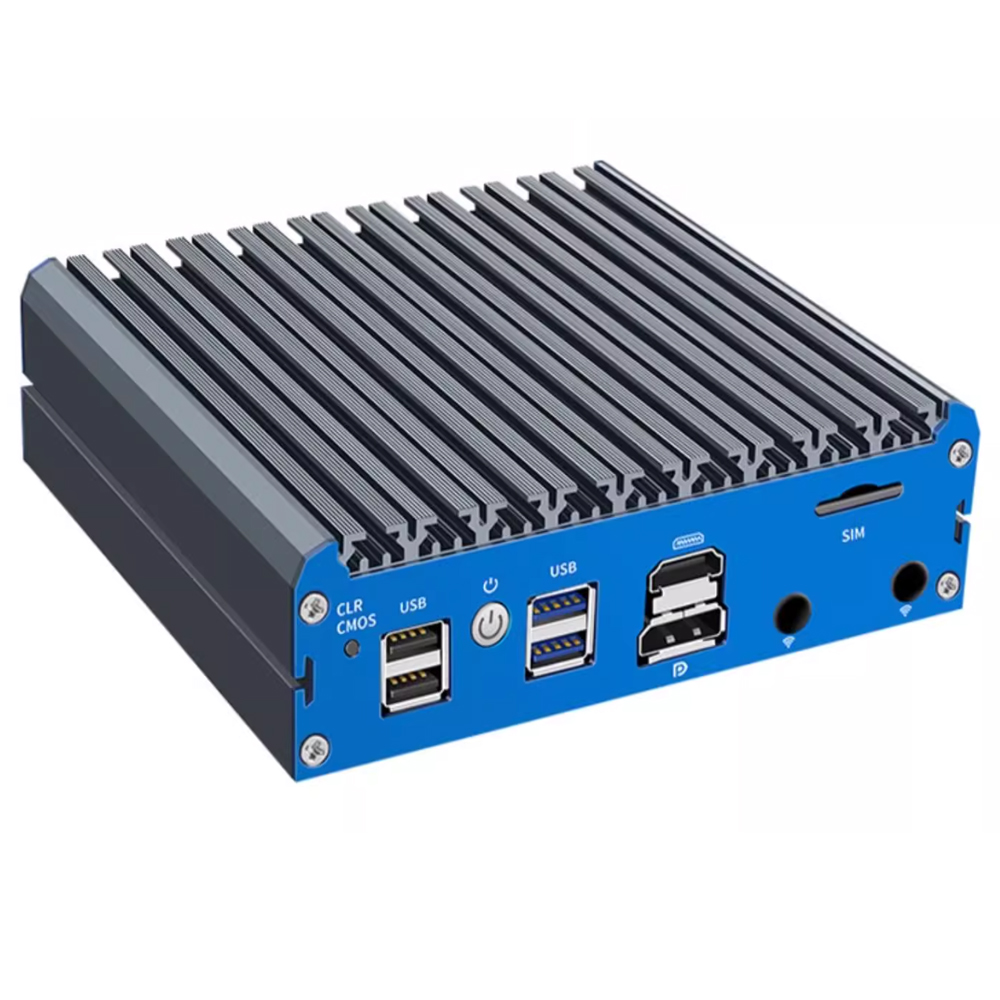

| Front Panel | 1 x CLR CMOS Reset button |
| 2 x USB2.0 | |
| 1 x Power Button | |
| 2 x USB3.0 | |
| 1 x DP | |
| 1 x HDMI | |
| 1 x SIM Slot | |
| 2 x WiFi Holes | |

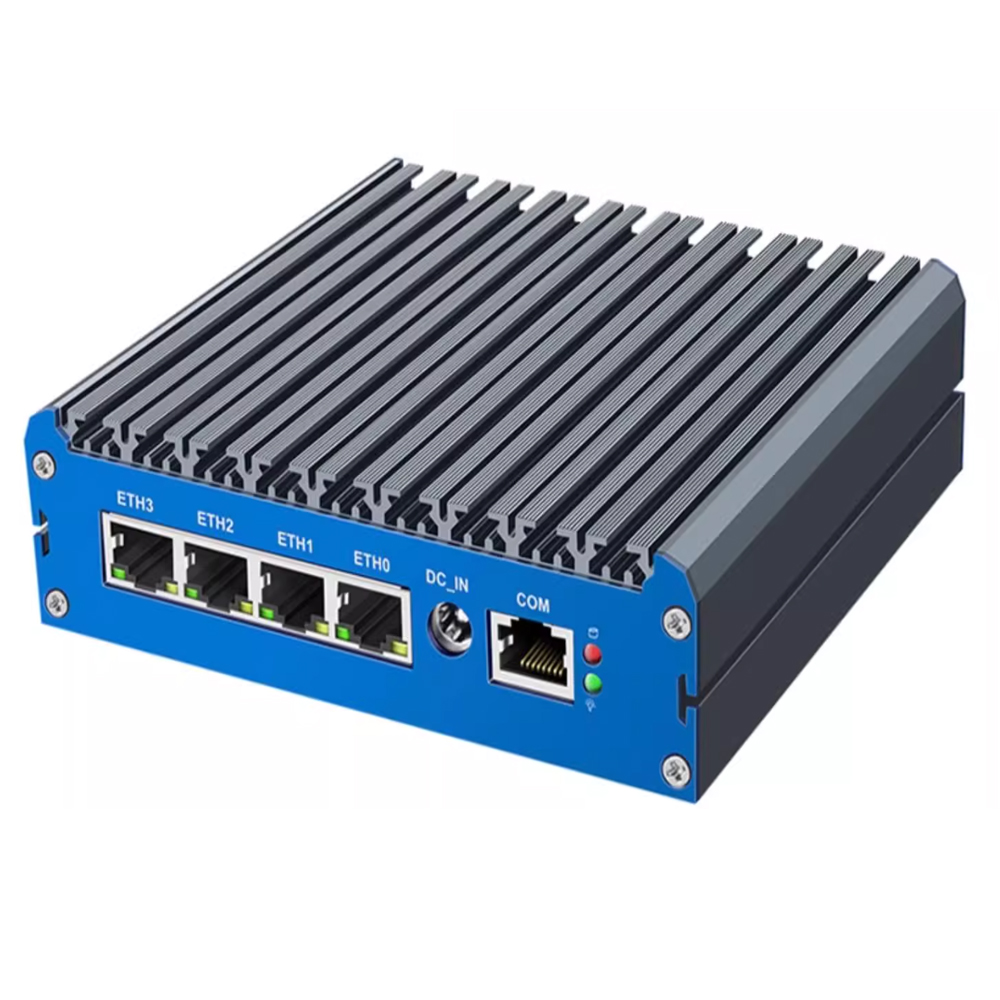

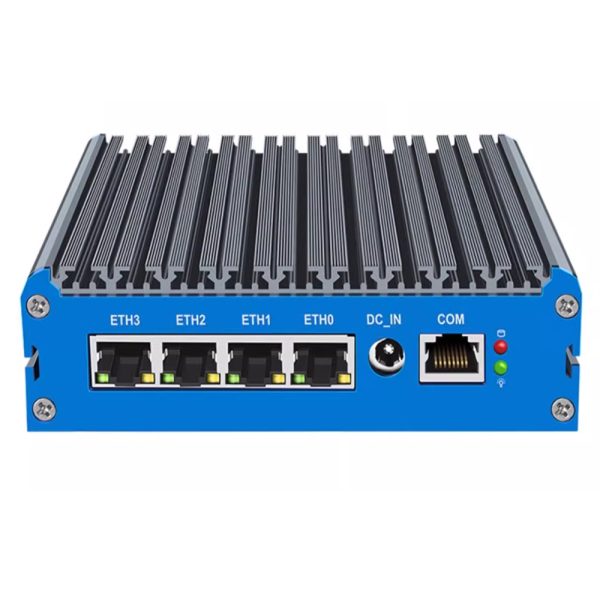

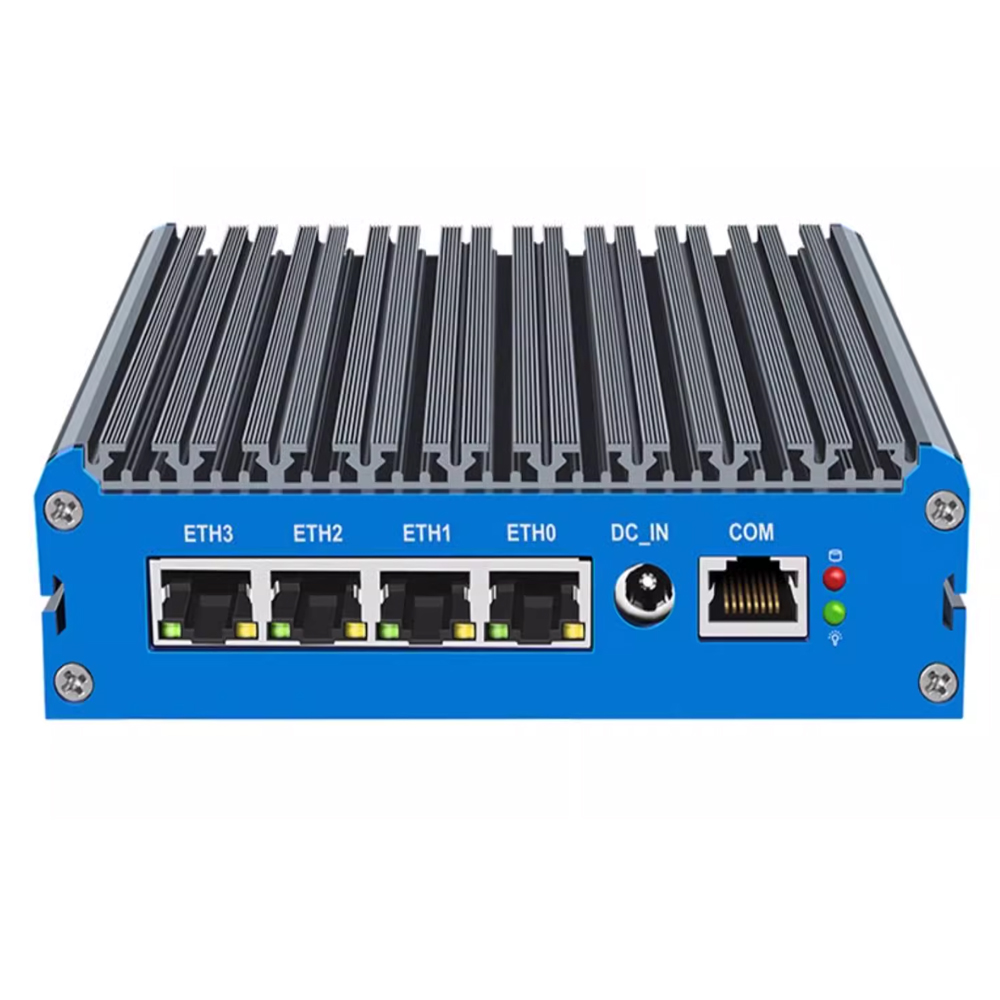

| Rear Panel | 4 x LAN |
| 1 x DC In | |
| 1 x Console | |
| 1 x Power hard disk indicator light | |
| Bios | AMI UEFI BIOS |
| System Support | Windows/Linux/Centos/Ubuntu/pfSense/OPNsense |
| Cooling Mode | Fanless |
| Power Supply | DC 12V |
| Packing List | Firewall appliance, power supply, power cord, vesa mount, warranty card |
| Work Temperature | 0°C ~ +40°C Commercial HDD, -20°C ~ -60°C Industrial SSD, surface air flow |
| Work Humidity | 0%~95% non-condensing |
| Certification | CE FCC ROHS |
