Overview
This compact H10 mini PC combines powerful Intel Celeron processors, up to 32GB memory, and multiple storage options. Boasting five Intel 2.5G network cards, it supports various expansions and functions such as AES-NI, Wake-on-LAN, and fanless cooling. With robust industrial-grade capabilities and extensive compatibility, it’s an ideal solution for diverse system requirements.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 187 x 120 x 55（mm） |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type |
| Vesa mounted installtion | |
| CPU | Intel Celeron Processor N5105, 4 core 4 threads, Up to 2.9GHz |
| Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz | |
| Network Card | 5 x INTEL I225/I226 2.5 network card (optional 4 POE) |
| Memory | 1 x DDR4 2933MHz SODIMM memory slot, up to 32GB |
| Storage | 1 x mSATA, 1 x 2.5-inch hard drive |
| Graphic | Intel UHD Graphiacs |
| Function | Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc |
| Display | 1 x HDMI, 1 x VGA |
| Expand | Support 2 x MINIPCIE channels (WIFI/Bluetooth/4G available) |

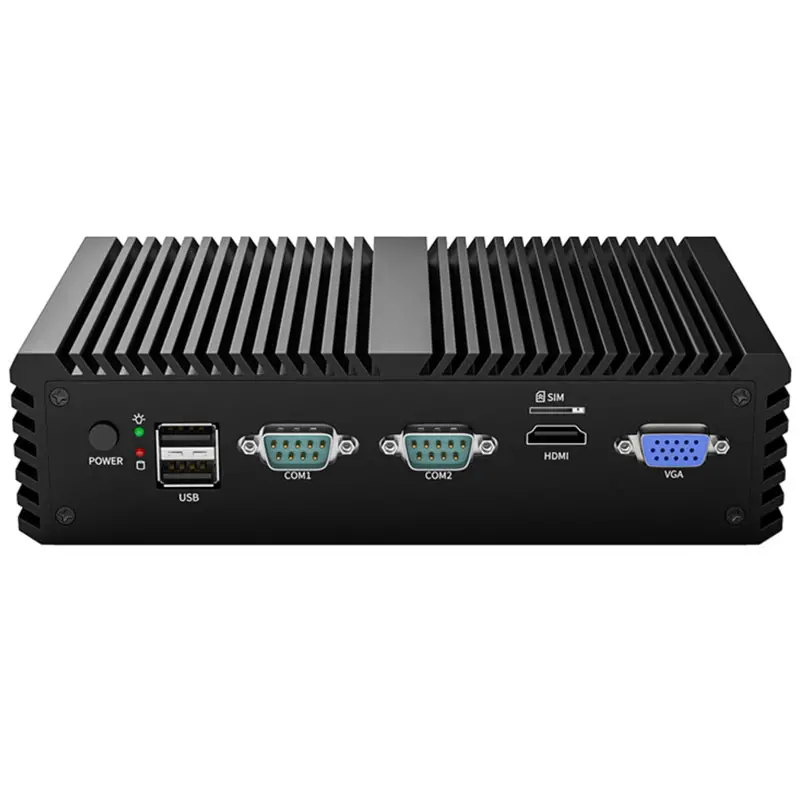

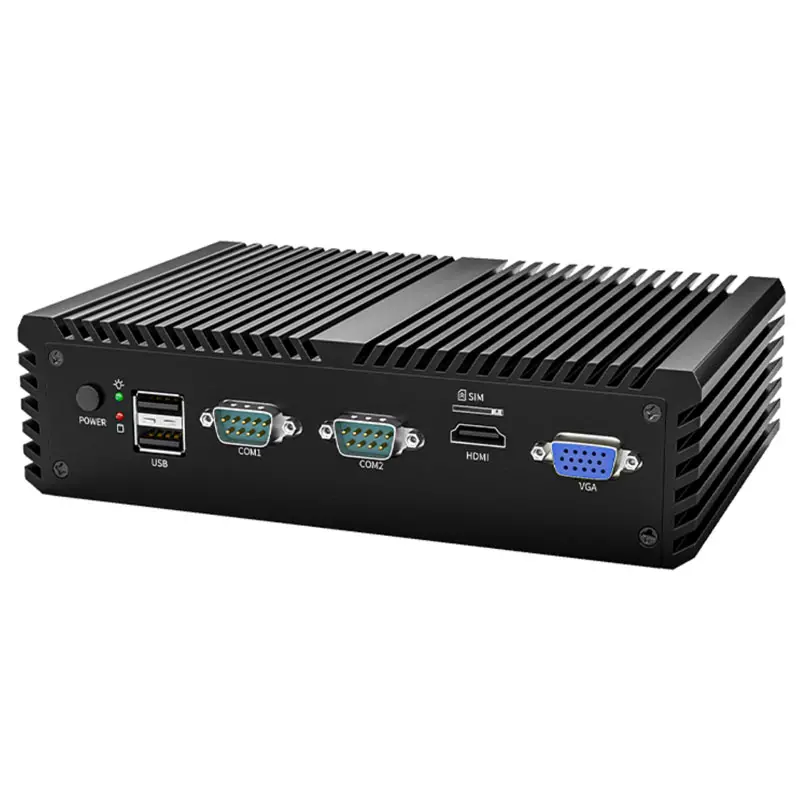

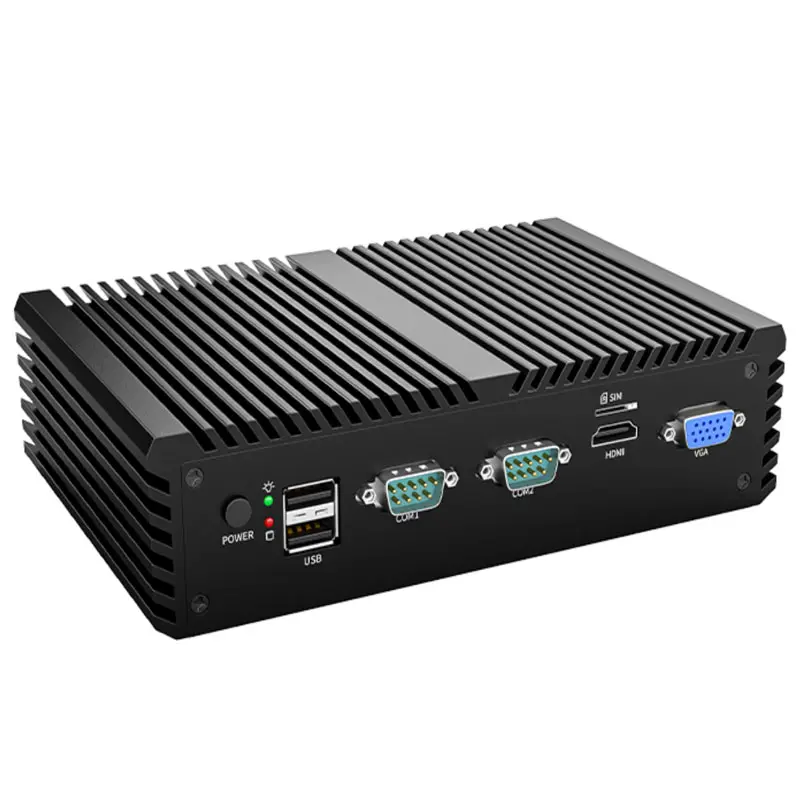

| Front Panel | 1 x Power Switch |
| 2 x indicator light | |
| 2 x USB2.0 | |
| 2 x COM | |
| 1 x SIM Card Slot | |
| 1 x HDMI | |
| 1 x VGA | |

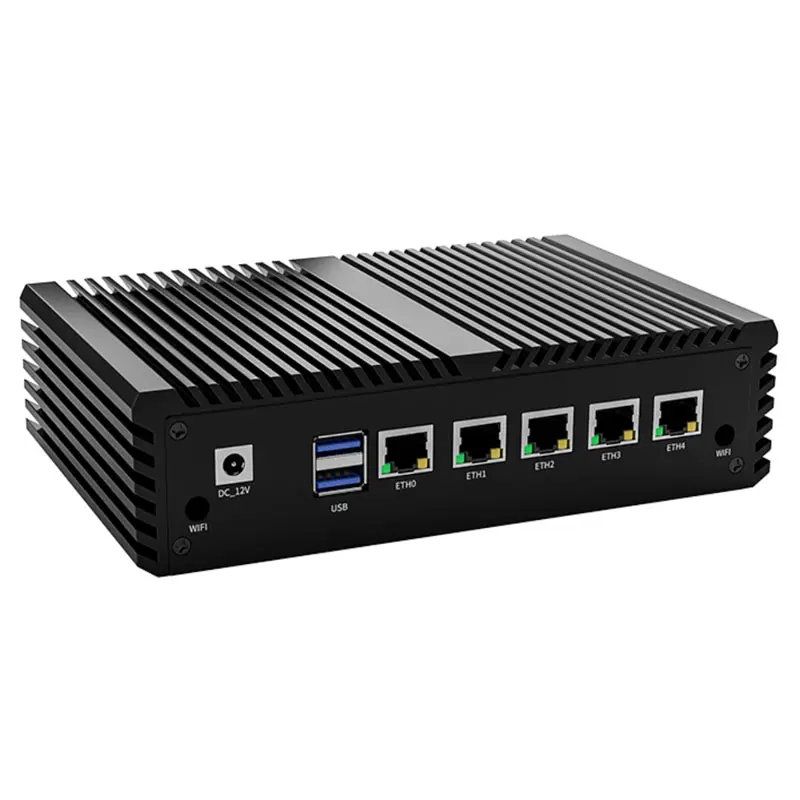

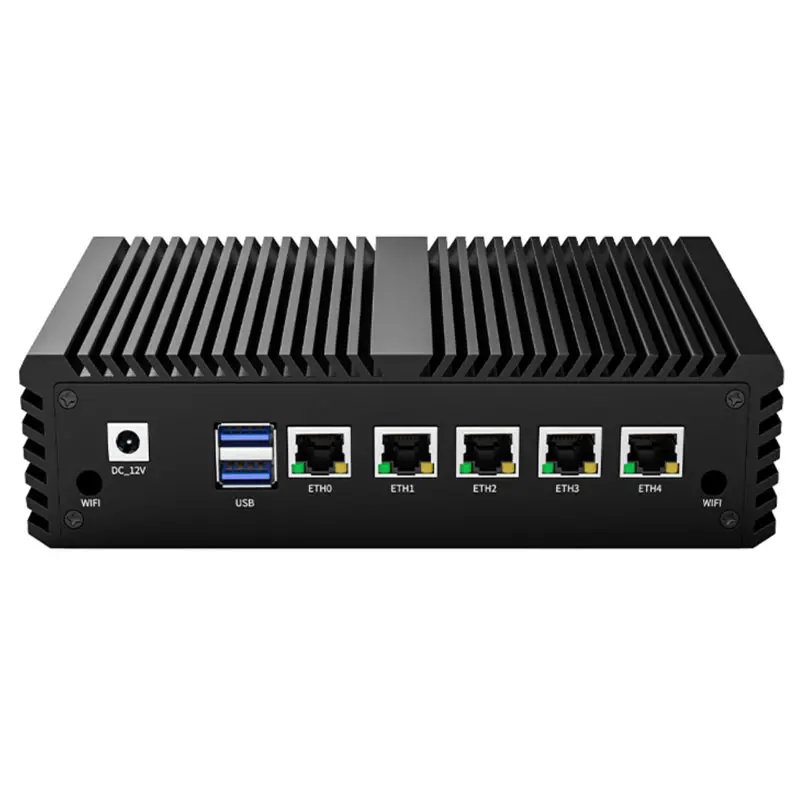

| Rear Panel | 5 x Intel LAN |
| 1 x DC-12V | |
| 2 x USB3.0 | |
| 2 x WiFi Holes | |
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc |
| Cooling Mode | Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours |
| Power Supply | DC24V-5A 5.5*2.5 |
| Packing List | H10 mini pc, power supply, power cord, vesa bracket, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
