Overview
The H9 Mini PC, a robust, fanless system, runs 24/7. With versatile CPUs, 6 Intel LAN ports, and AES-NI support, it suits diverse OS environments for professional and industrial uses. The small, sleek design fits desktop or Vesa mounts, ensuring top-notch performance in harsh conditions.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 178 x 126 x 56（mm） |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type |
| Vesa mounted installtion | |
| CPU | Intel Celeron Processor J4125, 4M Cache, up to 2.70 GHz |
| Intel Celeron Processor 5205U, 2M Cache, 1.90 GHz | |
| Intel Pentium Gold Processor 6405U, 2M Cache, 2.40 GHz | |
| Intel Core i7 8650U Processor, 8M Cache, up to 4.20 GHz | |
| Intel Core i5 10210U Processor, 6M Cache, up to 4.20 GHz | |
| Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz | |
| Network Card | 6 x INTEL I211/82574L/I225 network port(Depend on CPU) |
| Memory | 2 x DDR4 2133 MHz SODIMM memory slots, up to 64GB |
| 2 x DDR4 2400 MHz SODIMM memory slots, up to 16GB(J4125) | |
| Storage | 1 x mSATA, 1 x 2.5-inch hard drive |
| Graphic | Intel UHD Graphiacs |
| Function | Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc |
| Display | 1 x HDMI |
| Expand | Support 1 MINIPCIE half-height channel (WIFI/Bluetooth available) |

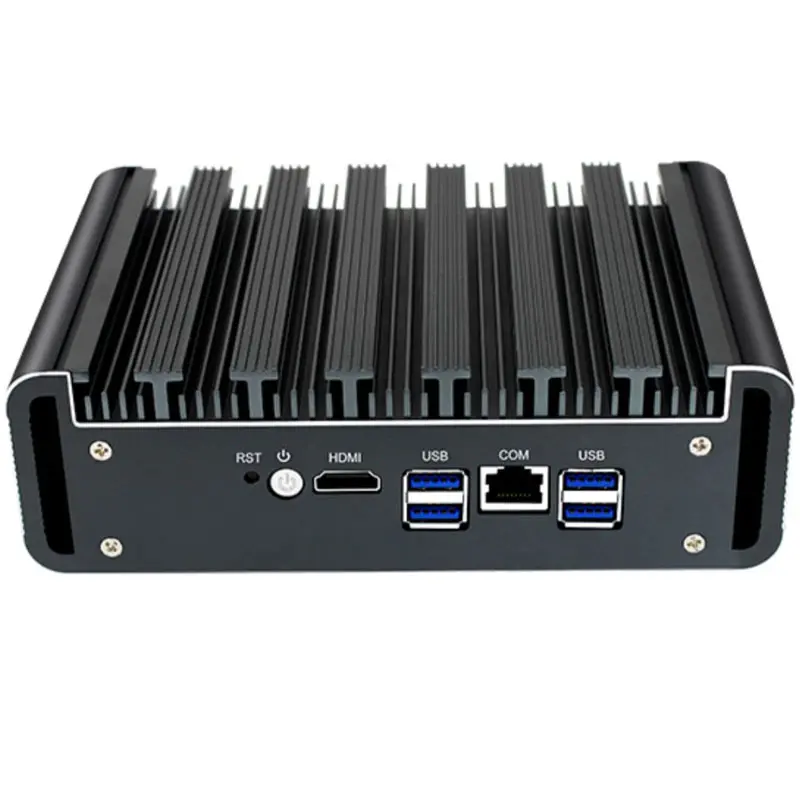

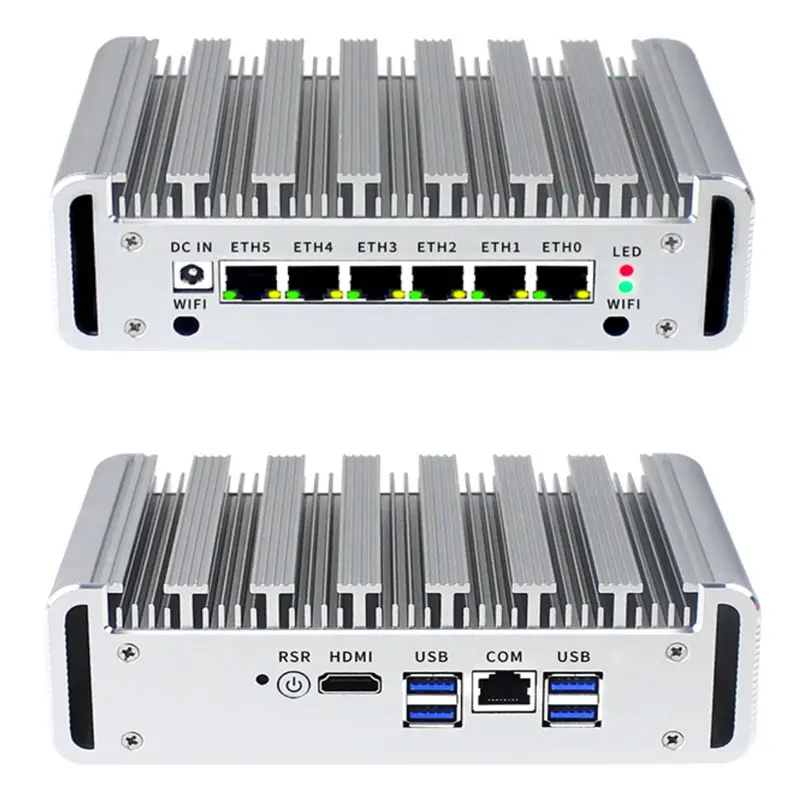

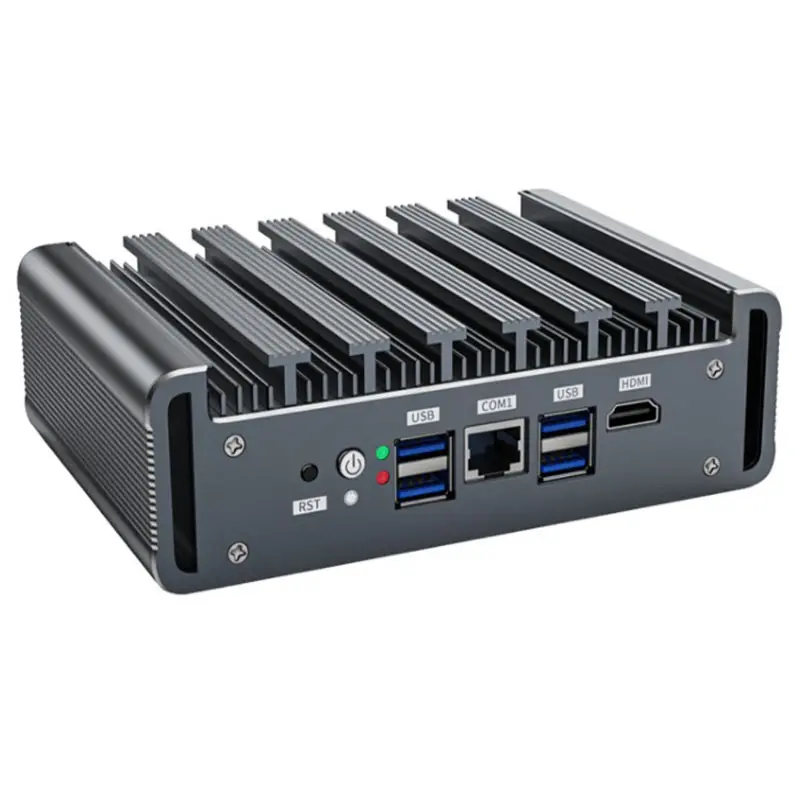

| Front Panel | 1 x Reset button |
| 1 x Power button | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 1 x COM | |

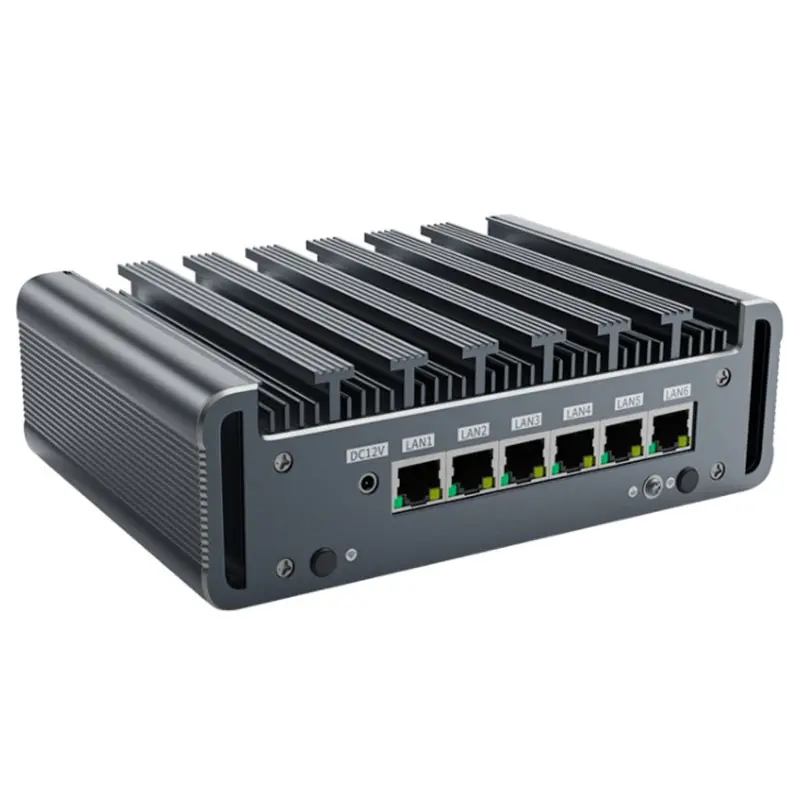

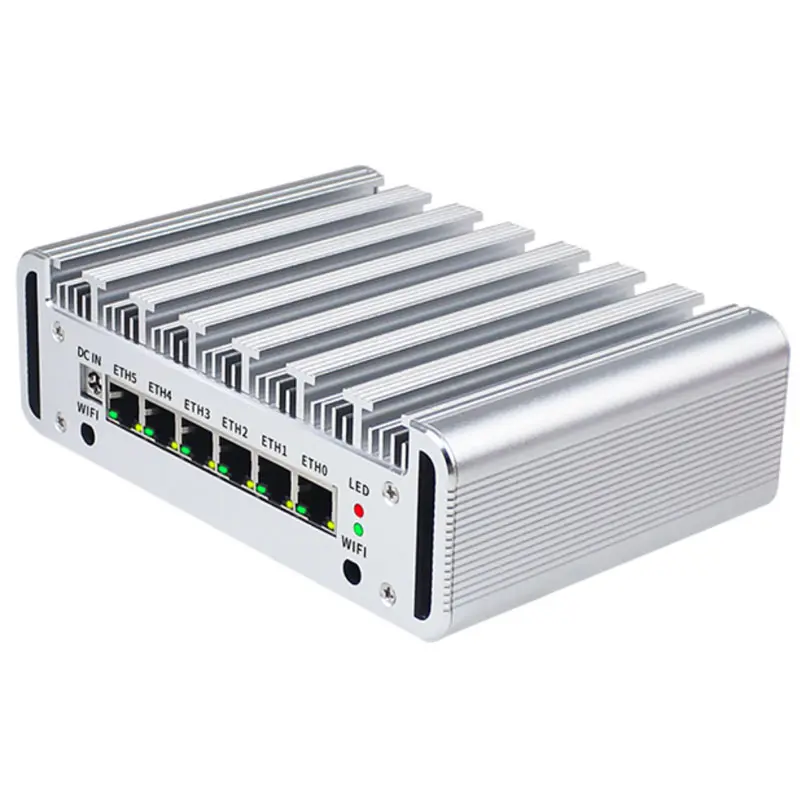

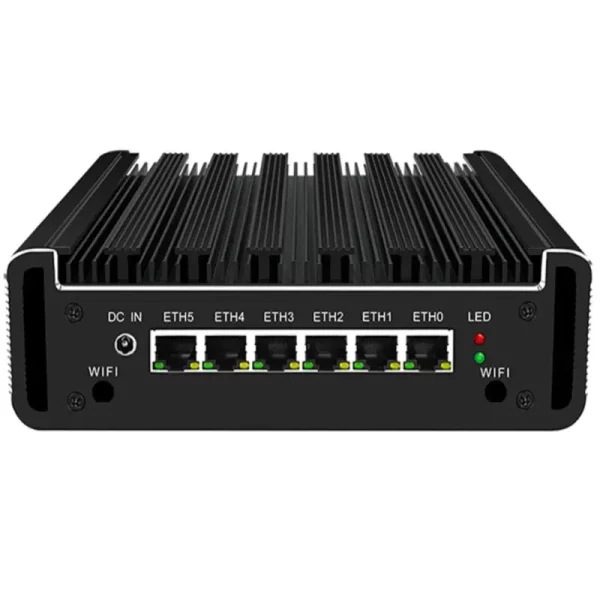

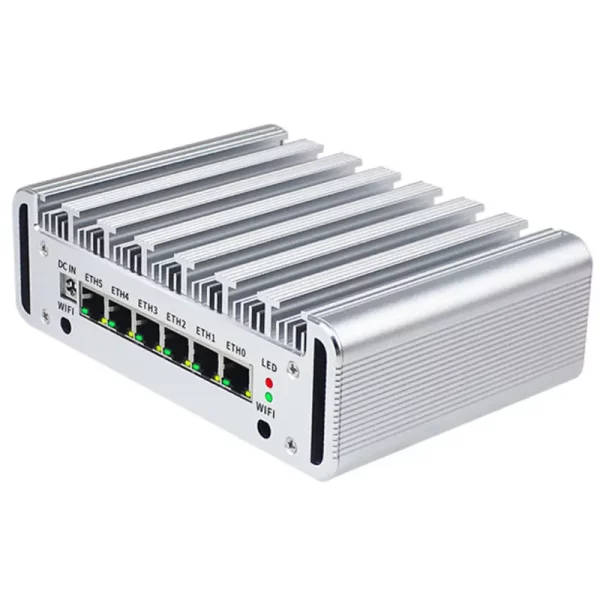

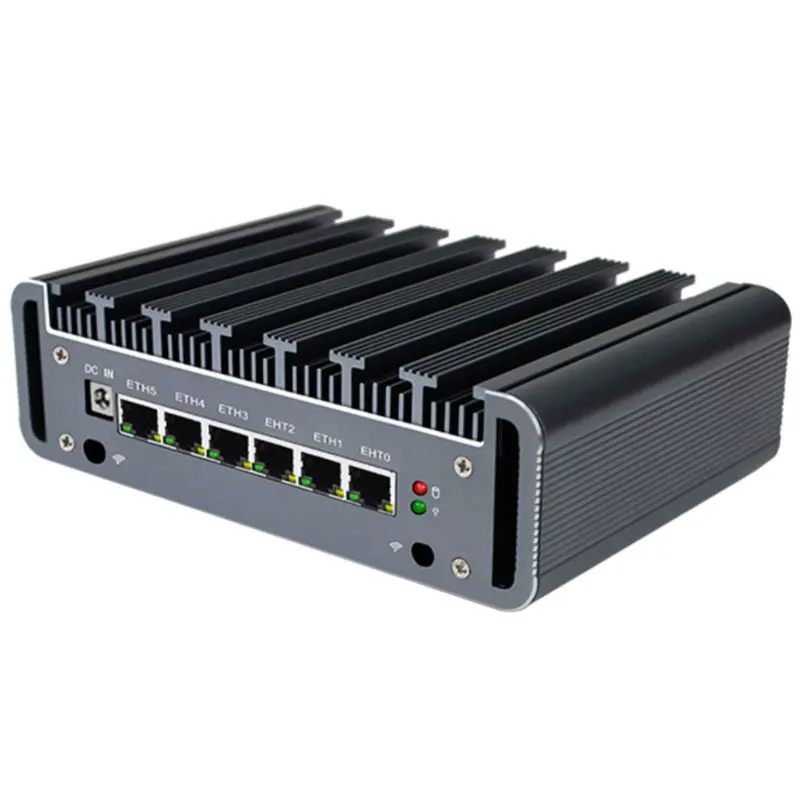

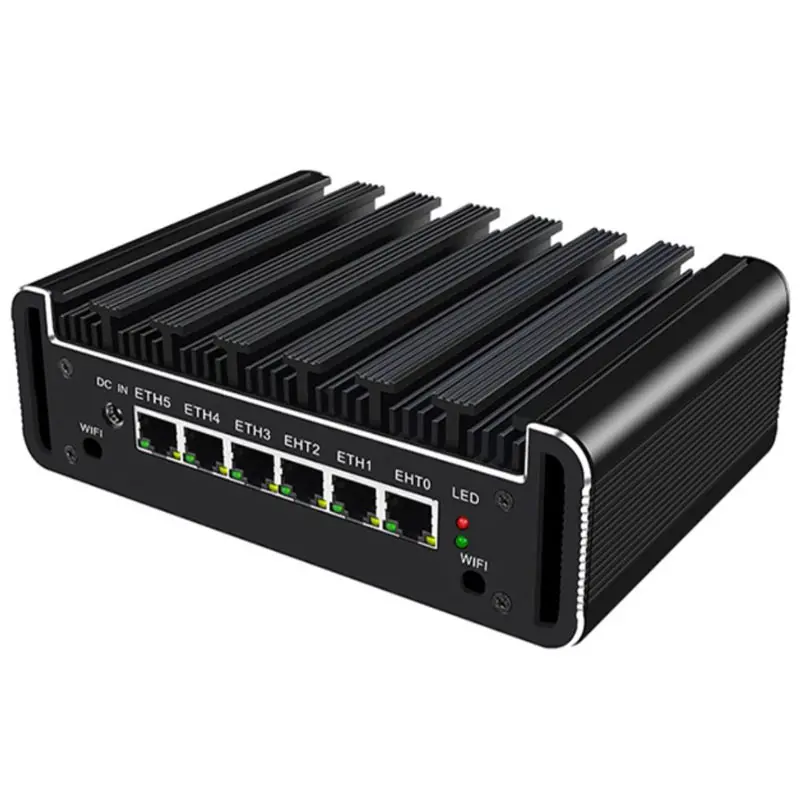

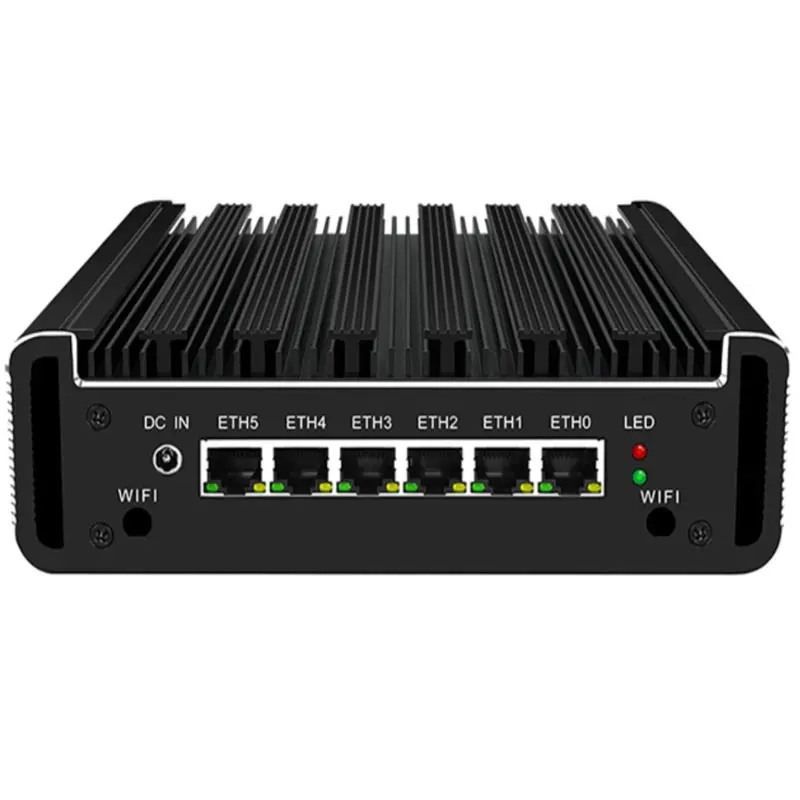

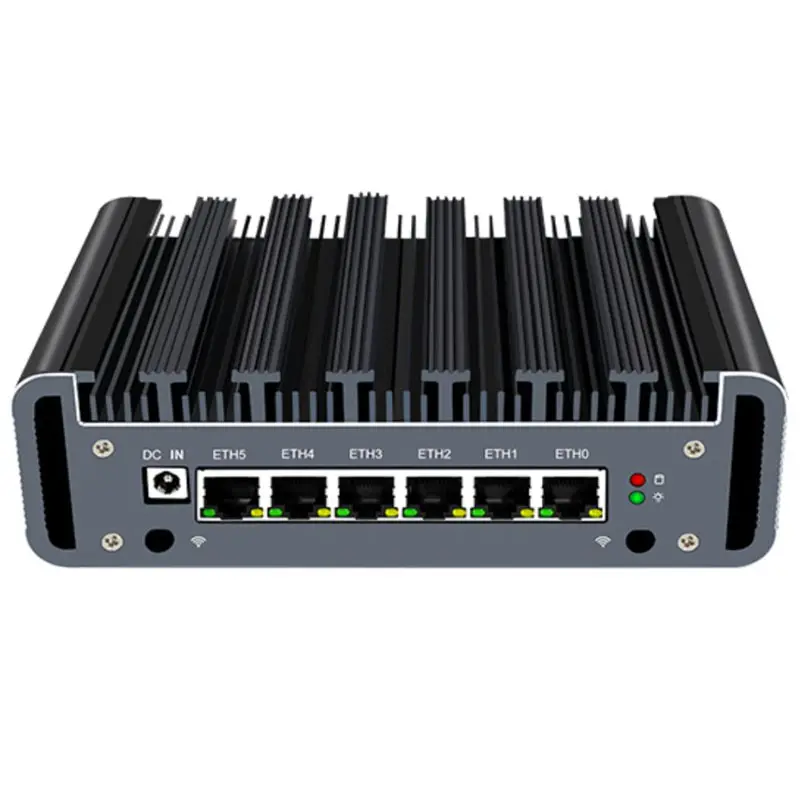

| Rear Panel | 6 x Intel LAN |
| 1 x DC-IN | |
| 1 x Hard disk/power indicator | |
| 2 x WiFi Holes | |
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc |
| Cooling Mode | Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours |
| Power Supply | DC12V-6A 5.5*2.5, |
| DC12V-4A 5.5*2.5 | |
| Packing List | H9 mini pc, power supply, power cord, vesa bracket, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
