Overview
This rugged industrial PC features Intel Celeron 3855U, i3-6100U, i5-6200U, or i7-6500U processors, delivering versatile computing power for demanding applications. With up to 16GB DDR4 RAM, it ensures smooth multitasking, while dual storage options (1x mSATA + 1x 2.5″ HDD) provide flexible configurations.
Designed for industrial automation and surveillance, it includes 5x Gigabit LAN ports (4x PoE 802.3af) to power IP cameras and networked devices, along with 32-channel opto-isolated GPIO for reliable signal control. Expansion is seamless via mini PCIe (WiFi/3G/4G) and an embedded SIM slot, while its wide 9-36V DC input ensures stable operation in harsh power environments.
Ideal for edge computing, IoT gateways, and machine control, this system combines performance, durability, and scalability.
Specification
|
Model
|
Partaker I22 Machine Vision Industrial PC
|
|
Case
|
High-quality pure aluminum mini pc case
|
|
CPU
|
Adopt Intel Skylake Celeron 3855U Dual Core 1.6GHz; Core I3 6100U, i5 6200U,
i7 6500U is optional |
|
Display chip
|
Integrated Intel HD Graphics 510/520
|
|
Mainboard
|
17*17CM mini itx motherboard
|
|
Usable system
|
Win 7/8/10, linux OS
|
|
Memory
|
Support 1*DDR4 1866/2133Mhz ram slot , max 16GB
|
|
Storage
|
1*SATA3.0, 1*MSATA
|
|
Display port
|
1*VGA, 1*HD
|
|
BIOS
|
SPI AMI EFI BIOS
|
|

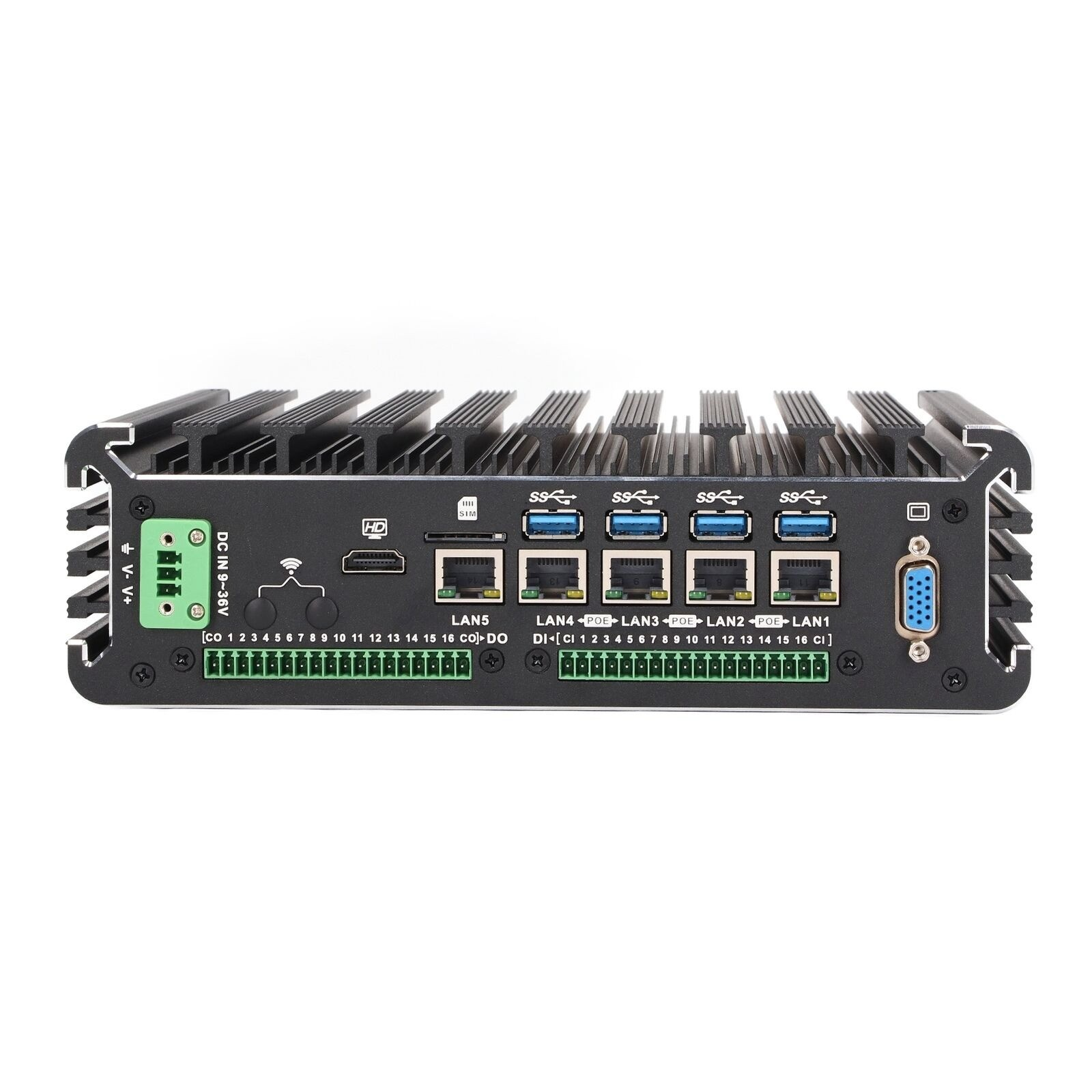

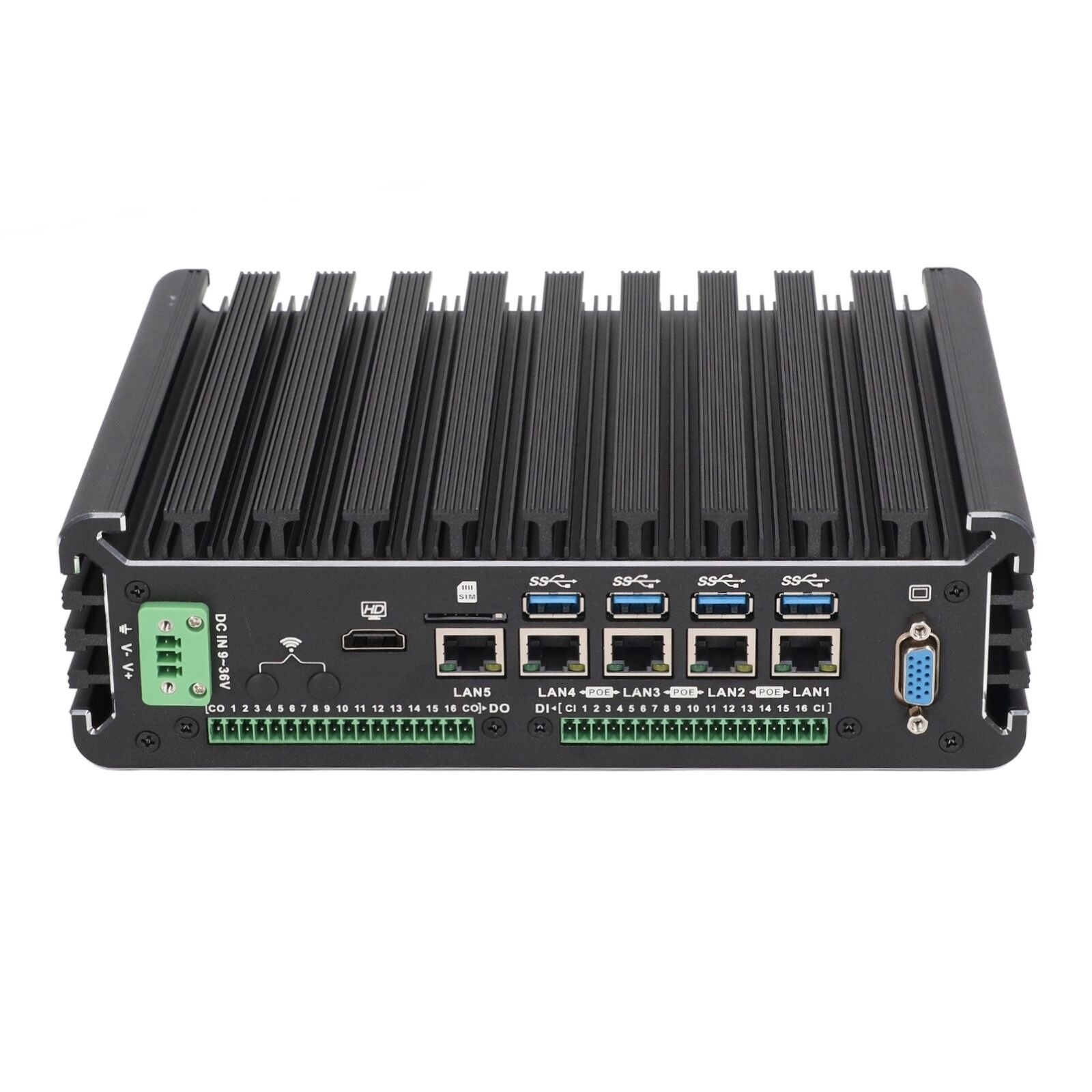

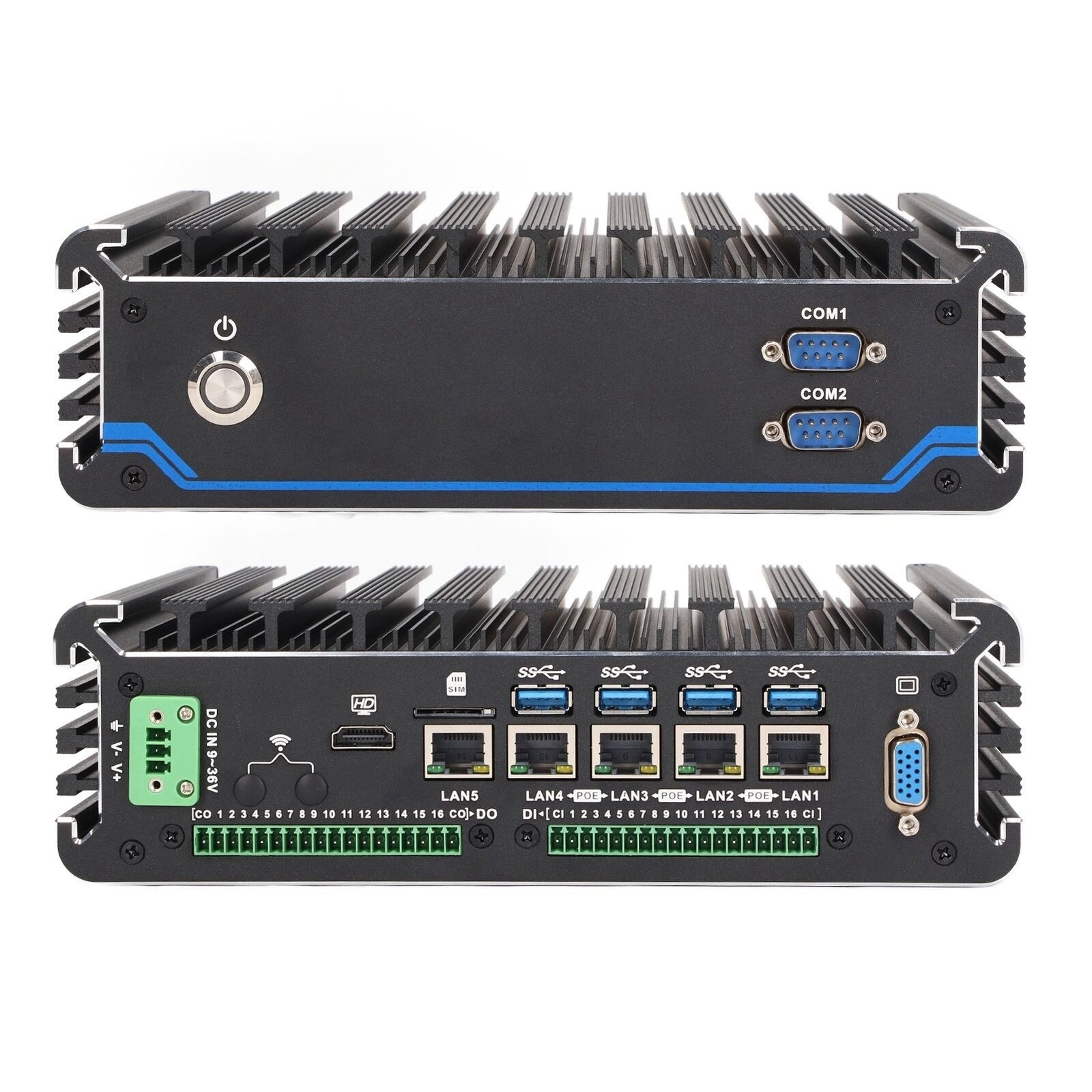

Rear I/O
|
1*HD
|
|
4*USB3.0
|
|
|
1*2Pin Phoenix Terminal
|
|
|
5*Intel Lan (4*Lan support 802.3af standard POE port)
|
|
|
1*VGA
|
|
|
2*18Pin GPIO Phoenix Terminal (with optocoupler isolation function)
|
|
|
6*COM (2*COM support RS422/485) (10*COM Optional)
|
|
|

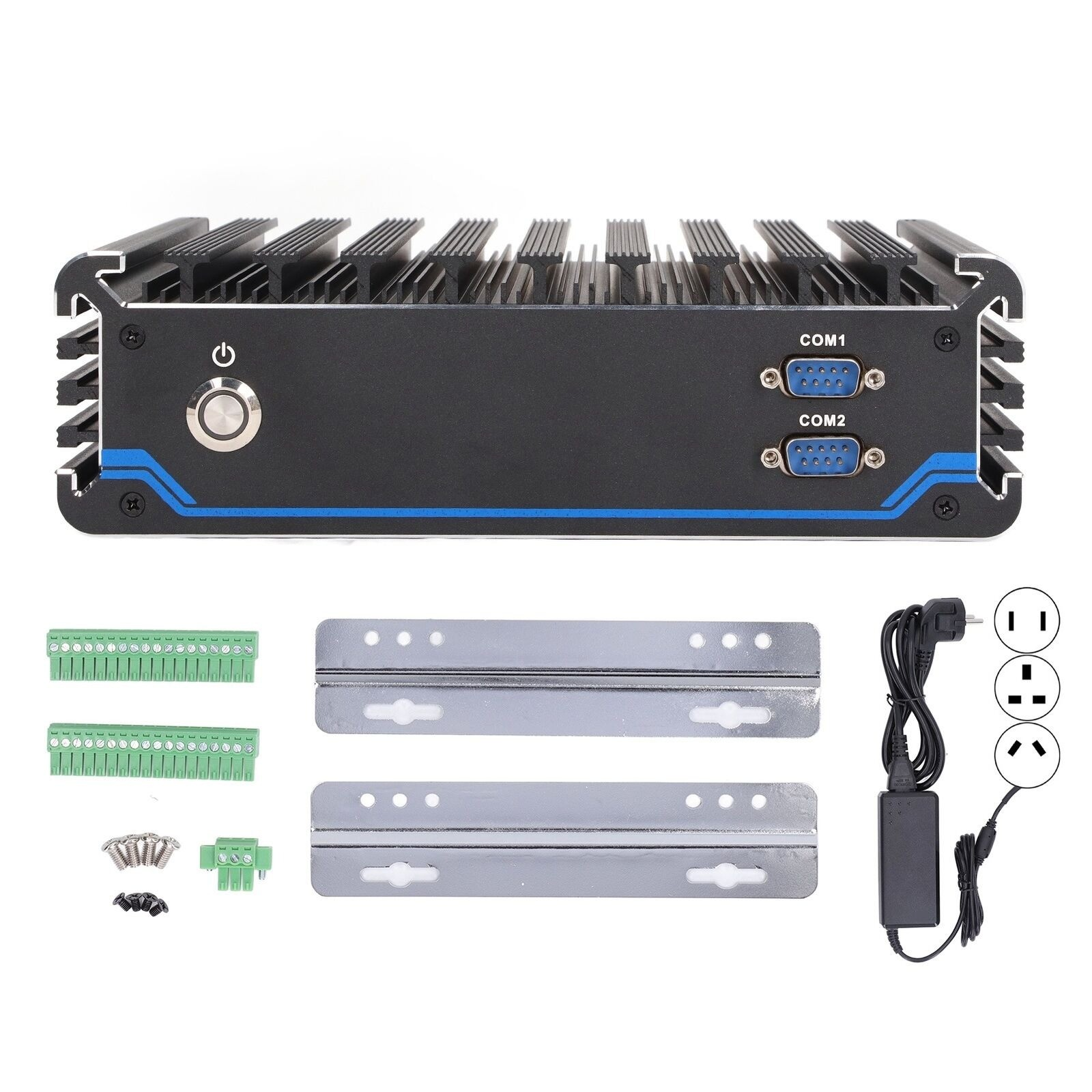

Front I/O
|
2*COM (COM2 support RS232/485 optional)
|
|
1*Power Switch
|
|
|
expansion slot
|
1*Mini-PCIE (support Wifi/3G/4G optional), Embedded SIM Slot;
1*Mini-PCIE (support MSATA) |
|
Network
|
5*Intel i211-AT 10/100/1000M Lan (4*Lan support 802.3af standard POE port)
|
|
Power supply
|
Support 9V ~ 36V wide voltage
|
|
Work temp
|
0℃ ~ +50℃ (HDD),-20℃ ~ +60℃ (SSD), Surface air flow
|
|
Work humidity
|
5%~95% non-condensing
|
|
Dimension
|
237 * 164 * 70.5mm
|
|
Applications
|
Applied in Automat, Machine Vision, Digital signage, kiosk, Energy, telecommunication, Networking, Transportation, IP camera etc.
|
