Overview

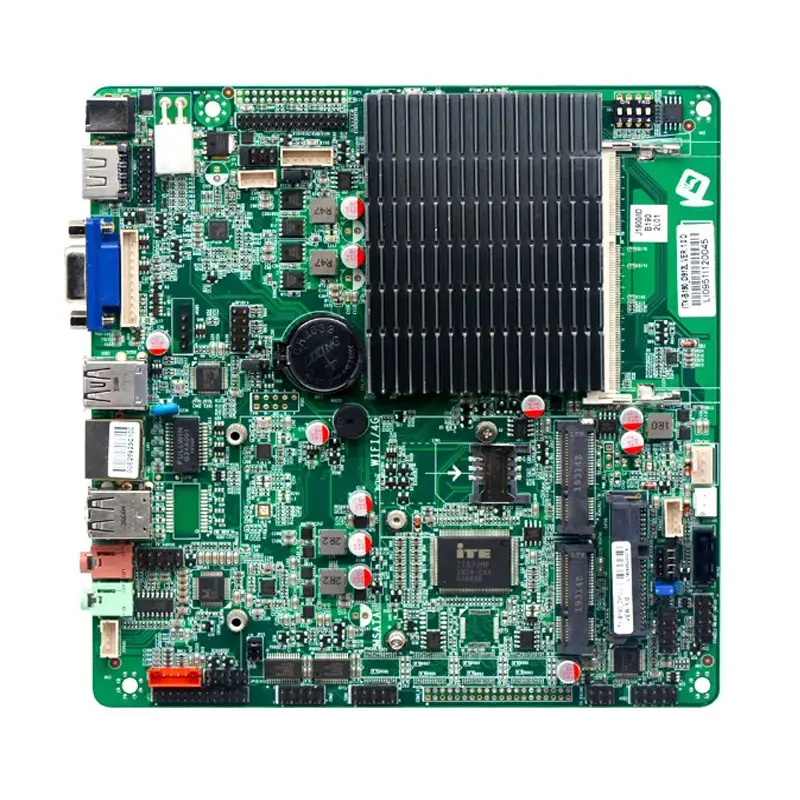

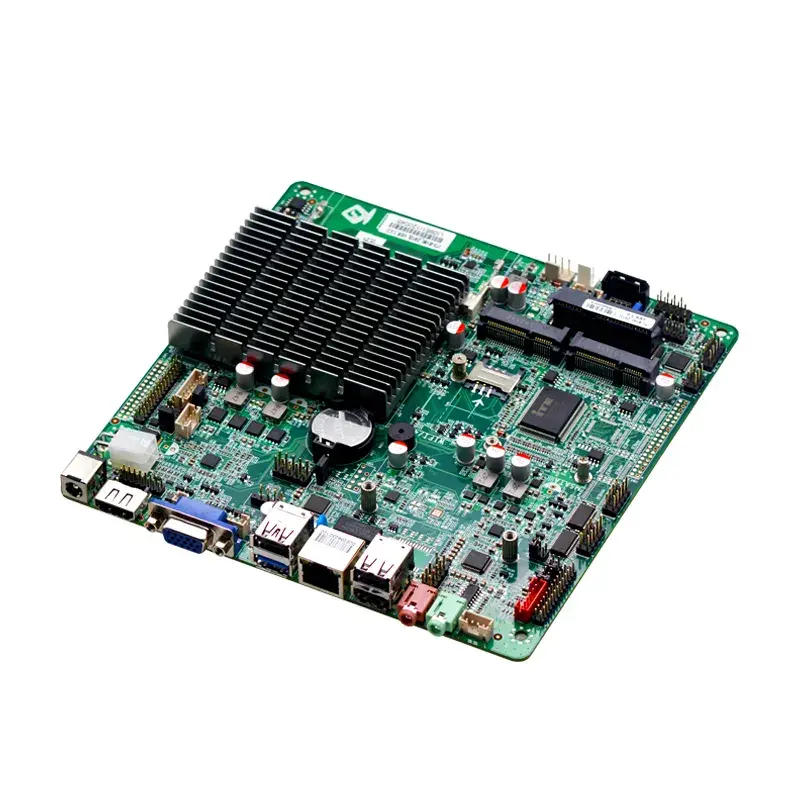

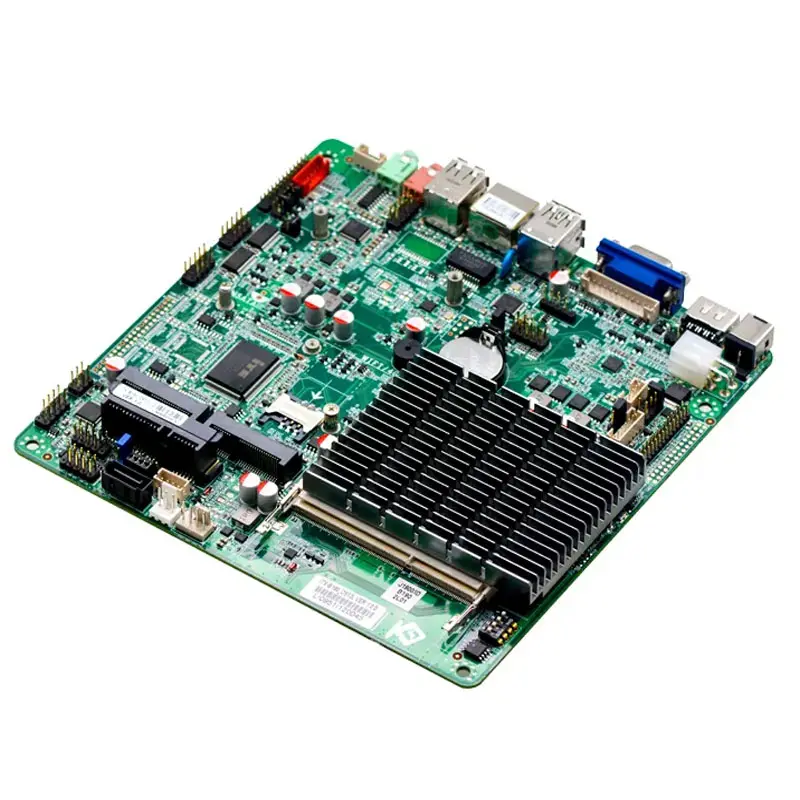

The ITX-B190_D912L VER:1.5 motherboard features an integrated Intel® Celeron J1900 processor, support for Bay Trail series CPUs, and DDR3L memory up to 8GB. It supports various displays, multiple storage options, gigabit ethernet, audio amplification, and extensive I/O ports. With fanless cooling and a compact design, it’s ideal for diverse computing needs in limited spaces.
Specifications
| Model No. | ITX-B190_D912L VER:1.5 |
| Processor | Integrated Intel® Celeron J1900/2.00GHz quad core processor,TDP 10W |
| Compatible Intel® Bay Trail -I/M/D series CPU | |
| Chipset | Based on Intel® Bay trail SOC platform |
| Memory | 1*SODDR3L SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
| Graphics | Integrated Intel® HD Graphics |
| 1* VGA,1*HD OUTPUT,1* LVDS | |
| Support VGA;HD OUTPUT;LVDS synchronous/asynchronous display | |
| Network | 1* Realtek RTL8111H gigabit ethernet ,support wake on LAN/PXE |
| Storage | 1* SATA2.0 HDD port (SATA2 with 2.5 inch laptop HDD slot optional) |
| 1* SATA 2.5 inch laptop HDD slot ,can install HDD directly | |
| 1* MSATA slot,support SSD,the transfer rate up to 3Gbps | |
| Audio | Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier. |
| Support amplifer 2Ω5W trumpet | |
| Expansion slots | 1* Mini-PCIE slot,support WIFI,4G module |

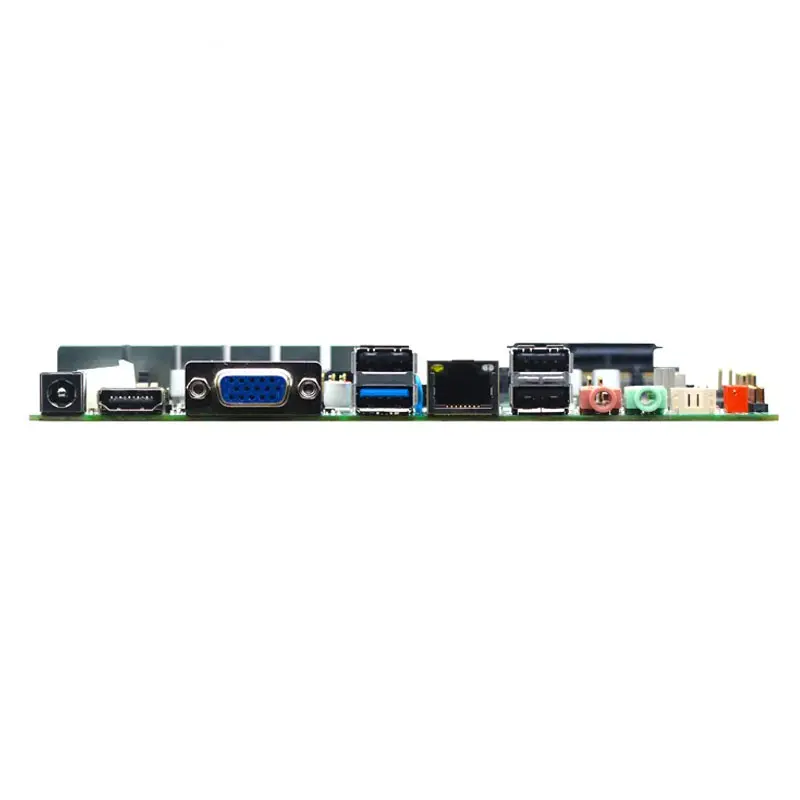

| Rear I/O | 1* HD OUTPUT |
| 1* VGA | |
| 3* USB 2.0 | |
| 1* USB3.0 | |
| 1* RJ-45 Gigabit Ethernet connector | |
| 1* Line out(Green),1* MIC(Red) | |
| 1* 12V DC power input port | |
| Internal I/O | 1* 4pin ATX power port (can do 12V input/output power port ) |
| 1* USB2.0 1*5pin | |
| 4* USB 2.0 2*5Pin,USB5 with USB1 optional | |
| 1* J_HD OUTPUT 2*8Pin(the same signal with HD OUTPUT1) | |
| 1* JVGA 1*12Pin(the same signal with DB15) | |
| 1* LVDS 2*15pin,support dual channel 24bit, | |
| 1* screen backlight power supply port 1*6pin | |
| 1* screen brightness adjustment port 1*4pin | |
| 1* PS/2 KB/MS port (Red) 1*6Pin | |
| 2* RS232 serial ports ,COM1/COM2 support 9pin charged function,COM2 support RS485 mode | |
| 1* LPT print port 2*13Pin | |
| 1* front audio port 2*5pin | |
| 1* Front panel function button and indicator LED port 2*5pin | |
| 1* HDD power supply port 1*4pin | |
| 1* power amplifier 1*4pin | |
| 1* SIM card socket | |
| FAN connector | Fanless cooling ,Reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector |
| GPIO | Support 4 way input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Watch dog | Support hardware reset function (L256, 0~255 seconds) |
| OS | Windows 7/Windows 10/Linux |
| Power input | Adopt DC 12V power supply |
| Working Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 170mm x 170mm |
