Overview
Presenting our top-tier mini PC, crafted in high-quality aluminum with versatile installation options. Featuring Intel Core i3/i5/i7 processors, 4K dual HDMI display, and expandable memory up to 32GB DDR4. With dual RTL8111H Ethernet ports, M.2 and SSD/HDD storage, and multiple expansion slots, it’s ideal for industrial applications. Its fanless design, robust BIOS, and broad OS compatibility ensure reliable performance in various environments.”
Specifications
| Material | High-quality all aluminum |
| Colour | Metallic Black (color can be customized) |

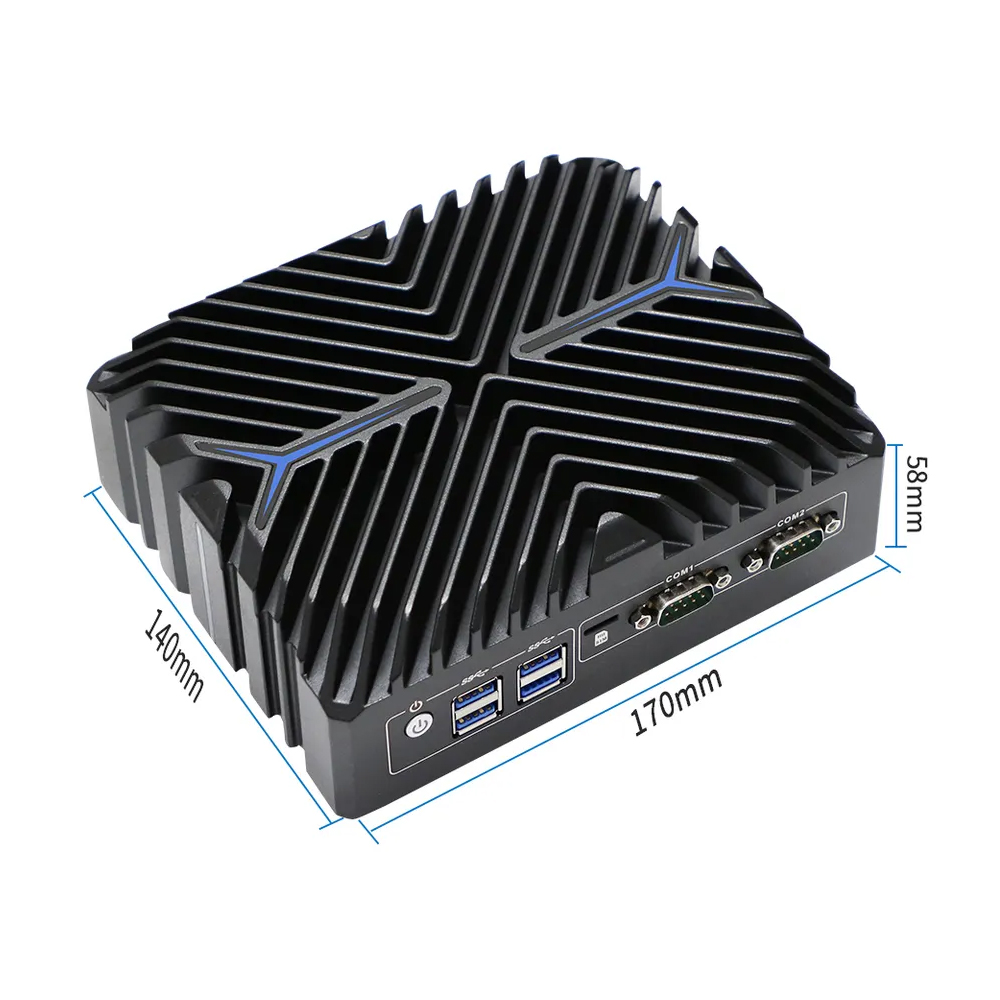

| Size | 170 * 140 * 58 mm |
| Weight | 1.5Kgs |
| Insallation Method | With VESA, Wall-mounted, embedded, desktop, Din Rail |
| CPU | Intel Core i3 1215U (Six core Eight threads, Turbo. 4.4 GHz) |
| Intel Core i5 1235U (Ten core Twelve threads, Turbo. 4.4 GHz) | |
| Intel Core i7 1255U (Ten core Twelve threads, Turbo. 4.7 GHz) | |
| Display Ports | 2 x HDMI with 4K, Support Synchronous or asynchronous display, Max.4096×2160@Hz |
| Network Card | 2 x RTL8111H Gigabit Ethernet |
| Memory | 1 x DDR4 3200 SODIMM memory slot, Max. 32 GB |
| Storage | Support 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD |
| Expansion Slot | 1 x M.2 2280 M-key Slot（Support SATA Protocol） |
| 1 x Mini PCIE Slot，WiFi or 4G | |
| Expansion Port | Support 1 x M.2 2280 M-Key slot（NVME） |
| Support 1 x M.2 3052 B-key slot (USB3.0, support 4G/5G), External SIM card slot | |
| Support 1 x MINI-PCIE slot (support WIFI,BT) | |

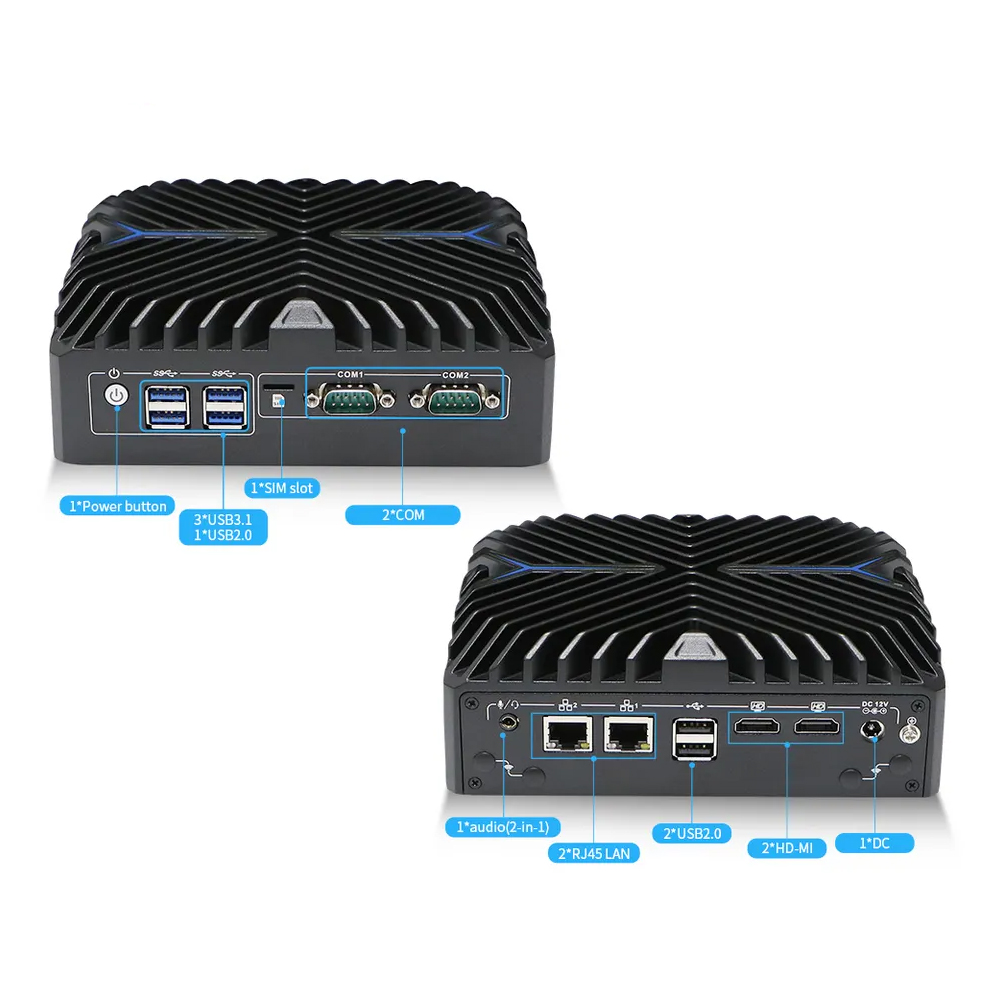

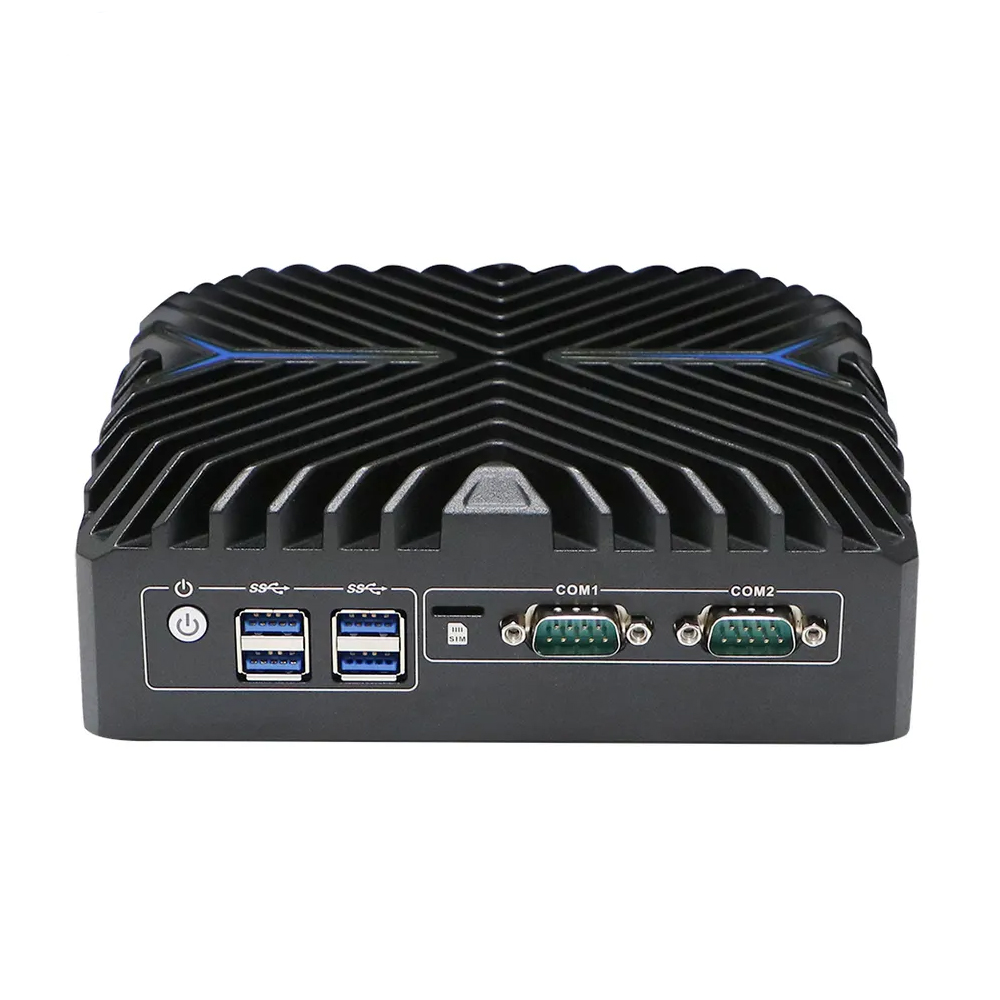

| Front Panel | 2 x COM port support RS232 mode |
| 1 x SIM slot | |
| 1 x USB2.0 | |
| 1 x Power button | |
| 3 x USB3.1 | |
| Rear Panel | 1 x DC port |
| 2 x HDMI | |
| 2 x USB2.0 | |
| 1 x RJ45 LAN | |
| 1 x Audio interface(2-in-1) | |
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11, Linux |
| Cooling Mode | Fanless |
| Power Supply | DC-IN 12V |
| Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable |
| Work Temperature | 0℃-+40℃ (business HDD), -20℃ – +50℃(industrial SSD), Surface air flow |
| Relative Humidity | 5 % ～ 95% non-condensing |
| Certification | CE FCC ROHS |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc. |
