Overview
Introducing our versatile and robust Mini PC featuring Intel Core i3/i5/i7 processors, multiple display ports, and dual Intel 2.5G LAN. With DDR5 memory support and various storage expansions, it offers exceptional performance. Equipped with comprehensive connectivity options and enhanced features like auto power on, this fanless mini PC is ideal for industrial applications. Experience seamless operations across industrial automation, IoT gateway, edge computing, and more.
Specifications
| Material | High-quality all aluminum |
| Colour | Metallic Black (color can be customized) |

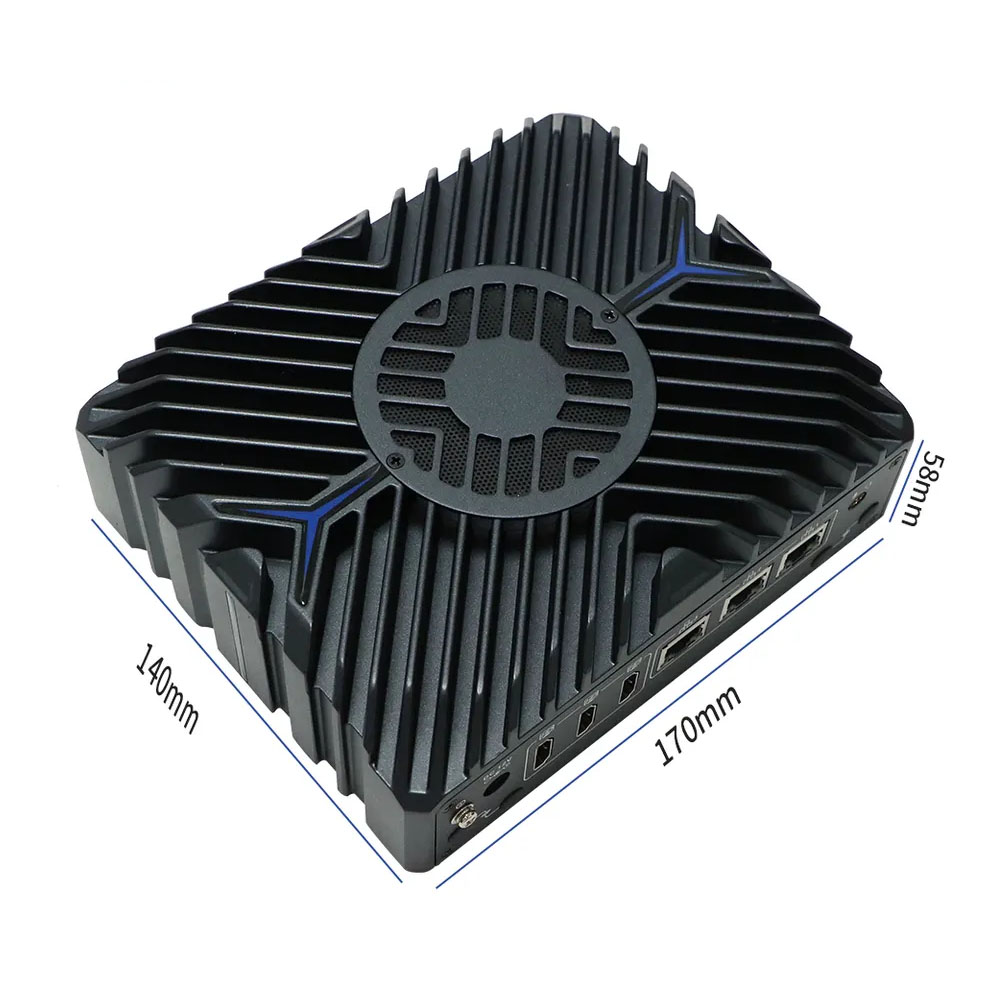

| Size | 170 * 140 * 58 mm |
| Weight | 1.5Kgs |

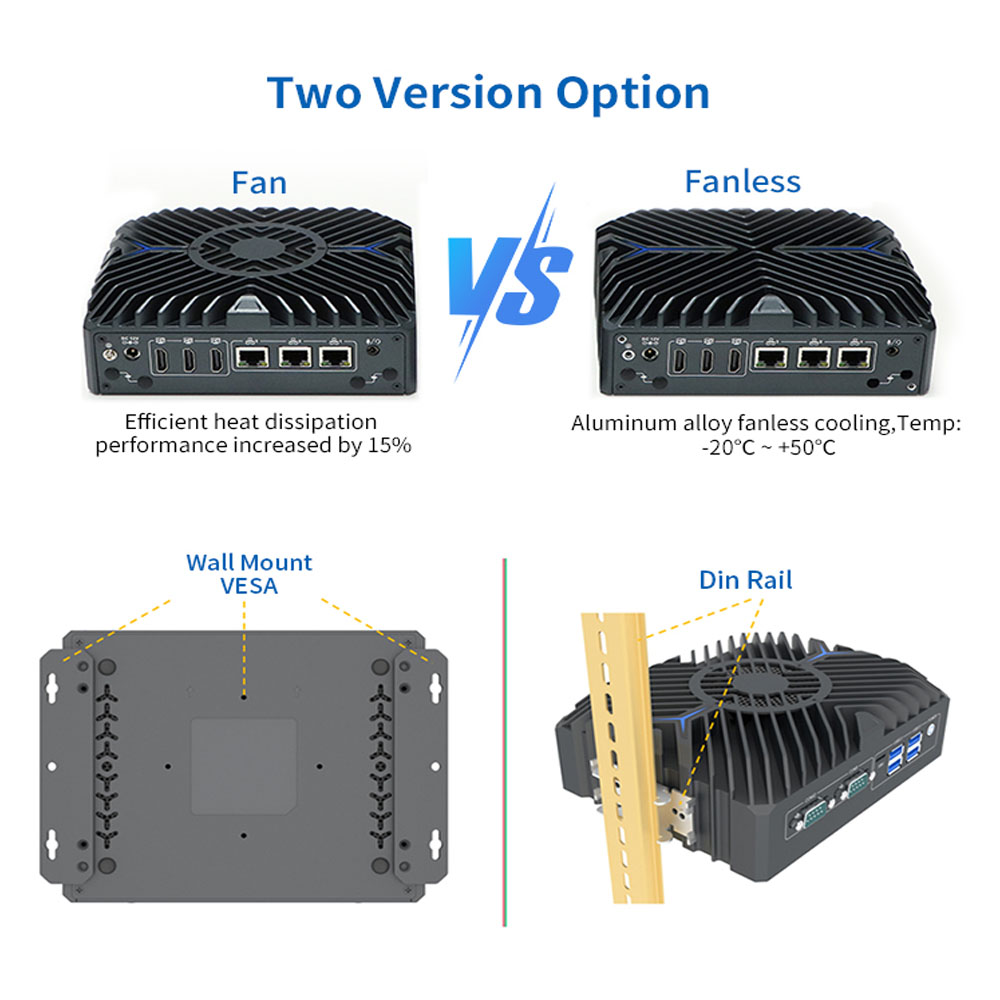

| Insallation Method | With VESA, Wall-mounted, embedded, desktop, Din Rail |
| CPU | Intel Core i3 1215U (Six core Eight threads, Turbo. 4.4 GHz) |
| Intel Core i5 1235U (Ten core Twelve threads, Turbo. 4.4 GHz) | |
| Intel Core i7 1255U (Ten core Twelve threads, Turbo. 4.7 GHz) | |
| Display Ports | 3 x HDMI with 4K, Support Synchronous or asynchronous display, Max. 4096×2160@Hz |
| Network Card | 2 x Intel i225-V 2.5G Lan |
| Memory | 1 x DDR5 4800 SODIMM memory slot，Max. 32 GB |
| Storage | Support 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD |
| Expansion | Support 1 x M.2 2280 M-Key slot（NVME） |
| Support 1 x M.2 3052 B-key slot(USB3.0 signal, support 4G/5G), External SIM card slot | |
| Support 1 x M.2 2230 E-key slot(support WIFI,BT) | |
| Other Function | Auto power on when there is electricity, Timing boot, Wake On LAN, PXE boot, Watchdog (0～255 Level), TPM2.0 security encryption |

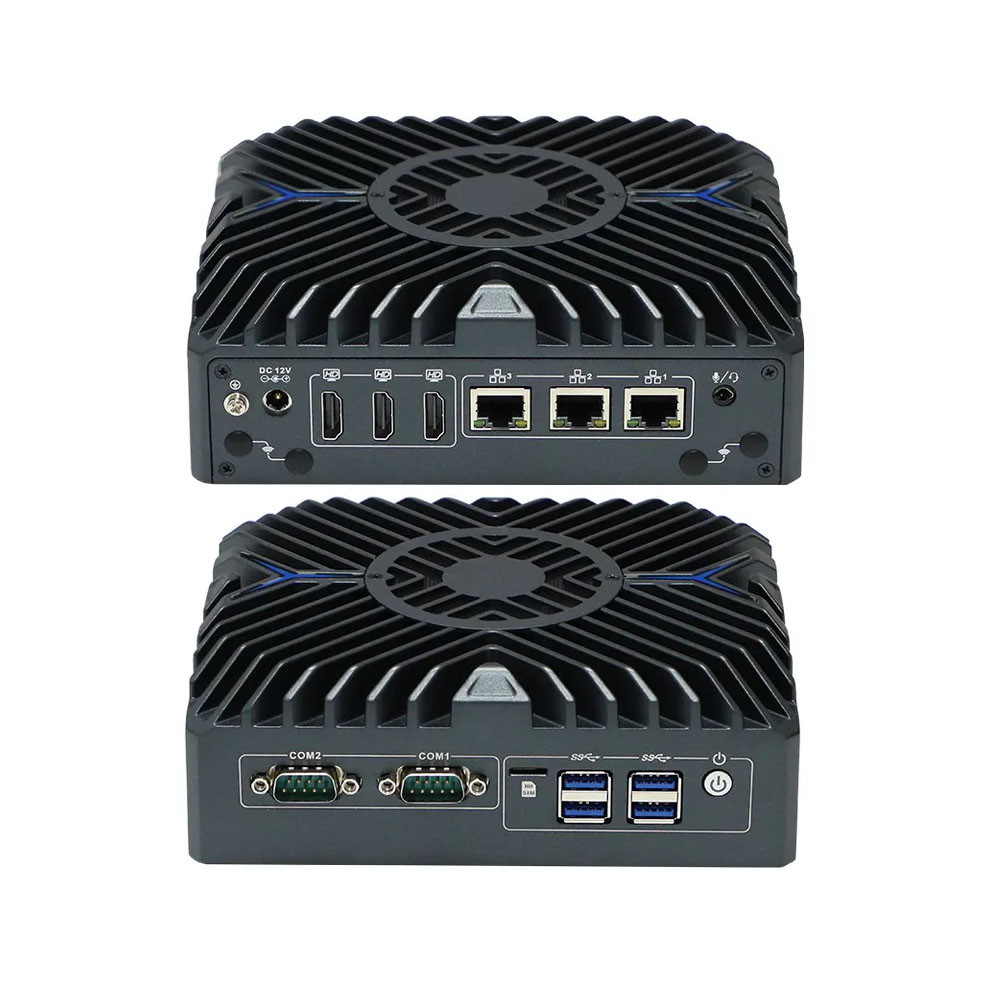

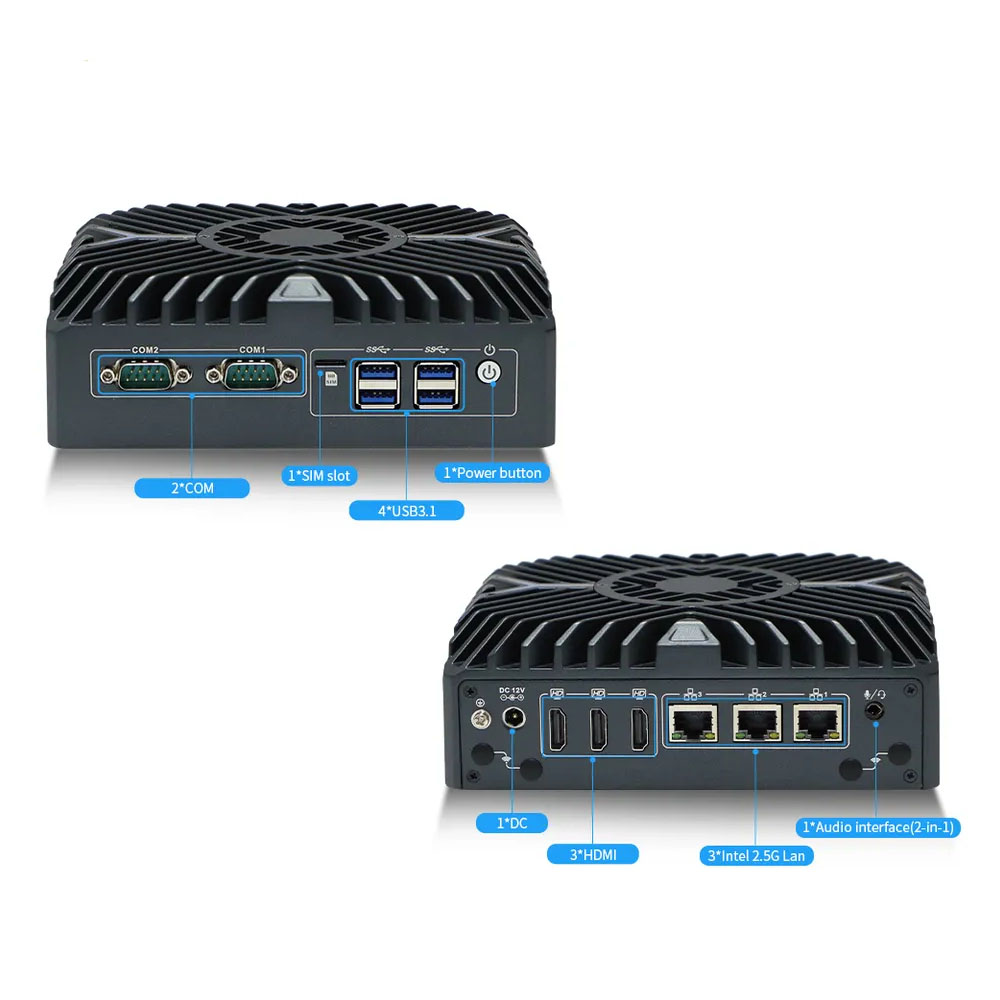

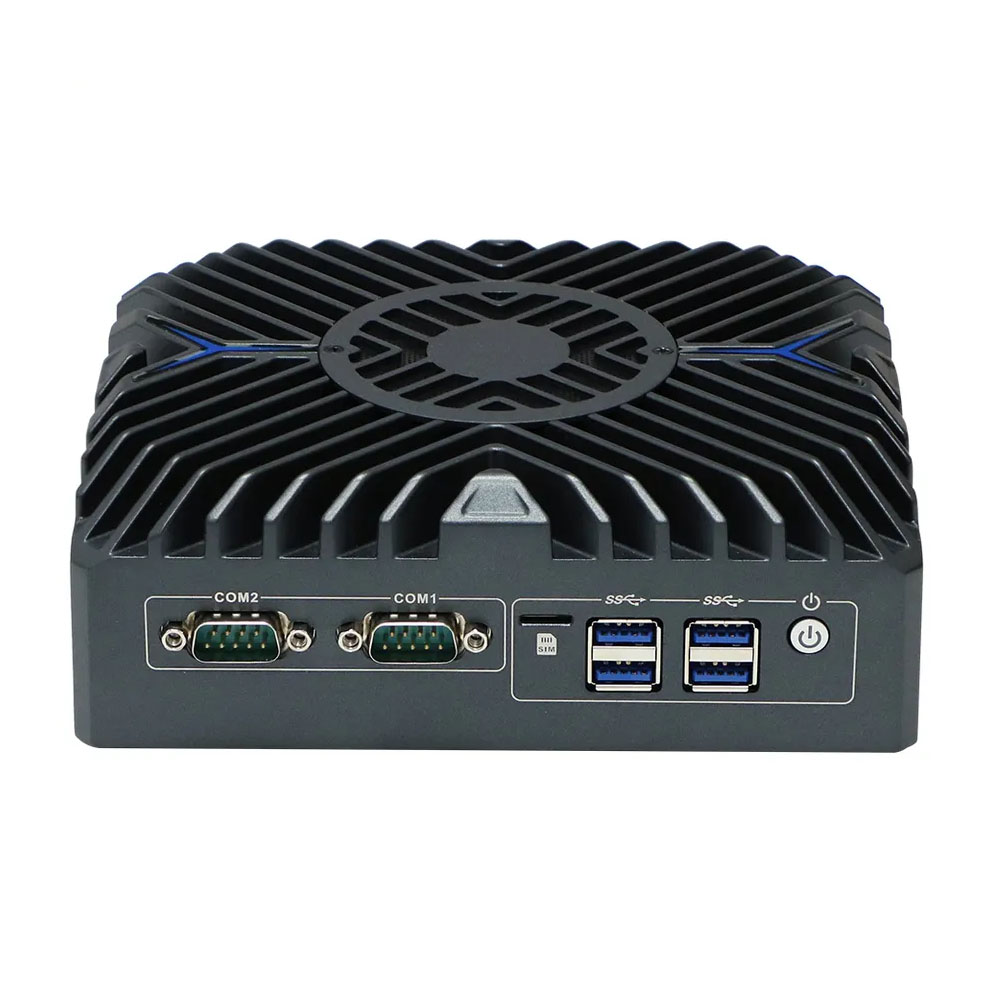

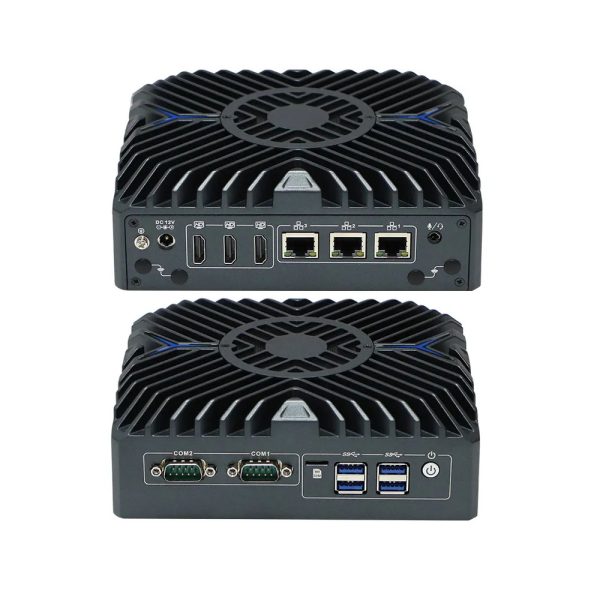

| Front Panel | 2 x COM support RS232/RS485 |
| 1 x SIM slot | |
| 1 x Power button | |
| 4 x USB3.1 | |

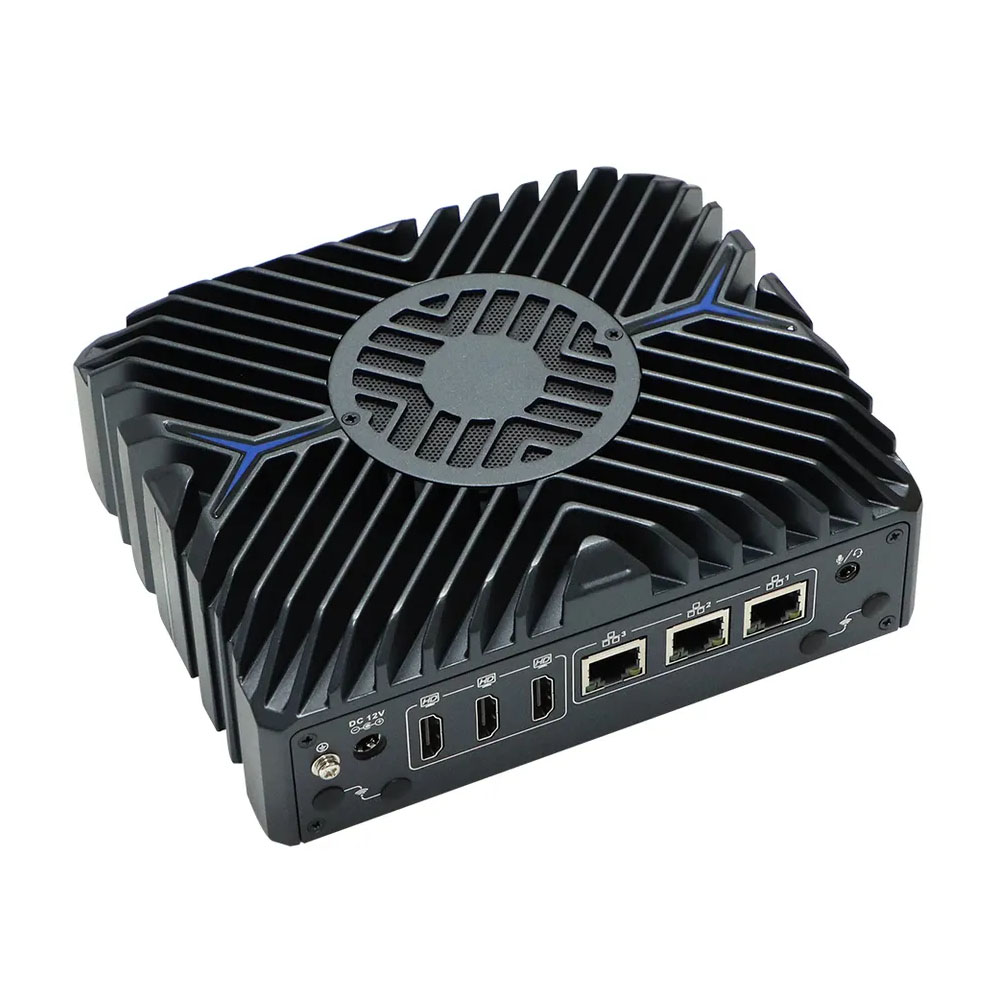

| Rear Panel | 1 x DC port |
| 3 x HDMI | |
| 4 x Antenna holes | |
| 3 x Intel 2.5G Lan | |
| 1 x Audio interface(2-in-1) | |
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11, Linux |
| Cooling Mode | Fanless/Fan Cooling |
| Power Supply | DC-IN 12V |

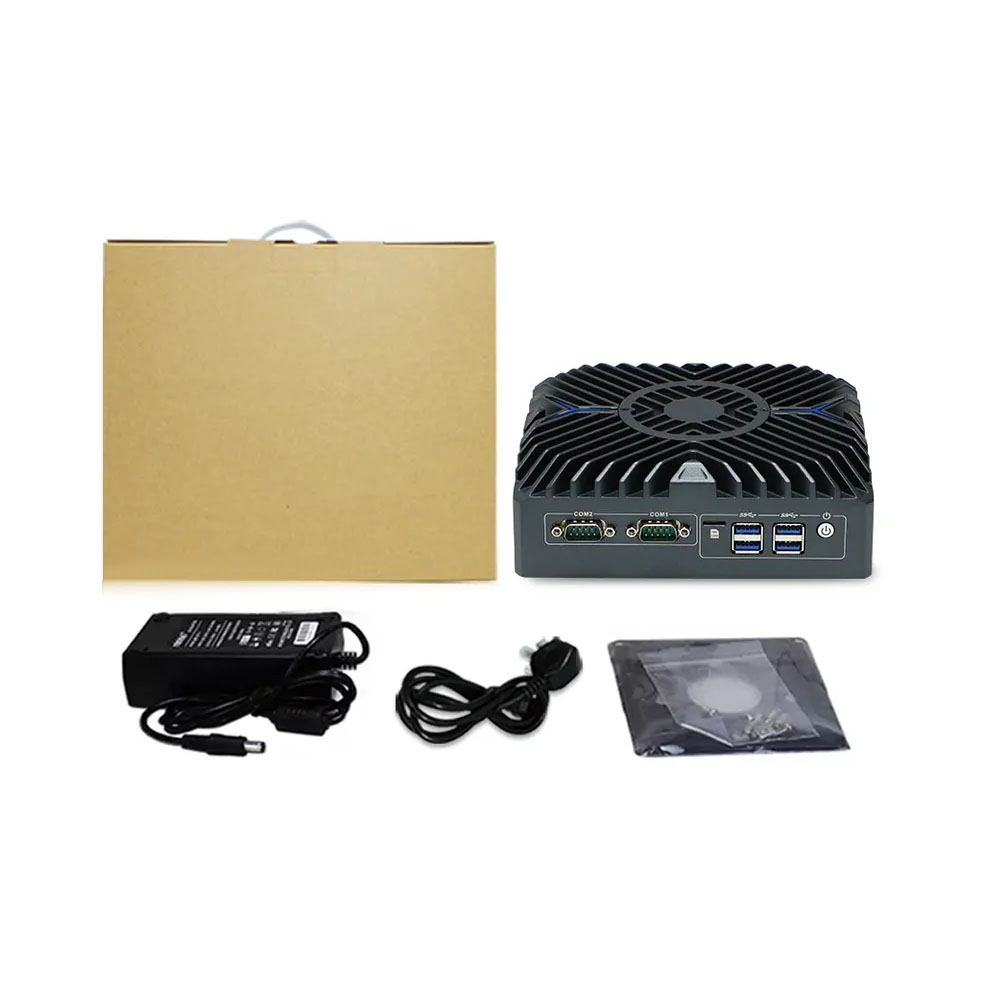

| Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable |
| Work Temperature | 0℃-+40℃ (business HDD), -20℃ – +50℃(industrial SSD), Surface air flow |
| Relative Humidity | 5 % ～ 95% non-condensing |
| Certification | CE FCC ROHS |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc |
