Overview
The P6 Mini PC is a compact and powerful computing solution. Its fanless design ensures silent operation while the aluminum alloy construction provides durability. Equipped with Intel Celeron processors, it offers reliable performance. It supports various connectivity options, including gigabit LAN, Wi-Fi, and Bluetooth. The mini PC is versatile, compatible with Windows and Linux, and suitable for different applications. It comes with a range of ports and expansion slots, making it a versatile choice for your computing needs. The P6 Mini PC is designed to operate in a wide temperature range and is certified for quality and safety. This package includes the mini PC, power supply, vertical stand, Wi-Fi antennas, and warranty card. It’s an ideal solution for compact and efficient computing
Specifications
| Material | Aluminum alloy |
| Colour | Black |

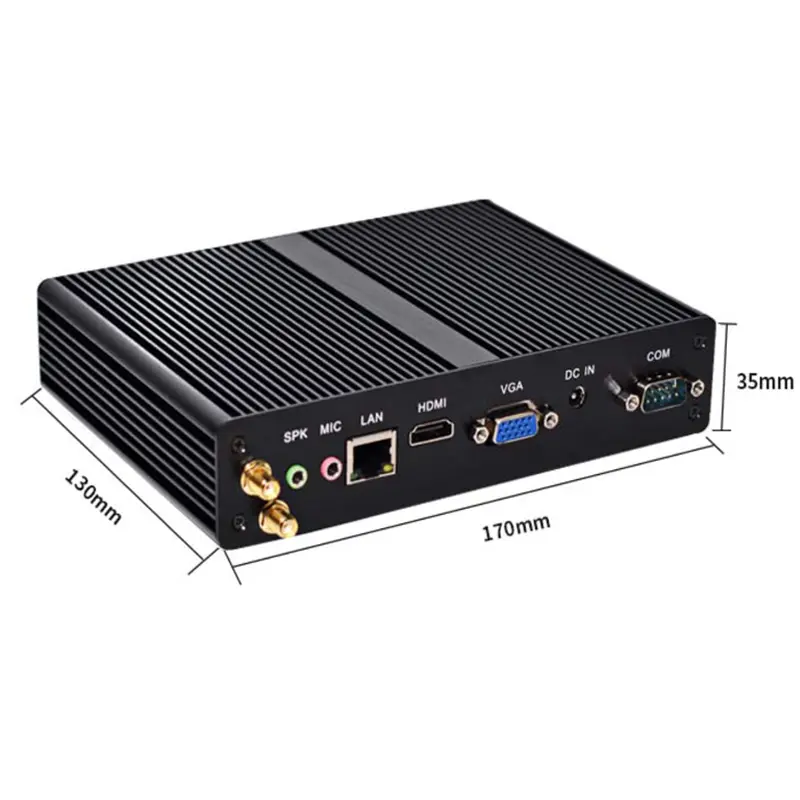

| Size | 170 x 120 x 36mm |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| CPU | Intel Celeron Processor N2920 (2M Cache, up to 2.00 GHz) |
| Intel Pentium Processor N3520 (2M Cache, up to 2.42 GHz) | |
| Chipset | SOC |
| Network Card | 1 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 1 x Mini PCIE WiFi slot |

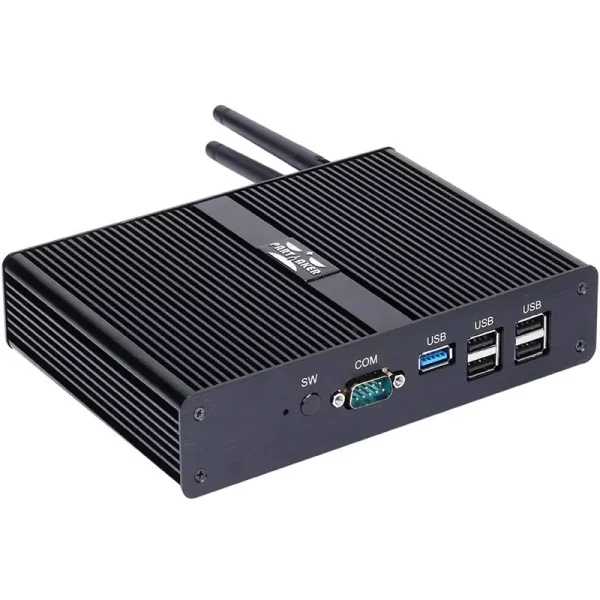

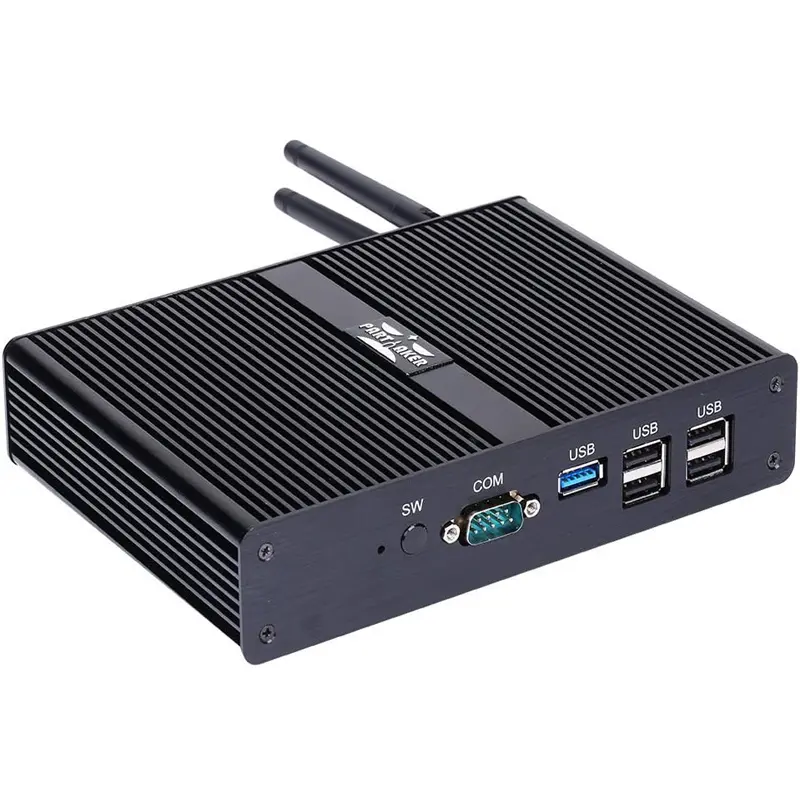

| Front Panel | 1 x Power button |
| 1 x COM RS232 | |
| 1 x USB3.0 | |
| 4 x USB2.0 | |

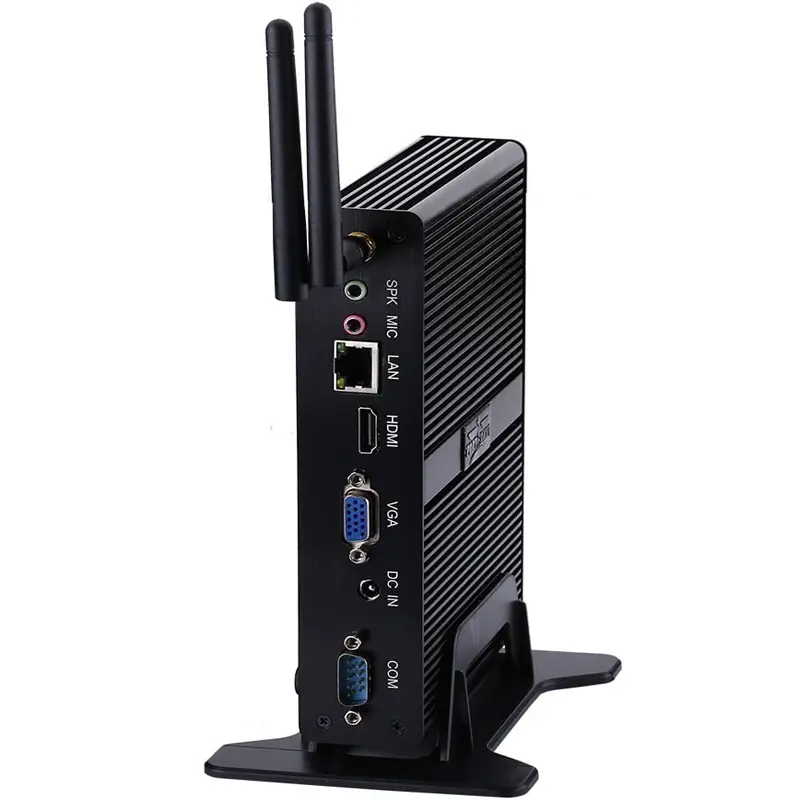

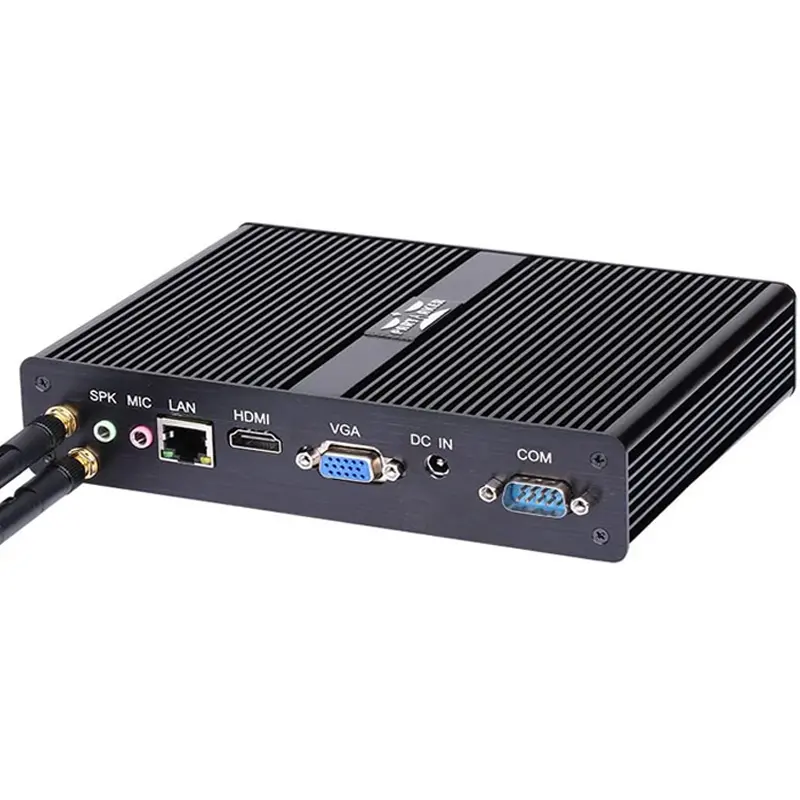

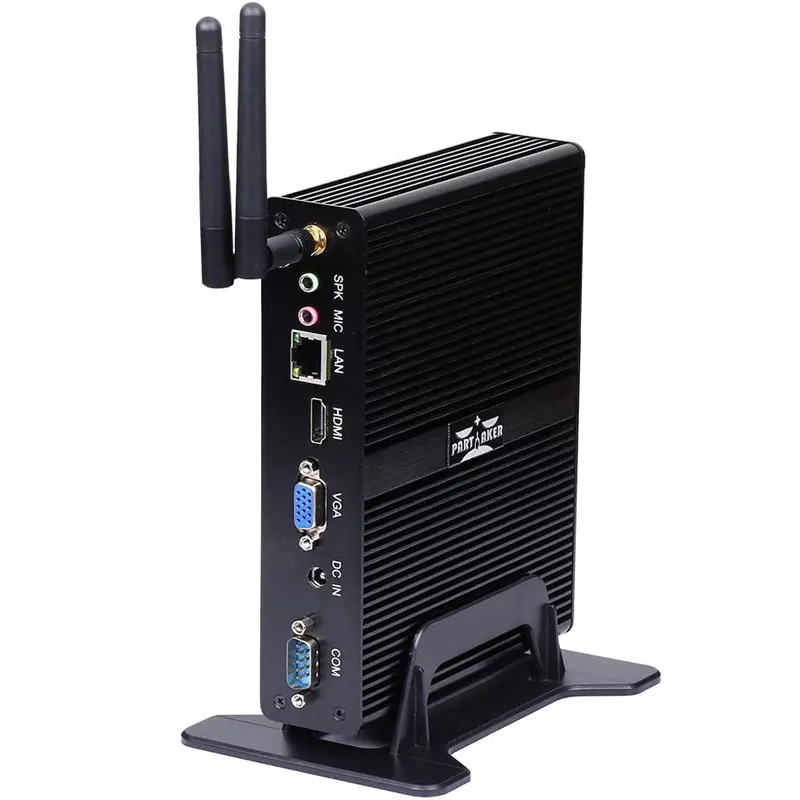

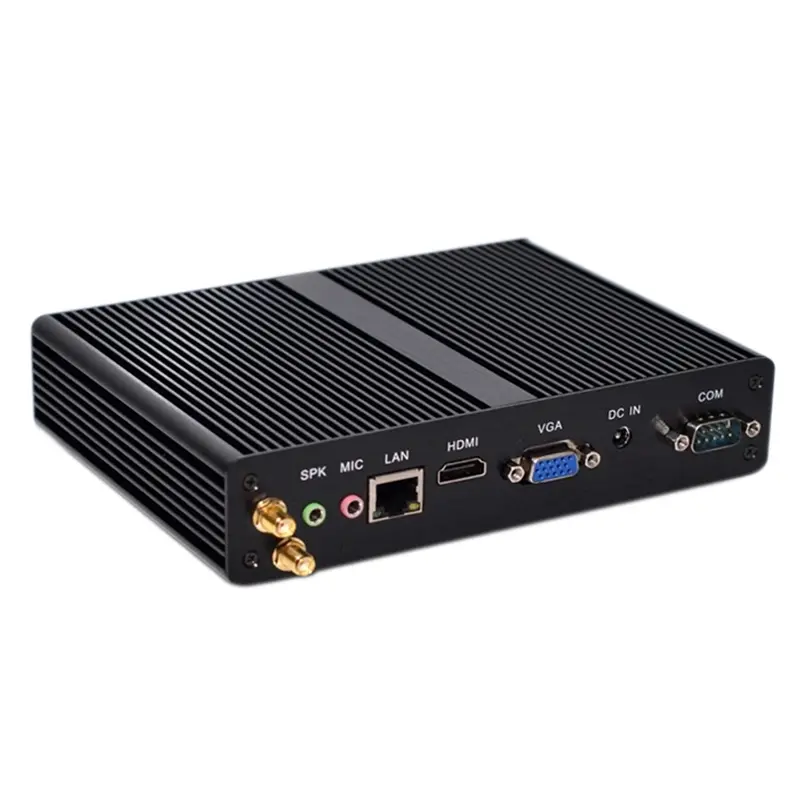

| Rear Panel | 1 x DC_in |
| 1 x COM RS232 | |
| 1 x VGA | |
| 1 x HDMI | |
| 1 x Lan | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A |
| Packing List | P6 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Operating Temperature | 0C~70C Centigrade (32F~140F) |
| Storage Temperature | -20C~80C Centigrade (-68F~176F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
