Q250/B250 Chipset Motherboard for LGA1151

  • 1 VGA Interface and 1 HDMI1.4 Interface,
  • Supports Wake-up On LAN, PXE Function
  • 2 SATA 3.0 Hard Disk Interfaces and 1 MSATA Interface
  • Supports Intel Protocol SSD, Transfer Rate up to 6Gbps
  • 6 RS232 Serial Ports, 2 of them Support RS485/422
  • 2 Intel I211AT Gigabit Network Cards and 2 Intel 8111H Gigabit Network Cards
  • 1 PCIE3.0 x16 slot, Expands the Functionality of the Motherboard
  • Supports Dual Channel 2133/2400/2666MHz Memory, up to 64GB Capacity

Share to:

Overview



A versatile motherboard with Q250/B250 chipset supporting LGA1151 6th-9th Gen Intel® Celeron/Pentium/Core™ i3/i5/i7 processors. Features dual DDR4 slots, Intel HD Graphics, dual Gigabit LAN, extensive I/O ports, and ATX power. Suitable for industrial, office, and gaming applications.



Specifications



Product number ITX-B250R1 VER:1.0/ITX-Q250M1 VER:1.0
processor Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Note: Support 6/7 generation 95W, 8/9 generation only support: 6-core 65W and below CPU, 8-core 35W CPU
chipset Using Intel Q250/B250 Express Chipset
RAM 2*DDR4 DIMM memory slots, support dual-channel 2133/2400/2666MHz memory, maximum support 64GB
Graphic Integrated Intel HD Graphics graphics controller, 1*VGA interface and 1*HDMI1.4 interface
Support single display, dual display mode, extended mode
The internet 2* Intel I211AT Gigabit network card, support wake-up on LAN, PXE function
2* Intel 8111H Gigabit network card, support wake-up on LAN, PXE function
Storage 2*SATA 3.0 hard disk interface, SATA transmission speed up to 6Gbps
1* MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps (default), support WIFI (optional)
Audio Integrated ALC888S high-fidelity audio controller, support Mic, Line ou
Expansion slot 1* PCIE3.0 x16 slot

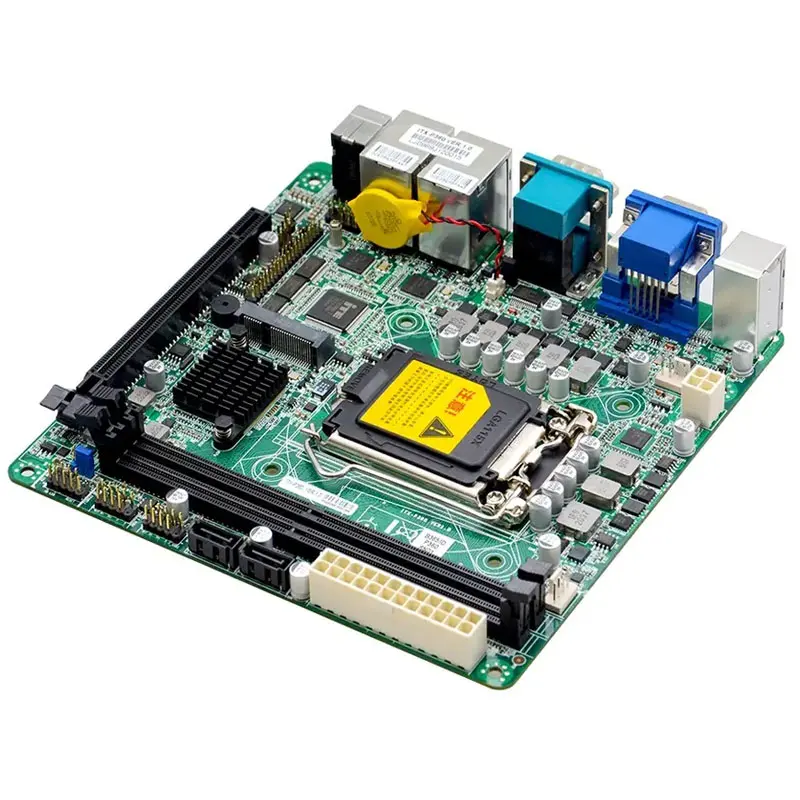

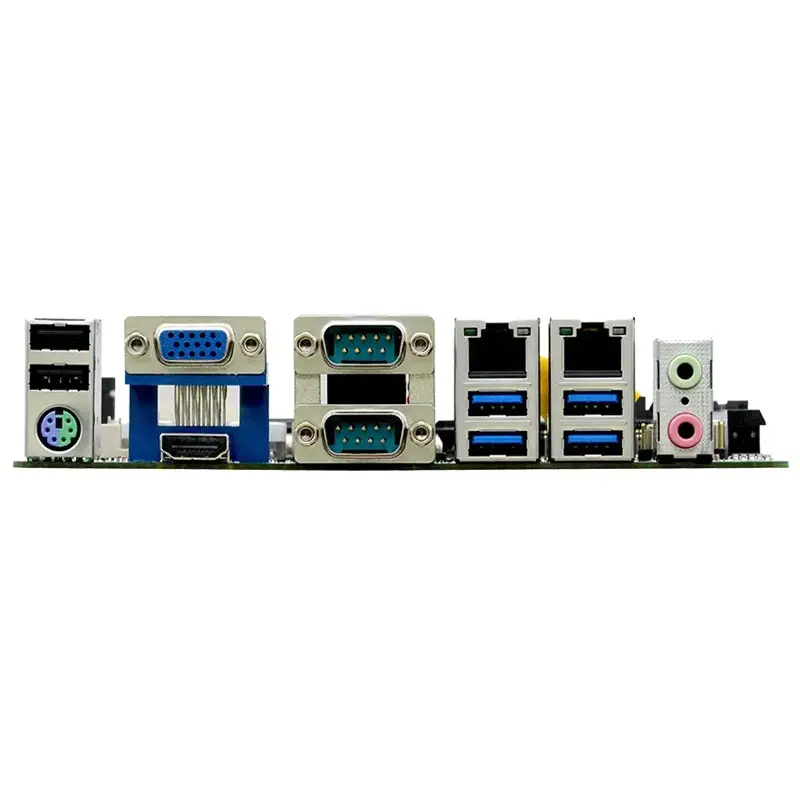

Backplane I/O interface 1*PS/2 keyboard and mouse interface
1*VGA display interface
1*HDMI display interface
2*RS232 serial port (COM1/2 support RS485/422 function)
2*RJ45 Gigabit network interface
2*USB2.0 interface
4*USB3.0 interface
1*Line out interface (green), 1*MIC interface (red)

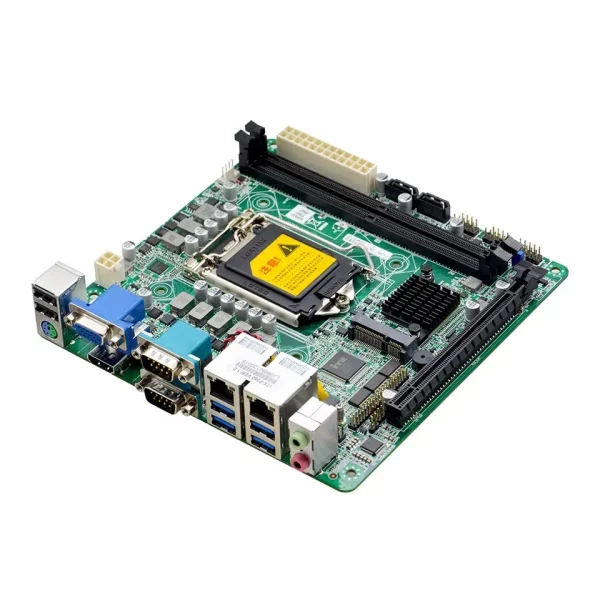

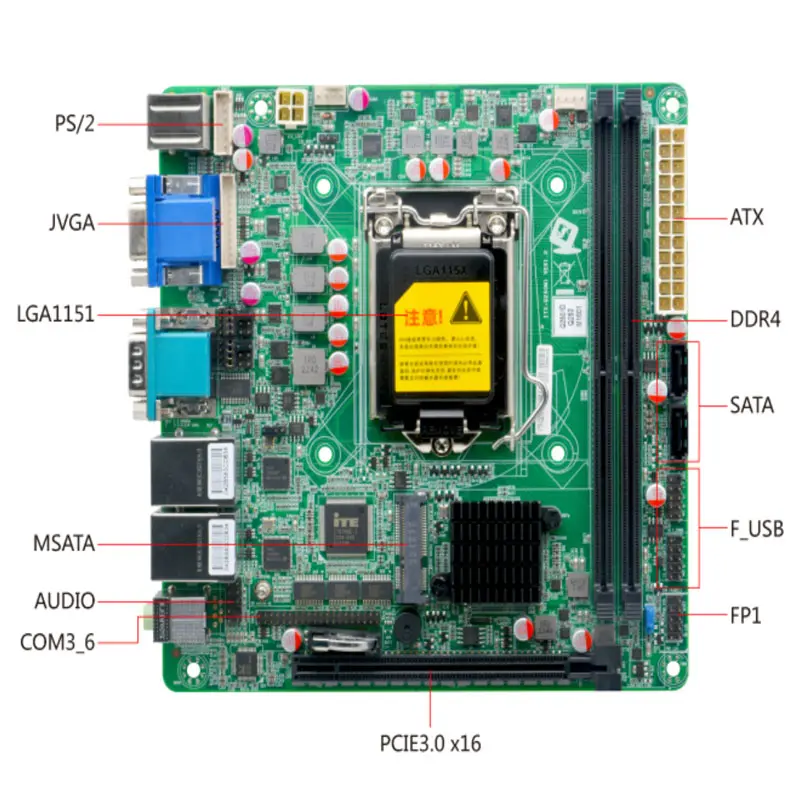

Built-in I/O interface 1*PS/2 keyboard and mouse interface, 1*6Pin header, same signal as UK1
1*JVGA interface, 1*12Pin header, same signal as DB15
4*RS232 serial port, 2*20pin
1*front audio interface, 2*5Pin
4*USB2.0 interface, 2*5Pin
1*front panel function button and indicator light interface, 2*5pin
1*24pin ATX power input interface
1*4pin ATX power input interface
Fan interface 1*4pin CPU fan interface; 1*4pin system fan interface
BIOS ATXMb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 7/Windows 10/Linux
Power type Powered by ATX 24Pin and 4pin power supply
Operating temperature 0℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing

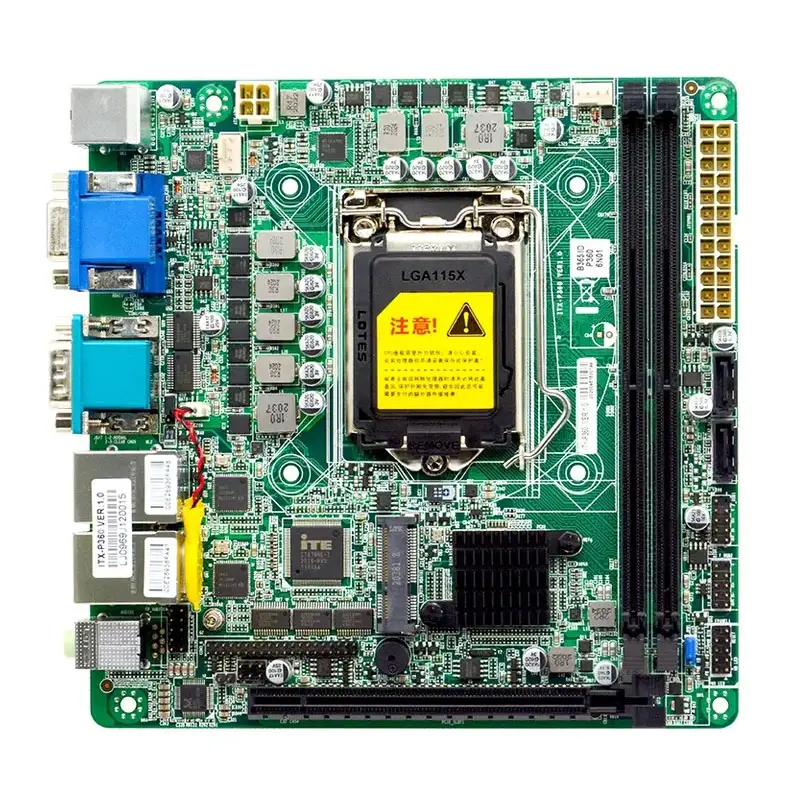

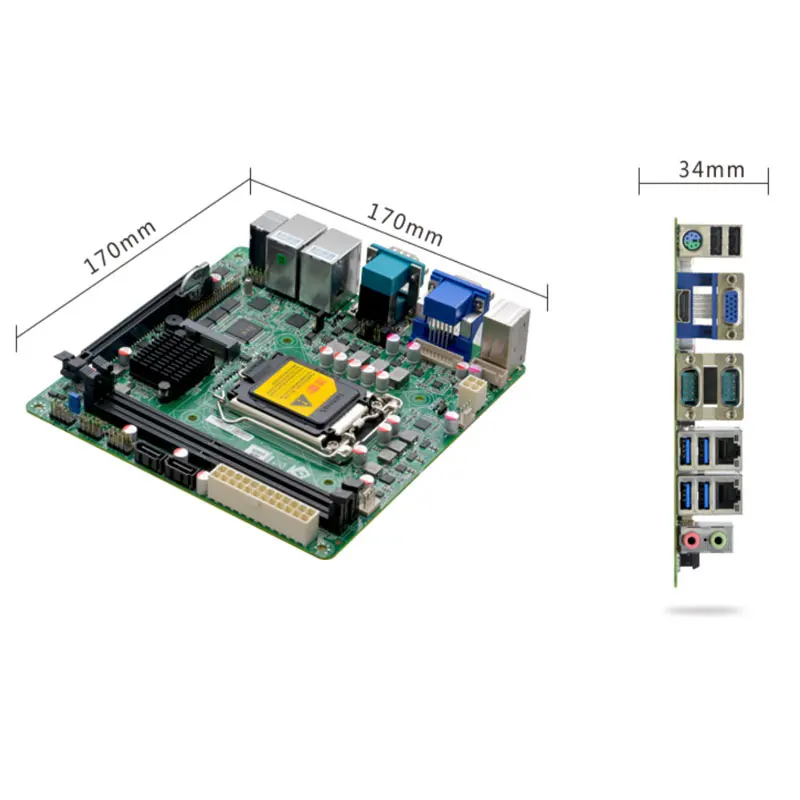

Size 170mm x 170mm

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Southbridge Memory VGA HD OUTPUT LAN USB RS485/RS422 COM Power
ITX-B250R1 VER:1.0 LGA1151 B250 2*DDR4

1

1

2*8111H 10 COM1/COM2 6 ATX

ITX-Q250M1 VER:1.0

LGA1151 Q250 2*DDR4

1

1

2*211AT 10 COM1/COM2 6 ATX
