Overview

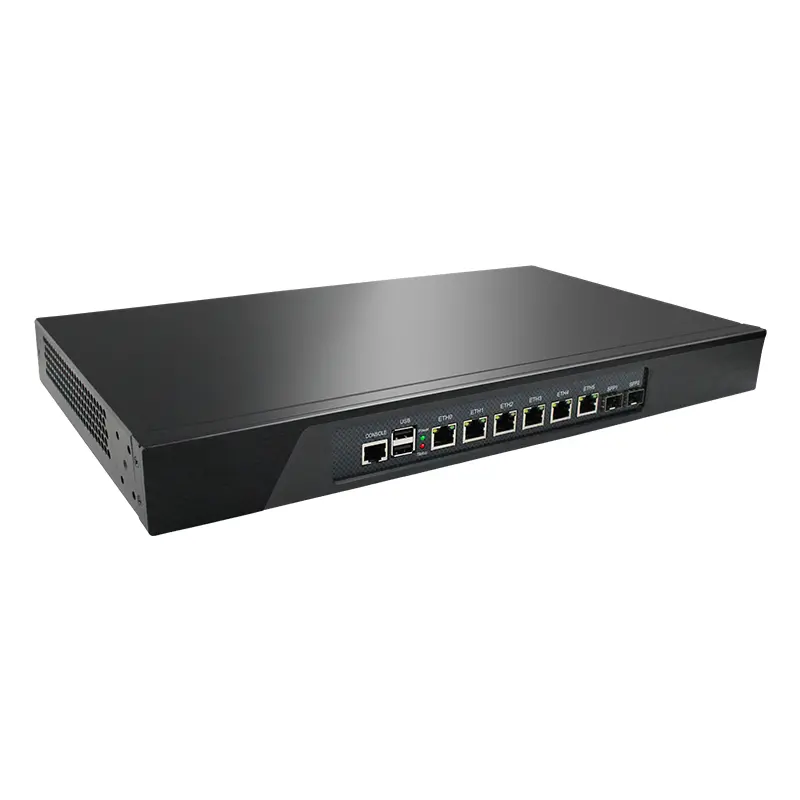

The S06 firewall, constructed with Iron and Aluminum panels, offers versatility in rack, wall, or desktop installation. It supports various Intel processors (Celeron, Pentium, Core i3/i5/i7), 6 Intel 82583V Gigabit network interfaces, and 2 Intel I350 Gigabit optical ports. With expandable memory, storage options, and multiple system support, it ensures efficient functionality across diverse operating environments. Featuring a VGA display, Mini-PCIE slot for optional expansions, and a robust BIOS, this system boasts a stable and reliable design for secure operations, certified under CE, FCC, CCC, and ROHS standards.
Specifications
| Material | Iron, Aluminum panel |
| Colour | Gray |
| Size | 440 x255 x 45(mm)(without mounting ear) |
| Weight | 6.5Kgs |
| Insallation Method | Rack Mounting/Wall Mounting/Desktop Mounting |
| CPU | B75 supports 3th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture |
| Intel Core i3 3220, i5 3470, i7 3770, Xeon E3 1225V2 etc | |
| Network Card | 6 x Intel 82583V Gigabit network interfaces, 2 x Intel I350 Gigabit optical ports |
| Graphic | Depend on CPUs |
| Memory | Support 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB |
| Storage | 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD |
| Display | 1 x VGA |
| Expand | 1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G ) |

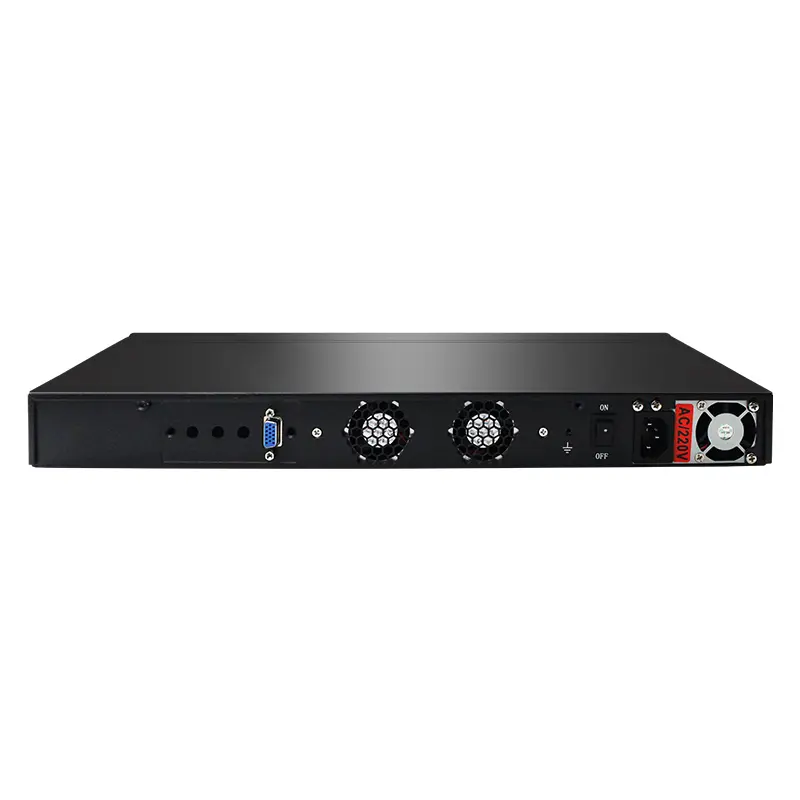

| Front Panel | 1 x VGA |
| 2 x Cooling fan | |
| 1 x Switch | |
| 1 x AC socket | |

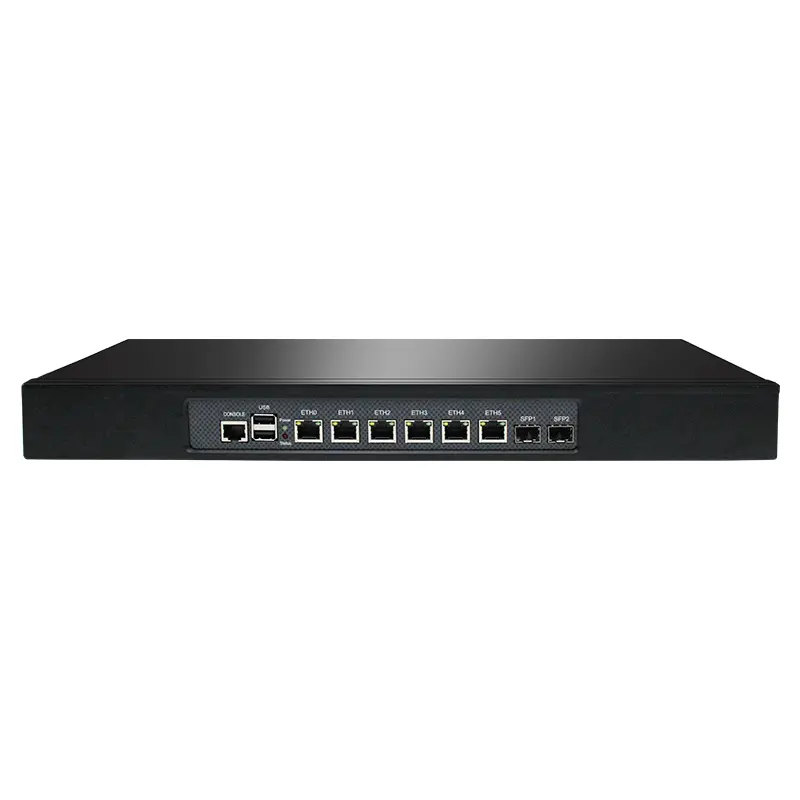

| Rear Panel | 1 x RJ45 serial port (supports Console function) |
| 2 x USB2.0 | |
| 2 x Intel I350 Gigabit optical ports | |
| 6 x LAN | |
| System Support | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux |
| BIOS | AMI EFI BIOS |
| Cooling Mode | With Fan |
| Power Supply | 110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply) |
| Packing List | S06 firewall, power cord, warranty card |
| Operating temperature | -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| ambient temperature | 5~90°C relative humidity, non-condensing |
| Certification | CE, FCC, CCC, ROHS |
