Overview
The S10 firewall is a network device with Intel J1900 CPU, 4 Intel LAN ports, and 1 VGA port. It supports different memory, storage, and OS options. It has 1 MINI PCIE slot and 3 Wifi holes for wireless expansion. It has desktop, wall, and embedded installation methods. It comes with an industrial power supply, a fan cooling system, an AMI EFI BIOS, and a warranty card.
Specifications
| Material | Iron |
| Colour | Silver (any color can be customized) |
| Size | 242 x 173 x 45(mm) |
| Weight | 4Kgs |
| Insallation Method | Desktop type/Wall type/Embedded |
| CPU | Intel Bay Trail Celeron Processor J1900, FCBGA1170, 4 Cores 4 Threads, 2.00 GHz Base Frequency, Burst Frequency 2.42GHz, 2MB |
| Intel Smart Cache, TDP 10W processor.Other available processors: | |
| Intel Celeron/Pentium CPU N2830，J1800，J1900，J2900，N2940 | |
| Intel Atom N2600/D2500 Processor | |
| Network Card | 4 x Intel 82583V/82574L 10/100/1000M lan |
| Graphic | Integrated Intel HD Graphics |
| Memory | 1 x DDR3L 1600MHz SODIMM memory slot, up to 8GB |
| 1 x DDR3 1333 MHz SODIMM memory slot，up to 4GB | |
| 1 x DDR3L 1600 MHz SODIMM memory slot，up to 4GB | |
| 1 x DDR4 2400 MHz SODIMM memory slot，up to 8GB | |
| Storage | 1 x mSATA SSD, 1*SATA3.0 |
| Display | 1 x VGA |
| Expand | Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G) |

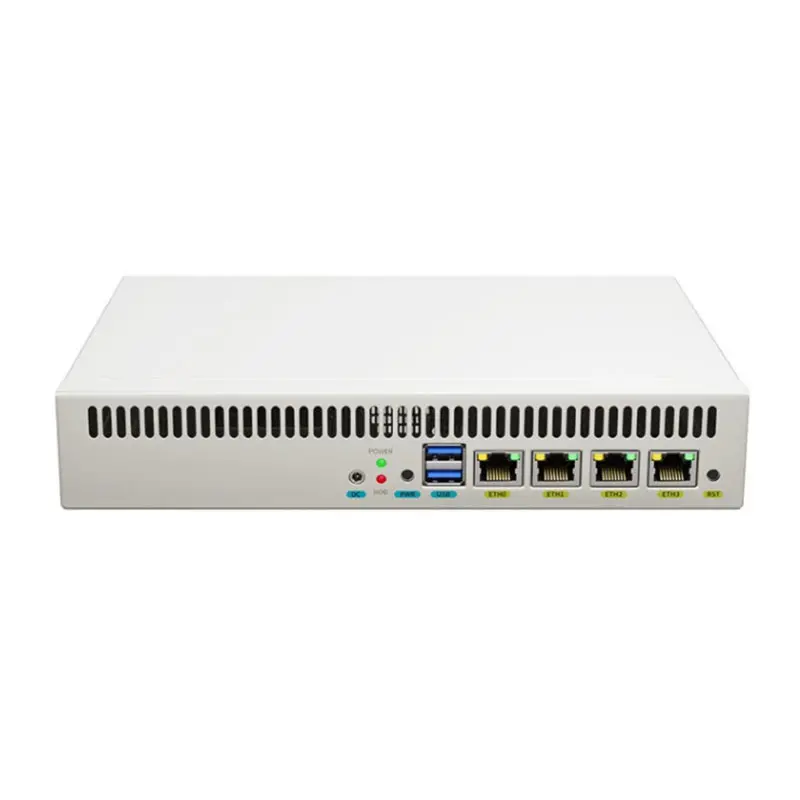

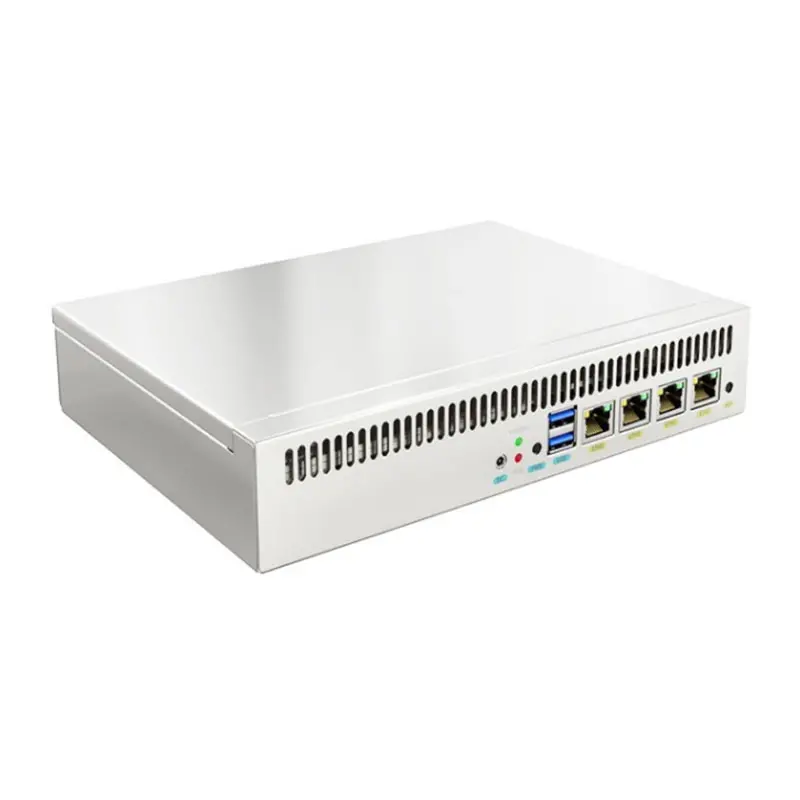

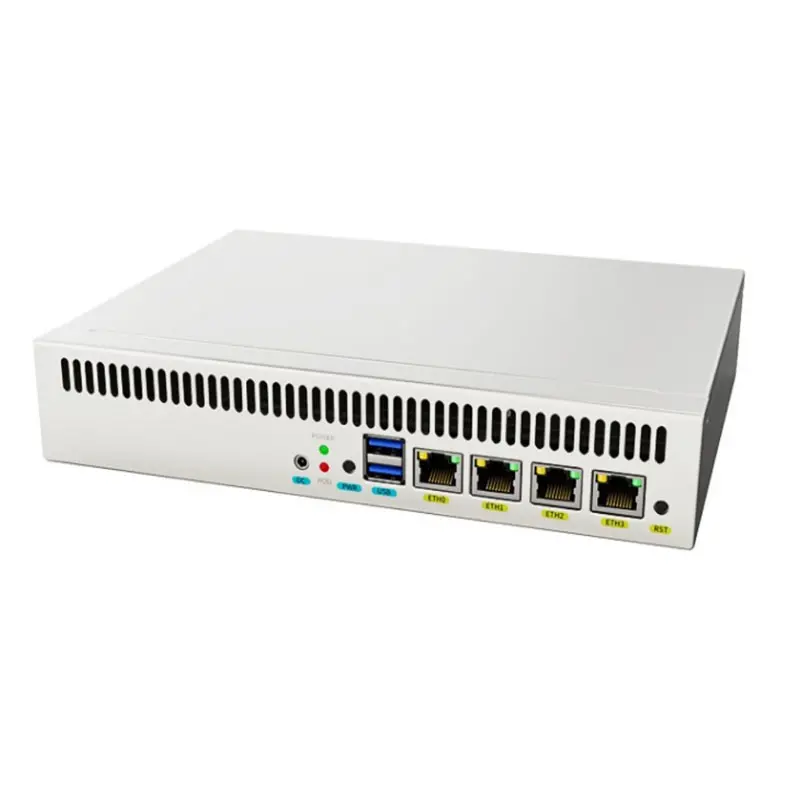

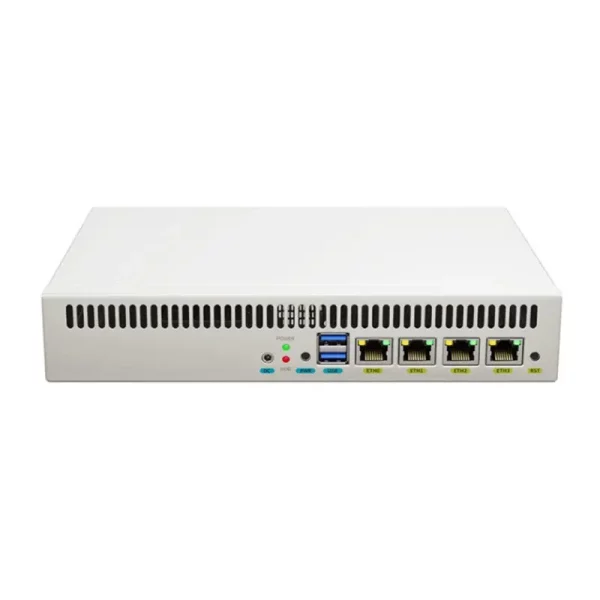

| Front Panel | 1 x DC-IN 12V |
| 1 x Power supply/hard disk light | |
| 1 x PWR | |
| 2 x USB3.0 | |
| 4 x LAN | |
| 1 x RST | |

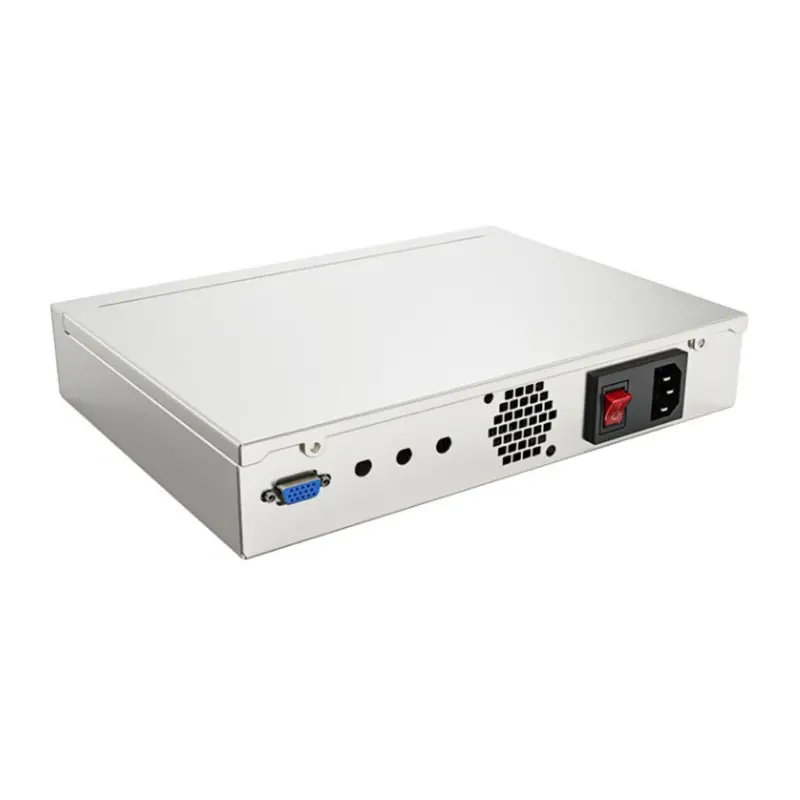

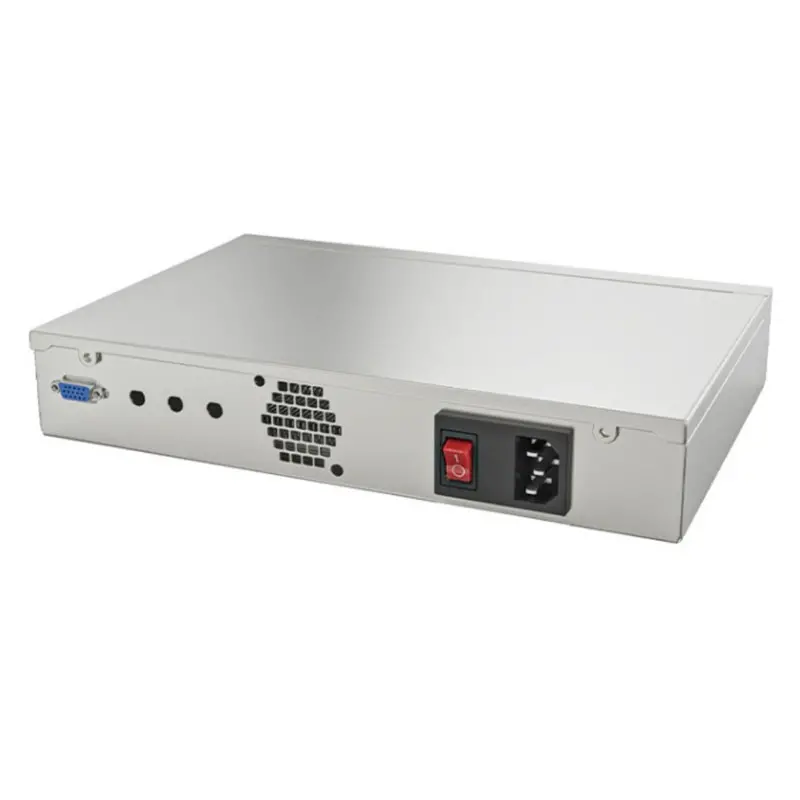

| Rear Panel | 1 x VGA |
| 3 x Wifi Holes | |
| 1 x Power Interface | |
| 1 x Switch | |
| BIOS | AMI EFI BIOS |
| System Support | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux |
| Cooling Mode | With Fan |
| Power Supply | Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A |
| Packing List | S10 firewall, power adapter, power cord, warranty card |
