Overview

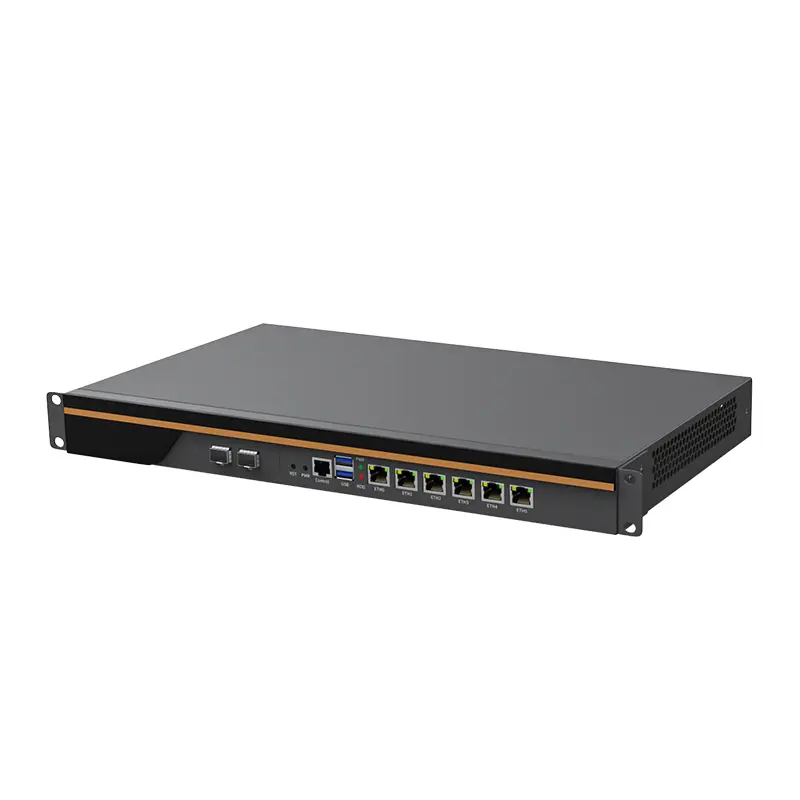

The S11 Firewall is a robust network security system designed for diverse mounting options. Offering various CPU choices and expandable network interfaces, it ensures adaptable configurations for businesses. With firewall, intrusion detection, and VPN capabilities, it provides comprehensive network protection. Its industrial-grade build, extensive OS support, and reliable certifications make it a versatile choice.
Specifications
| Material | Iron, Aluminum panel |
| Colour | Gray |
| Size | 440 x257 x 45(mm)(without mounting ear) |
| Weight | 7.5Kgs |
| Insallation Method | Rack Mounting/Wall Mounting/Desktop Mounting |
| CPU | Intel Core I3-3110M, dual-core dual-thread, main frequency: 2.4GHz |
| (Optional 1005M/I3-2350M/I5-2520M/3320M/I7-3520M/3610M/3630QM) | |
| Network Card | Intel I225 2.5G adaptive network card interface, (optional I226 network card) can be expanded to 2/4 10 Gigabit or 4 Gigabit optical ports |
| Graphic | Depend on CPUs |
| Memory | 1 x DDR3L 1600MHz SODIMM memory slot, maximum support 8GB |
| Storage | 1 mSATA SSD, 1 sata3.0 |
| Display | 1 x VGA, 1 x HDMI (Optional) |
| Expand | Support 2 Mini-PCIE channels (can be WIFI/Bluetooth/4G) Support 1 PCIX8 channel expansion card slot |
| Others | Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog |

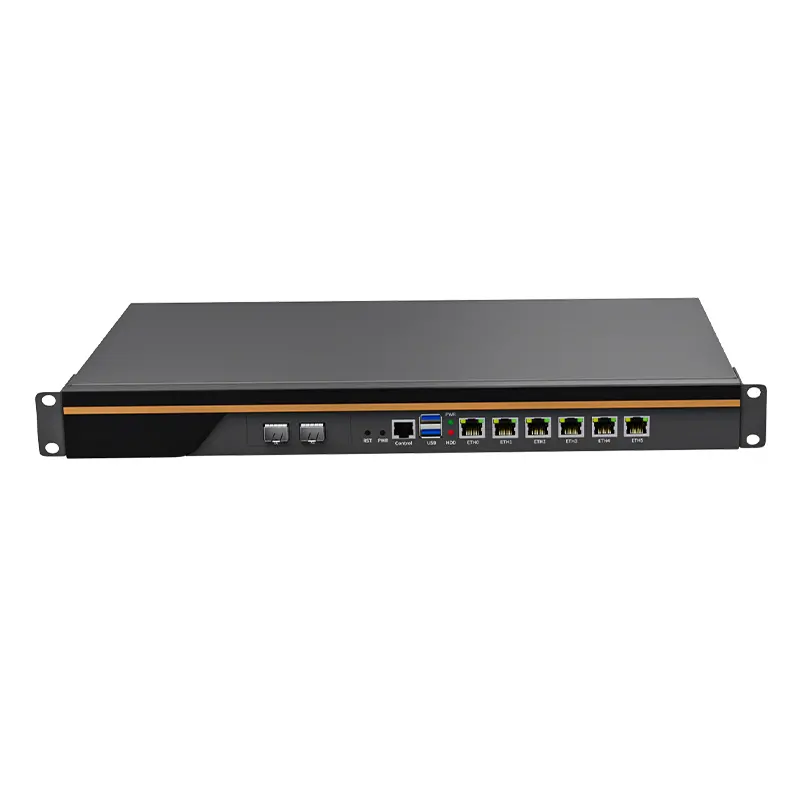

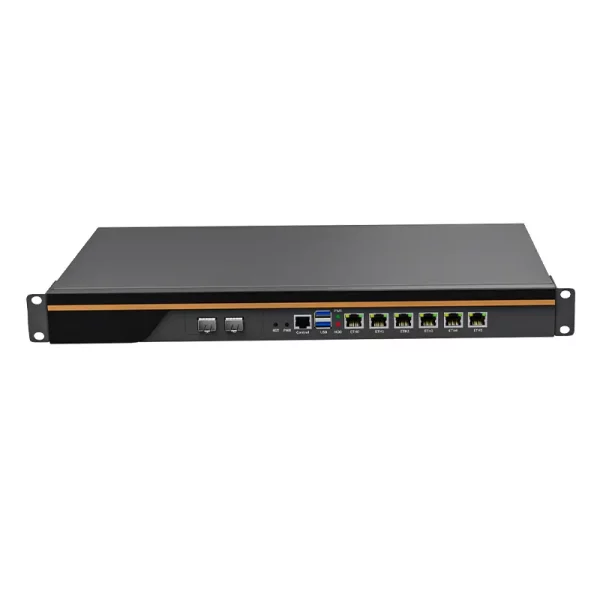

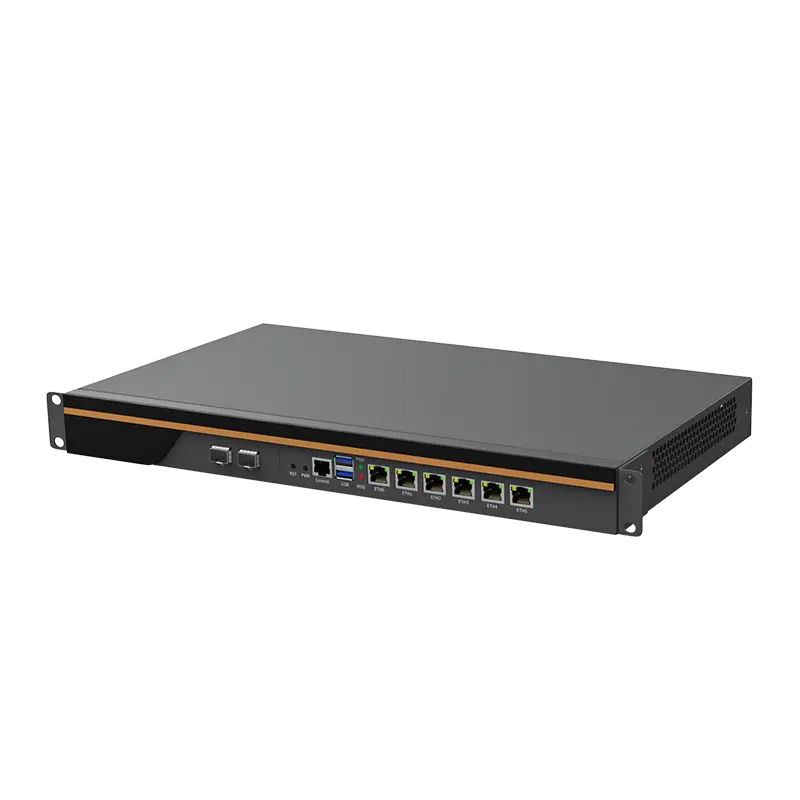

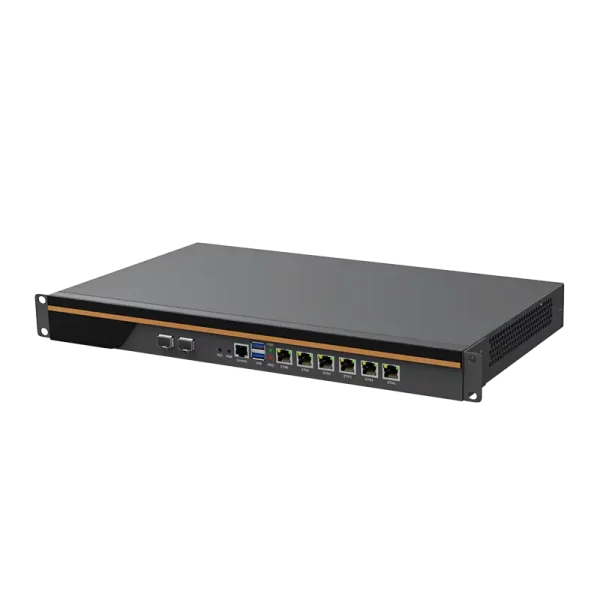

| Front Panel | 1 x VGA |
| 2 x Cooling fan | |
| 1 x Switch | |
| 1 x AC socket | |

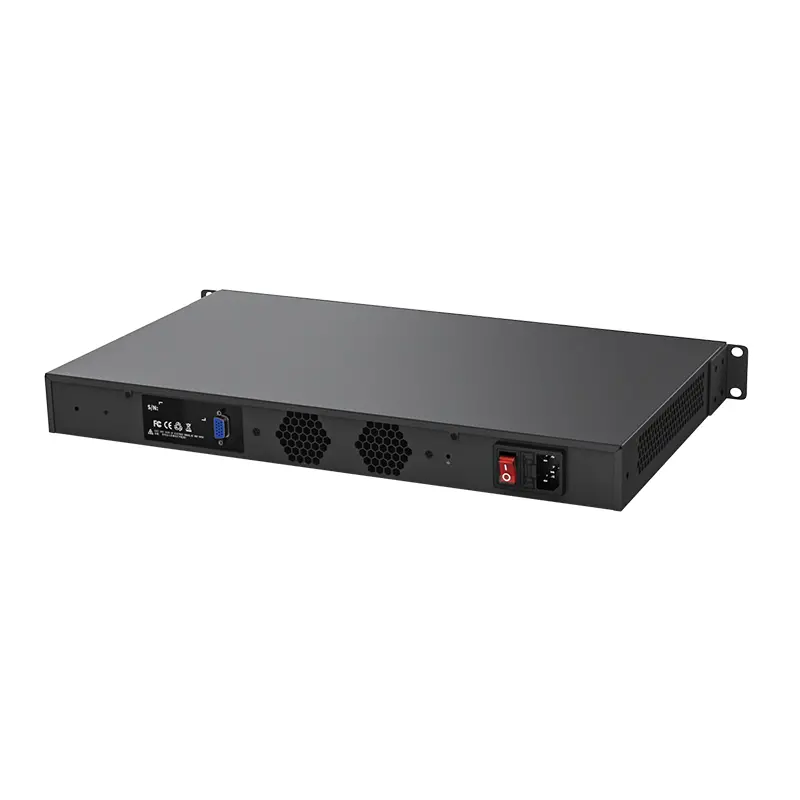

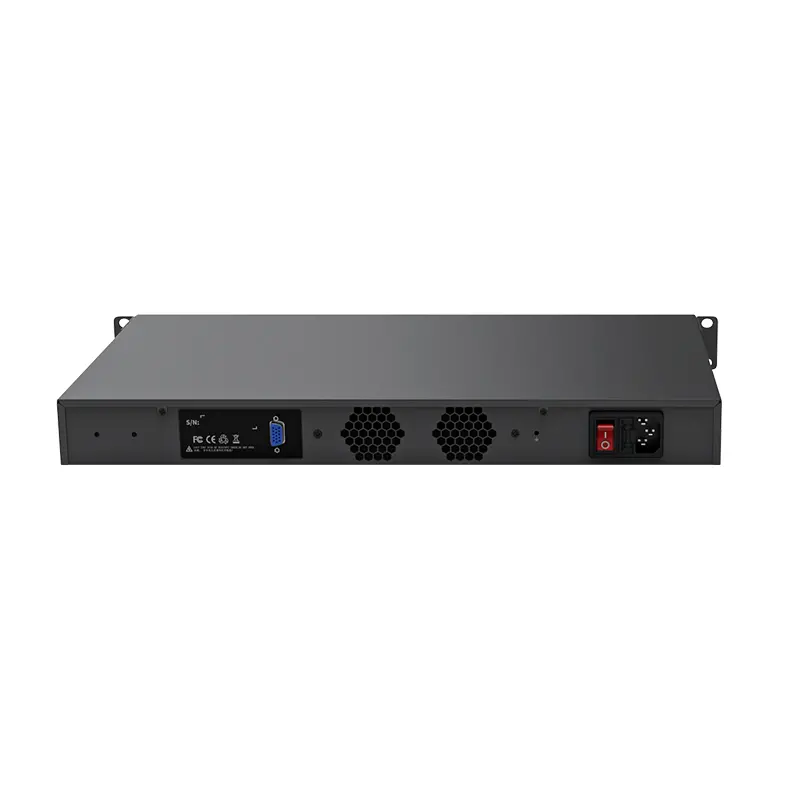

| Rear Panel | 1 x Console |
| 2 x 3.0 | |
| 2 x optical ports (expandable to 4/2 Gigabit or 10 Gigabit optical ports) | |
| 6 x LAN | |
| System Support | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux |
| BIOS | AMI EFI BIOS |
| Cooling Mode | With Fan |
| Power Supply | Industrial grade power supply Taiwan Mean Well LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A |
| Packing List | S11 firewall, power cord, warranty card |
| Operating temperature | -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| ambient temperature | 5~90°C relative humidity, non-condensing |
| Certification | CE, FCC, CCC, ROHS |
