S13 13 Inch 6 LAN Firewall Appliance Support Opnsense

  • Multiple CPU Options for Varied Needs
  • Adaptable Networking Solutions
  • Expandable Memory Slots for Flexibility
  • Versatile Storage Configurations Offered
  • Dual Display Ports for Enhanced Connectivity
  • Support for Mini PCIe for Diverse Connections
  • Remote Boot & Wake Functions Supported
  • Compatible with Various Operating Systems
Send Inquiry
Buy Link

Share to:

Overview



The S13 firewall offers extensive CPU variations, diverse memory slots, adaptable network cards, and various storage options. With VGA and HDMI outputs, versatile expansion ports, booting flexibility, and robust system compatibility, it ensures reliable performance. Enhanced by efficient cooling and a sturdy power supply, it’s a comprehensive solution for diverse setups.



Specifications



Material Iron
Colour Gray

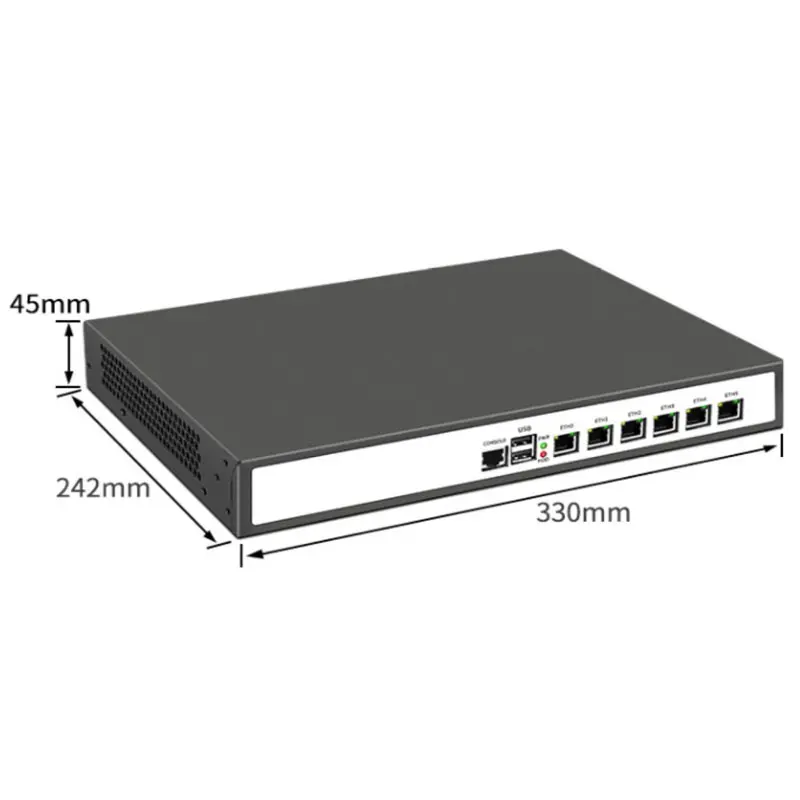

Size 330 x242 x 45(mm)
Weight 5Kgs
Insallation Method Desktop type
CPU Intel Atom D525, dual-core four-thread, main frequency: 1.8GHz
Intel Core i3-3110M, (Optional 1005M/I3-2350M/I5-2520M/3320M/I7-3520M/3610M/3630QM)
Intel Celeron J4125, quad-core and four-thread, main frequency: 2.0GHz(optional N4000)
Intel Celeron N5105, quad-core and four-thread, main frequency: 2.0GHz(optional N5100)
Intel Pentium 4405U (optional 3865U/I3-7100U/8130U/I5-7200U/8250U/I7-7500U/8550U)
Intel Core I3-1115G4 (optional I5-1135G7/I7-1165G7)
Network Card Intel 82583V/82574L/I211 1G adaptive network card interface, (optional I225/226 2.5G network card)(Depend on CPUs)
Graphic Intel HD Graphics
Memory 1 x DDR3 1066/1333 SODIMM Ram Slot, Up to 4GB
1 x DDR3L 1600MHz SODIMM Ram Slot, Up to 8GB
2 x DDR4 2400 MHz SODIMM memory slots, up to 8GB
2 x DDR4 2933 MHz SODIMM memory slots, up to 32GB
2 x DDR4 2133 MHz SODIMM memory slots, up to 64GB
2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB
Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA, 1 x HDMI(Optional)
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog
Front Panel 1 x VGA
1 x Power interface
1 x Switch
Rear Panel 1 x Console
2 x USB2.0/3.0
6 x LAN
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S13 firewall, rack ears, power cord, warranty card



Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S13 D525 Intel® HD Graphics 1.80GHz 1 x VGA 1 x SO-DIMM DDR3, Max 4GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I3 3110M Intel® HD Graphics 4000 2.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 1005M Intel® HD Graphics 1.90GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I5 2520M Intel® HD Graphics 3000 2.5~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I5 3320M Intel® HD Graphics 4000 2.6~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I5 3610ME Intel® HD Graphics 4000 2.7~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I7 3630QM Intel® HD Graphics 4000 2.4~3.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 N5105 Intel® UHD Graphics 2.0~2.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 N5100 Intel® UHD Graphics 1.1~2.80GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 4405U Intel® HD Graphics 510 2.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I3 7100U Intel® HD Graphics 620 2.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I3 8130U Intel® UHD Graphics 620 2.2~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I5 8250U Intel® UHD Graphics 620 1.6~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I7 8550U Intel® UHD Graphics 620 1.8~4.00GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I3 1115G4 Intel® UHD Graphics 1.7~4.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I5 1135G7 Intel® Iris Xe Graphics 2.4~4.20GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
S13 I7 1165G7 Intel® Iris Xe Graphics 1.2~4.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
